Automatic Liquid Bottle Glass Filling Capping And Labeling Line

Application:

Automatic filling line, high filling accuracy, which meets the requirements of different products. Such as juice, honey, fruit jam, olive oil, tomato sauce, syrup, chocolate paste, shampoo, body wash, liquid soap, shampoo, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Bottle Glass Filling Capping And Labeling Line

FEATURES

1.The bottle washing machine can clean the bottles efficiently and thoroughly, avoiding the possible omissions and incompleteness of manual cleaning, and improving the cleanliness.

2. The body is mainly made of high-quality stainless steel, beautiful appearance that is clean and sanitary, and completely meets the food hygiene requirements.

3. It is light and convenient, has strong adaptability, and has a variety of anti-drip filling heads for selection.

4. It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance, and so on.

5. With the anti-dripping function that can control each nozzle separately, filling nozzles can be driven by a servo motor and filled from the bottom of the bottle. We have the 2/4/6/8/10 nozzles filling machine, please send us a message if you need it.

6. Complete set, the whole line is fully automatic, saving labor.

7. Material automatic feeding makes the machine easy to operate.

Automatic Liquid Bottle Glass Filling Capping And Labeling Line

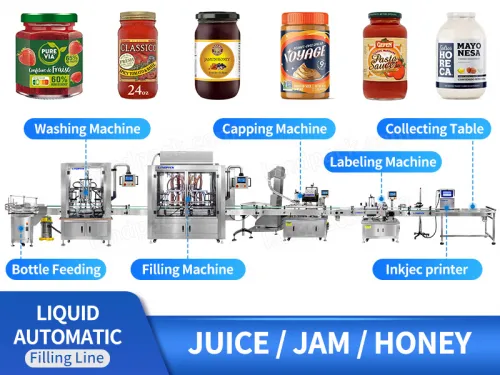

WORKFLOW

Automatic Bottle Feeder

Automatic Bottle Washing

Automatic Filling Machine

Automatic Capping Machine

Automatic Labeling Machine

Automatic Inkject Date Printer

PARAMETER

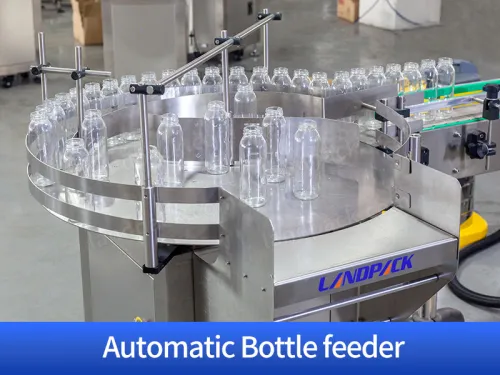

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

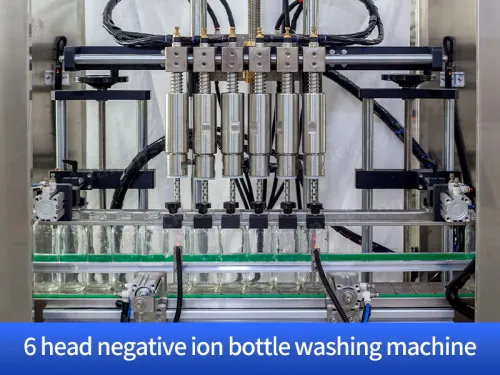

Automatic bottle washing machine
Washing head	4 Heads(can be customized)	6 Heads(can be customized)	8 Heads(can be customized)
Bottle diameter	30-130mm(customized)	30-130mm(customized)	30-130mm(customized)
Washing way	negative ions	negative ions	negative ions
Washing speed	14-24bottles pet mintue	25-35bottles pet mintue	36-46bottles pet mintue
Machine body	SS 304	SS 304	SS 304
Machine voltage	220V(can be customized) 3.5KW	220V(can be customized) 3.5KW	220V(can be customized) 3.5KW
Machine weight	580kg	680kg	780kg
Machine size(LWH)	200010001800mm	200015001800mm	200020001800mm

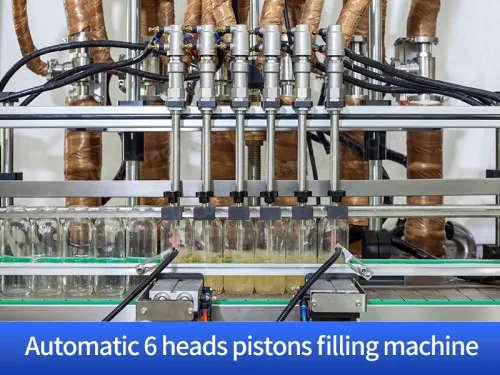

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

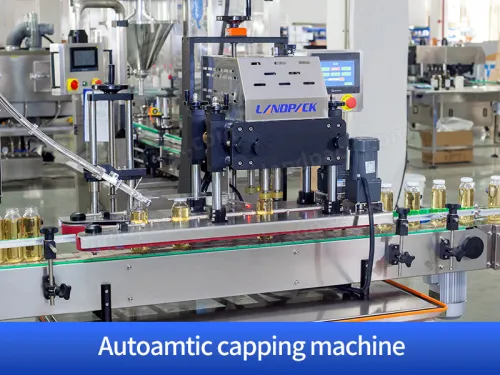

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

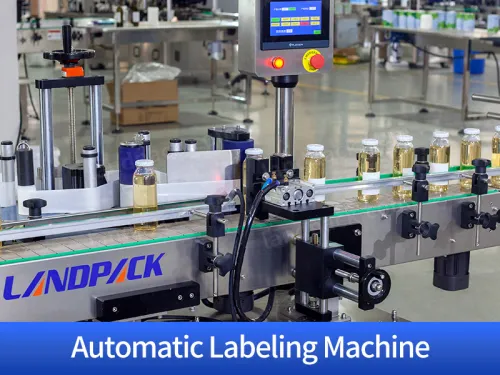

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

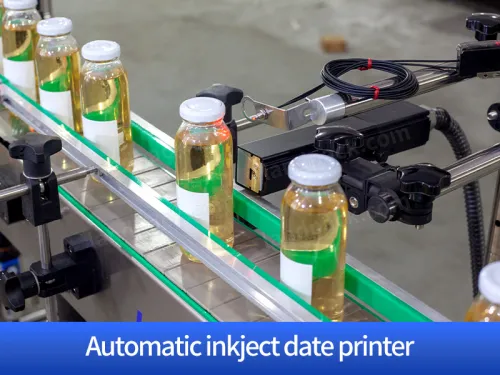

			coding machine
			Printing speed	1024 seconds(5×7)
			Power	220V/50HZ,150VA
			Printing direction	Positive sequence/reverse order/reverse/reverse
			Printing distance	The nozzle and the object to be sprayed are kept within 3cm
			Store information	The system can store 1000 print information
			Ink consumption	70 million words per print(5X7)
			Machine weight	18kg
