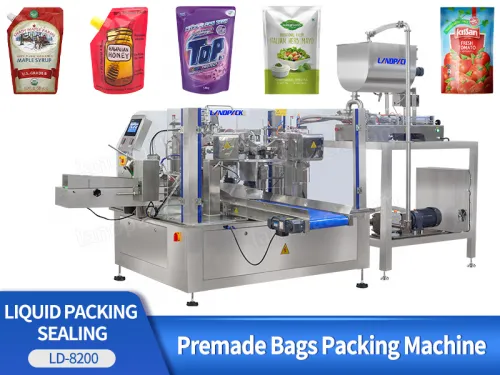

Automatic Liquid Doypack Rotary Pouch Packing Machine For Premade Zipper Stand Up Pouch

Introduction:

The Landpack automatic liquid stand pouch zipper pouch premade pouch packing machine is versatile for packaging a variety of liquid products. It is ideal for items such as hand sanitizer, detergent, fruit juices, soy sauce, ketchup, honey, and beverages. Additionally, it can handle thicker liquids like chili sauce, sunflower oil, tomato sauce, peanut butter, jam, laundry detergent, and bean sauce.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Doypack Rotary Pouch Packing Machine For Premade Zipper Stand Up Pouch

FEATURES

1. Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..

3. Automatic checking system can check bag situation, filling and sealing situation.

4. The system shows: no bag feeding, no bag opening/opening error, no filling and no sealing.

5. Modular heating, temperature control more accurate, heating fault have alarm prompt.

6. Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quaity and grade of the product.

Automatic Liquid Doypack Rotary Pouch Packing Machine For Premade Zipper Stand Up Pouch

WORKFLOW

Piston Metering Device

Horizontal Bags Feeding

Date Printing

Zip Lock Openning

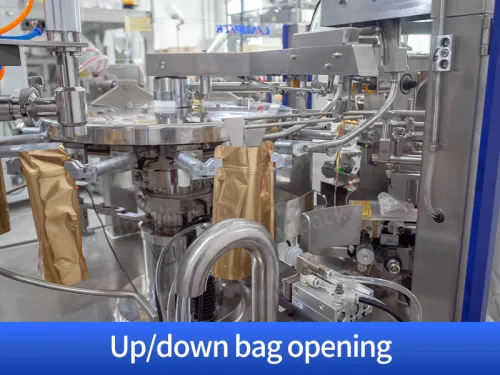

Up/Down Bag Opening

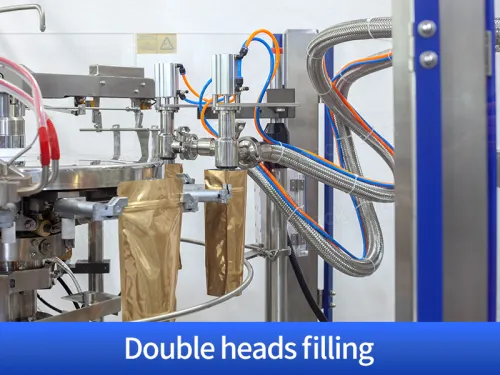

Double Heads Filling

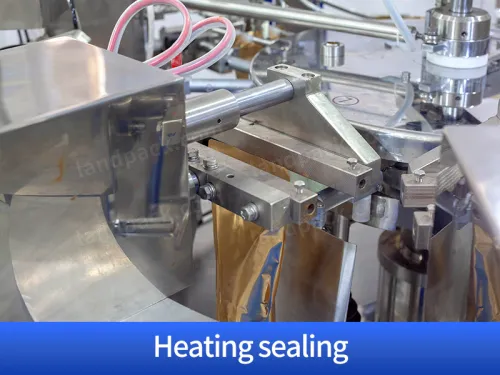

Twice Heating Sealing

Finished Product Ouput

PARAMETER

			Rotary Pesticide Premade Pouch Packing Machine
			Model	LD-8200LS/ 8240LS/ 8300LS
			Bag Size	W: 100-300mm L: 100-450mm
			Filling Volume	10-2500g (Depending on type of products)
			Capacity	25-60 bags/min (The speed depends on type of products and packaging material used)
			Package Accuracy	Error≤±1%
			Compress Air Requirement	≥0.8m³/min supply by user
