Automatic Liquid Filling Line Machine With Coding Capping Labeling Machine

Application:

Automatic liquid filling line it is suitable for filling liquids and pastes of various industries. Such as hand sanitizer, disinfectant, shampoo, potato sauce, chiili sauce, setergent, syrup, olive oi, pesticide, toilet cleaner, dish soap, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Filling Line Machine With Coding Capping Labeling Machine

FEATURES

1.This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability and good stability, and is well received by users;

2.This line uses automatic bottle feeding, 4-head servo piston filling machine, coding machine, elevator automatic capping, servo screw cap, wafer positioning round bottle labeling machine, and bottle collection to form a fully automated production line;

3.The filling machine uses food-specific hoses and does not contain plasticizers, which is suitable for medicine, food and other industries;

4.The capping machine uses a manipulator to grasp the cap, press the cap, and control the capping torque through a servo motor to achieve the capping effect;

5.This type of capping machine has uniform force for capping, easy to adjust the force, and it is not easy to wear the cap;

6.The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene;

7.This kind of production line is relatively advanced, and can be improved according to the different requirements of customers, and can be made into equipment that fully meets the needs of customers. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic.

Automatic Liquid Filling Line Machine With Coding Capping Labeling Machine

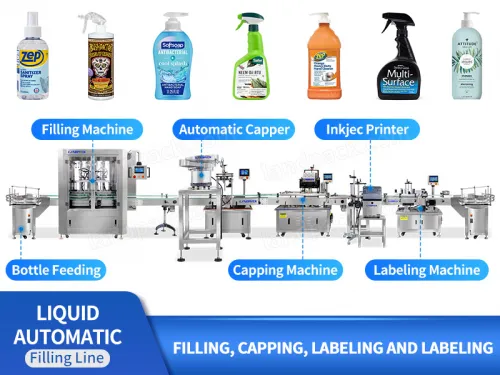

WORKFLOW

Automatic Bottle Feeder

Automatic Bottle Liquid Filling

Automatic Bottle Capper

Automatic Bottle Capping

Automatic Bottle Labeling

Automatic Inkjet Printer

PARAMETER

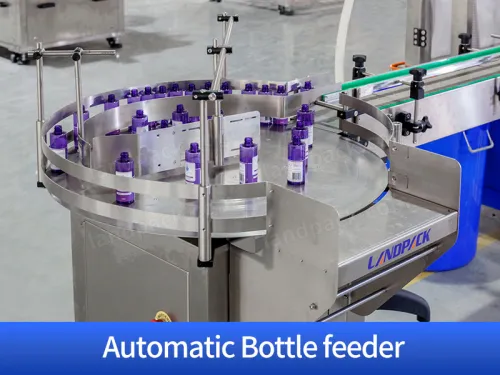

			Automatic Bottle feeder
			Machine Model	LD-LFL800
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

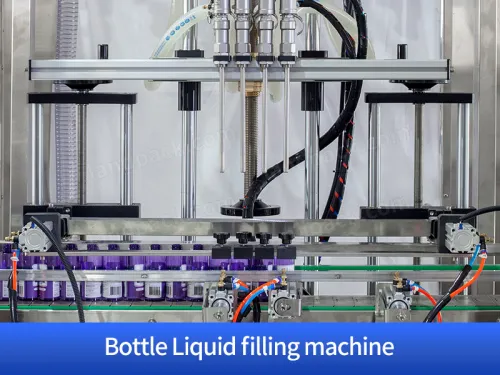

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min
Measurement Accuracy	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

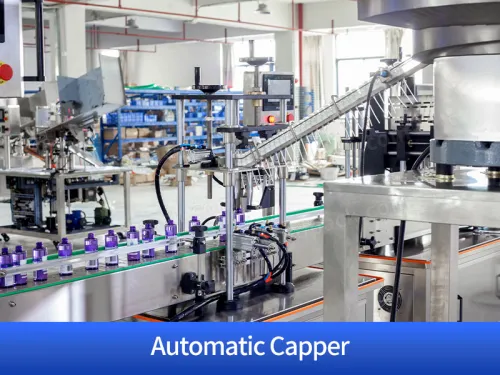

			Automatic Capper
			Machine model	LD-LP445
			Voltage	220V
			Capacity	5-25 Bottle/Min(based on bottle and cap size)
			Air pressure	0.6-0.8Mpa
			Suitable bottles	Customize according to sample
			Capping way	Servo drive screw capping
			Machine size	About 29009502000mm
			Packaging weight	About 600kg(machine),316kg(Vibratory bowl sorter)

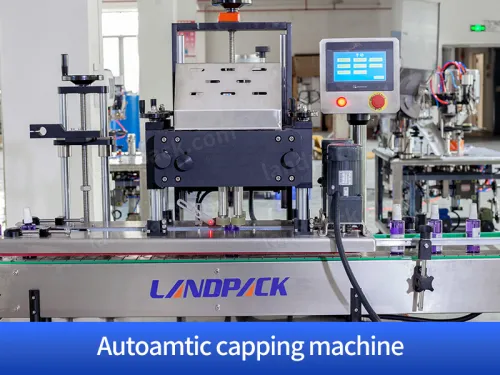

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

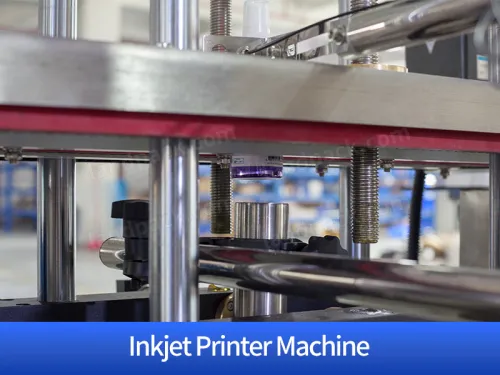

			Inkjet Printer Machine
			Power supply	220V 60Hz
			Printing speed	1024 seconds (5*7)
			Printing materials	paper,plastic products,pipes,food bags,metal,glass, paper cups,etc.
			Store information	The system can store 1000 print information
			Machine size	length 370mm width 260mm height 500mm
			Ink consumption	70 million words per print (5*7)
			Machine weight	21kg
			Package size	560350570mm

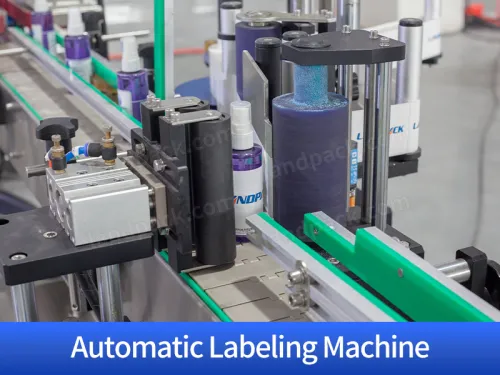

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
