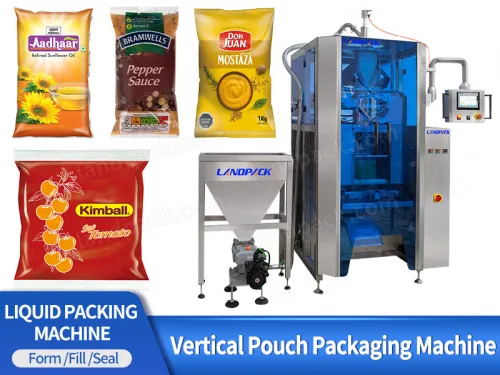

Automatic Liquid Vertical Pouch Packaging Machine

Introduction:

The automatic liquid filling pouch packing machine models LD-420L, LD-520L, and LD-720L are designed for efficiently packaging a wide array of liquid products. These include condiments like ketchup and salad dressing, as well as other liquids such as soy sauce, olive oil, water, fruit juices, milk, and honey, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Vertical Pouch Packaging Machine

FEATURES

1. Products dosing, Filling, Laminate heat sealable pouch making and sealing.

2. Stainless steel 304 structure and surface.

3. Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.

4. Simple changing of pouch former, to adapt different pouch size requirement.

5. Intelligent temperature controlling configuration, ensure the artistic and neat sealing.

6. Configure with packaging film pre-pulling device, to enable stable pouch making.

7. No film no filling, and easy to change the packaging film.

Automatic Liquid Vertical Pouch Packaging Machine

WORKFLOW

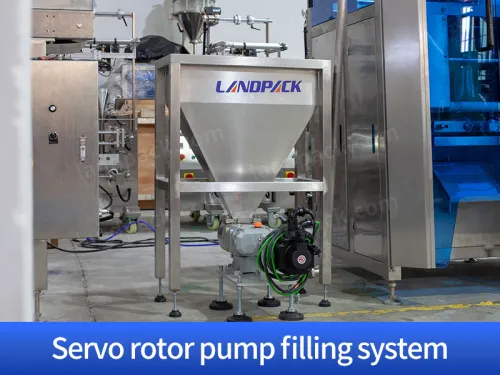

Servo Rotor Pump Filling

Form Structur

Filling

Sealing

PARAMETER

Automatic Liquid Vertical Packing Machine
Type	LD-420L	LD-520L	LD-720L
Film width	Max.420MM	Max.520MM	Max.720MM
Bag length	80-300MM	80-350MM	180-350MM
Bag width	60-200MM	100-250MM	100-500MM
Film thickness	0.04-0.08 MM	0.04-0.12MM	0.04-0.12MM
Packaging rate	5-60Bag/Min	5-60Bag/Min	5-55Bag/Min
Range of measurement	150-1500ml	2000ml	4000ml
Machine size	121710151343MM	148810801490MM	178013502050MM
Machine quality	650KG	680KG	750KG
Power	220V 50/60Hz 2KW	220V 50/60Hz 3KW	220V 3KW
