Automatic Liquid Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Automatic Liquid Packing Filling Machine / Line > Automatic Multi Track Liquid Sachet Packing Machine With Counting Machine

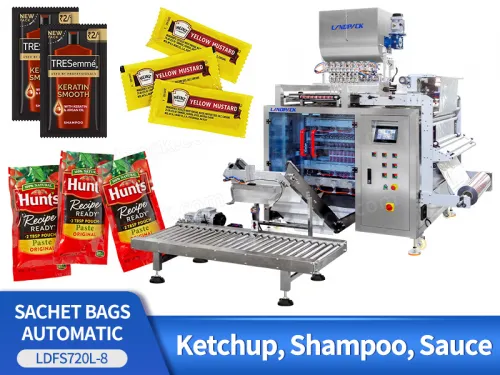

Automatic Multi Track Liquid Sachet Packing Machine With Counting Machine

Introduction:

The Landpack automatic liquid sachet pouch packing machine offers versatility in packaging a wide range of liquid products. It is perfect for items like hand sanitizer, detergent, fruit juices, soy sauce, ketchup, honey, and various beverages.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

The Landpack automatic liquid sachet pouch packing machine offers versatility in packaging a wide range of liquid products. It is perfect for items like hand sanitizer, detergent, fruit juices, soy sauce, ketchup, honey, and various beverages.

Automatic Multi Track Liquid Sachet Packing Machine With Counting Machine

FEATURES

1. Automatically performs tasks such as measuring, bag making, filling, sealing, batch number printing, cutting, and counting.

2. Features an automatic slitting film system for simultaneous multi-line row and bag sealing.

3. Equipped with a servo film running system and pneumatic control for horizontal sealing, ensuring precise positioning, excellent performance, and visually appealing packaging.

4. The dual light source photoelectric detection system offers stability and reliability, ensuring the packaging bag's integrity.

5. Intelligent PLC control system ensures stable machine operation, with easy and fast operation.

6. Multiple automatic alarm protection functions effectively minimize material loss and enhance work safety.

Automatic Multi Track Liquid Sachet Packing Machine With Counting Machine

WORKFLOW

01

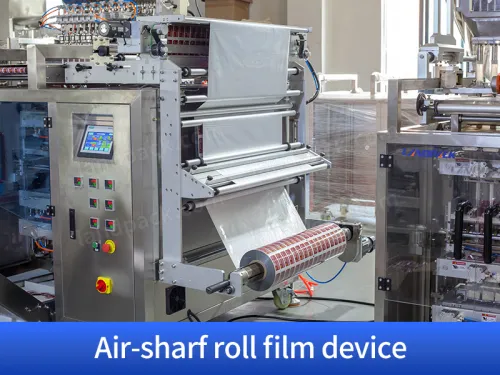

Film Unwinding

02

Film Slitting

03

Bag Formation

04

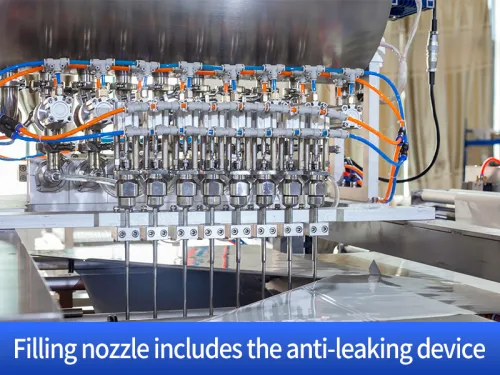

Liquid Filling

05

Sealing

06

Cutting

07

Batch Coding

08

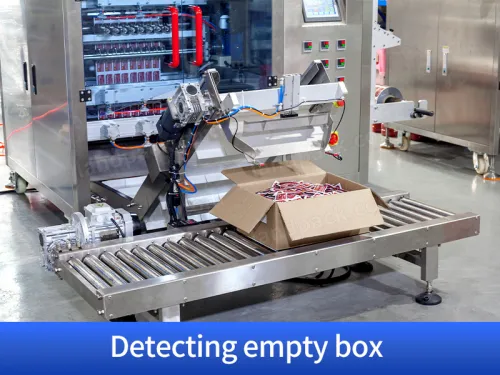

Counting

PARAMETER

Automatic Multi Track Liquid Sachet Packing Machine With Counting MachineModelLDFS-720L
Production capacityMax. 400 bags/min
Diameter of the film rollMaximum 300mm
Packaging film widthThe widest 720 mm
Outer bag sizeL: 45-120mm; W: 35-90mm
Air pressure0.5-0.7Mpa
Machine noiseLess than 80db(A)decibel
Heating power4.1 Kw
Weight400KG
Size1153mm*1654mm*1750mm



Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
