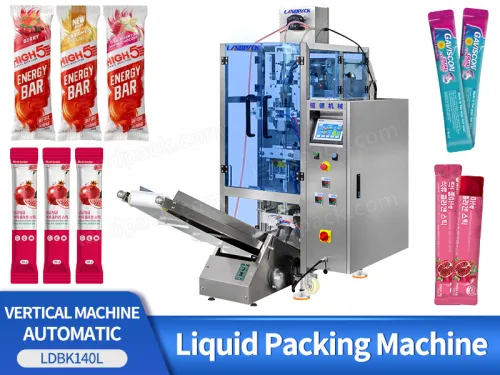

Automatic Single Lane Stick Bag Liquid Packing Machine With Coding Machine

Introduction:

This machine is capable of automatically packaging various liquids, powders, and granules, such as energy gels, creams, honey, and pastes, commonly used in the chemical, pharmaceutical, and food industries.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Single Lane Stick Bag Liquid Packing Machine With Coding Machine

FEATURES

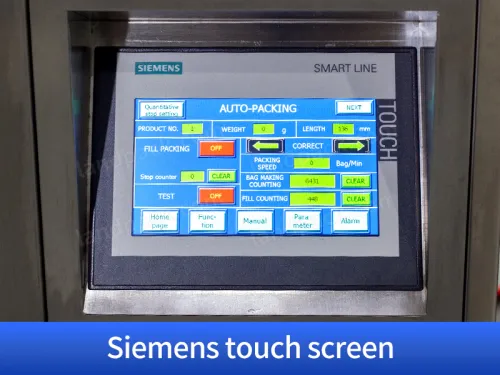

1. Siemens touch screen for easy operation with a single button to adjust speed.

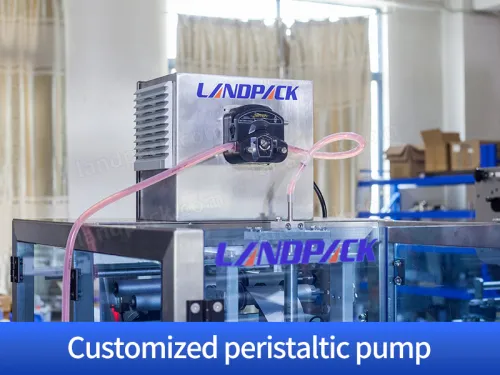

2. Customized peristaltic pump provides precise liquid metering.

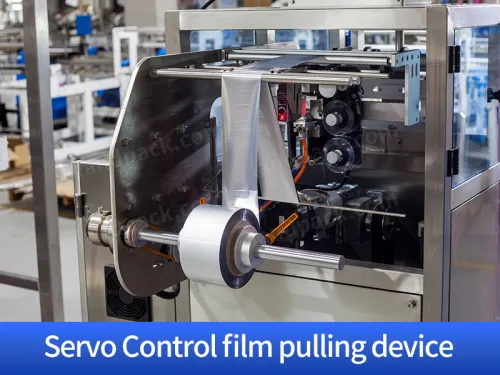

3. Servo-controlled reciprocating film pulling ensures smooth sealing without wrinkles.

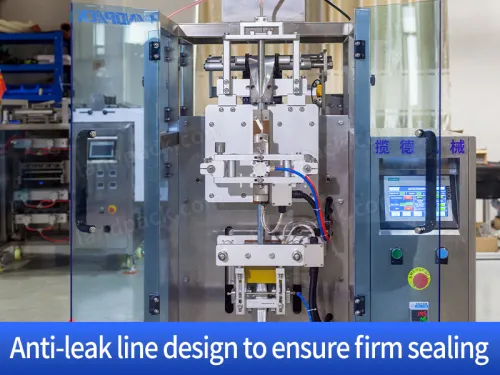

4. Anti-leak line added to the top seal for secure and firm sealing performance.

5. Rounded corner design creates an elegant curvature for the bag.

Automatic Single Lane Stick Bag Liquid Packing Machine With Coding Machine

WORKFLOW

Film Unwinding

Film Slitting

Bag Formation

Liquid Filling

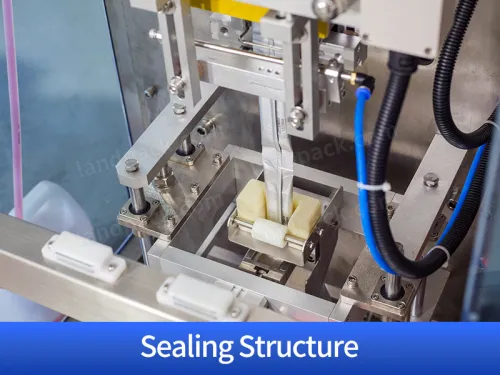

Sealing

Cutting

Batch Coding

PARAMETER

	Name	Landpack Single Lane Stick Pack Machine
	Model	LDBK-140L
	Dosing Method	A: Piston pump 1-30ml; B: Piston pump 2-42ml; C: Magnetic pump 3Liter/min (for pure liquid or oil product)
	Hopper type	A: Single layer SS304 hopper; B: Double jacket SS304 hopper; C: Magnetic pump hose connection to raw liquid tank
	Packing speed	20-45 bag/min (1200-2700bag/min)
	Bag size range	L 40-150mm ; W 15-100mm
	Bag Seal type	Stick /pillow
	Cut type	A: Teeth cut; B: Straight cut C: Round cut D: Irregular cut (Stick Width within 40mm)
	Film thickness	0.05-0.1mm
	Film material	Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper
	Drive method	Electricity + Pneumatic
	Control style	PLC control system+English/Chinese screen (Or customized panel)
	Power	1.8KW
	Power supply	AC220V 1phase 50Hz/ AC380V 3phases 50Hz
	Air consumption	0.4cbm/min 0.8Mpa
	Dimension	750x710x1780 mm
