Automatic Liquid Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Automatic Liquid Packing Filling Machine / Line > Multifunction Liquid Sauce Sided Seal Sachet Packing Machine

Multifunction Liquid Sauce Sided Seal Sachet Packing Machine

Introduction:

This machine is designed for side-sealing of a range of conventional liquid products, including soy sauce, ketchup, chili sauce, shampoo, chocolate sauce, laundry detergent, peanut butter, honey, vitamin-infused waters, fruit juice beverages, and oils.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This machine is designed for side-sealing of a range of conventional liquid products, including soy sauce, ketchup, chili sauce, shampoo, chocolate sauce, laundry detergent, peanut butter, honey, vitamin-infused waters, fruit juice beverages, and oils.

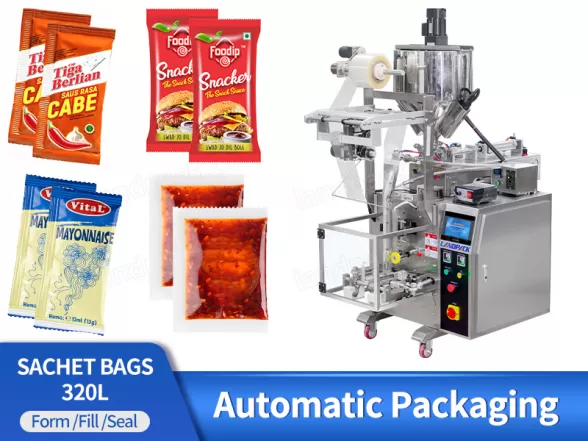

Multifunction Liquid Sauce Sided Seal Sachet Packing Machine

FEATURES

1. LD-320L High-Temperature Chocolate Sauce Filling Machine: Designed for high-temperature chocolate sauce applications.

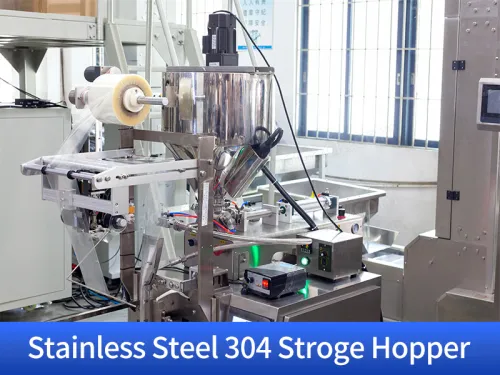

2. Stainless Steel 304 Storage Hopper: Durable and resistant to corrosion.

3. Thermal and Stirring Device: Maintains chocolate sauce temperature and consistency.

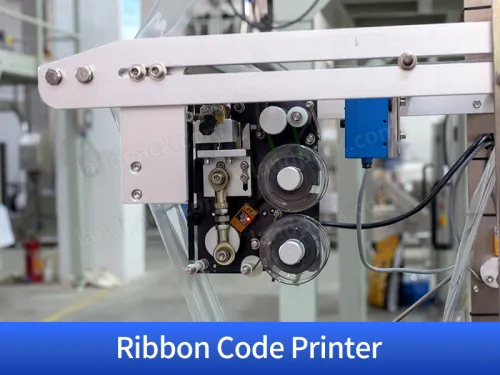

4. Ribbon Code Printer: Prints product information directly on packaging.

5. Food-Grade High-Temperature Durable Tube: Ensures safe and reliable transfer of chocolate sauce.

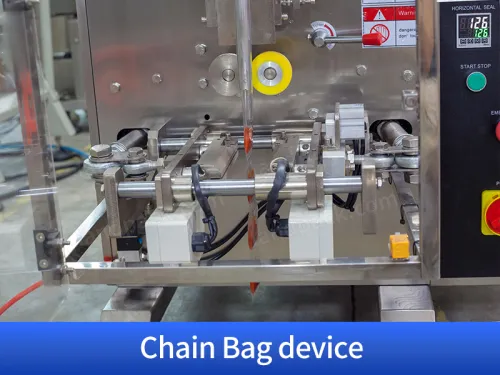

6. Chain Bag Device: Allows flexible adjustment of bag quantities.

7. Protective Cover: Ensures worker safety during operation.

Multifunction Liquid Sauce Sided Seal Sachet Packing Machine

WORKFLOW

01

Automatic Film Roll Making

02

Automatic Liquid Filling

03

Automatic Sealing

PARAMETER

Multifunction Liquid Sauce Sided Seal Sachet Packing MachinePesticide Vertical Vffs Packing Machine
ModelLD-320LLD-380L
Film width120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film rollMax.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness0.04-0.07mm
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)970*680*1950mm1100*800*2150mm
Machine weightAbout 300kgAbout 450kg

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
