Application

It is mainly designed for filling liquid and paste. Such as ketchup, tomato sauce, oils and so on. And widely use for foodstuff, chemical and daily use filed etc.

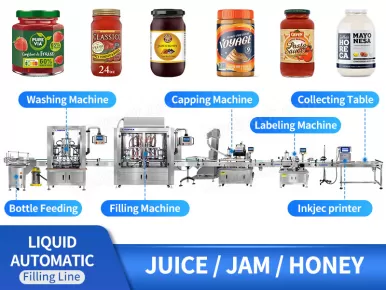

Fully Automatic Multi Head Ketchup Tomato Sauce Filling Capping Machine Line

FEATURES

1. Adopts plunger type metering pump filling, high precision; The structure of pump adopts fast disassembly institutions, easy to clean and disinfect.

2. PLC control system , color touch screen display.

3. This machine has function of no bottle no filling and automatic counting.

4. The filling nozzle was equipped with drip-proof device .

5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles.

6. Machine body and the parts contacting liquid are made of stainless steel, full compliance with GMP standard

Fully Automatic Multi Head Ketchup Tomato Sauce Filling Capping Machine Line

PARAMETER

	Bottle feeder
	Model	LFL-800
	Capacity	10rpm
	Bottle diameter	Φ30-100mm（Could be customized）
	Bottle height	30-120mm（Could be customized）
	Power	200W
	Voltage	220V、50HZ
	Weight	50kg

6 heads liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Autoamtic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm
