1kg 2 kg 5kg Bag Automatic Powder Vertical Form Fill Seal Packing Machine

Introduction:

Powder packing machinery for powder packaging is widely used for small granular or powder products, such as ground coffee, spices, flavor, white sugar, instant fruit drink, soup mix condiments, cereal, desiccants, milk powder, special coffee sugar, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

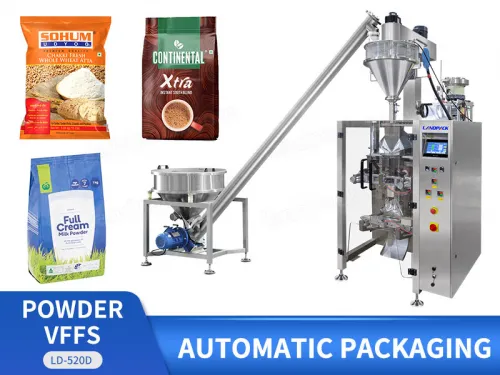

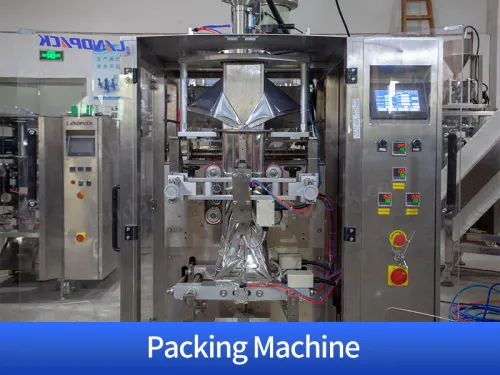

1kg 2 kg 5kg Bag Automatic Powder Vertical Form Fill Seal Packing Machine

FEATURES

1. Compact structure, small space

2. Stepper motor drive, reliable performance

3. Precise measuring, fast speed, low noise

4. Automatically forming bag, measuring, filling, printing and output

1kg 2 kg 5kg Bag Automatic Powder Vertical Form Fill Seal Packing Machine

WORKFLOW

Powder Feeder

Measuring

Vertical Bag Forming

Powder Filling

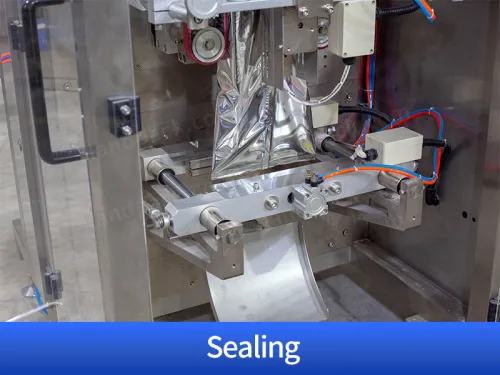

Bag Sealing

Finished Product Output

PARAMETER

Automatic Powder Packing Machine
Model	LD-420	LD-520	LD-720	LD-900
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	Max.720mm	Max.900mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L
