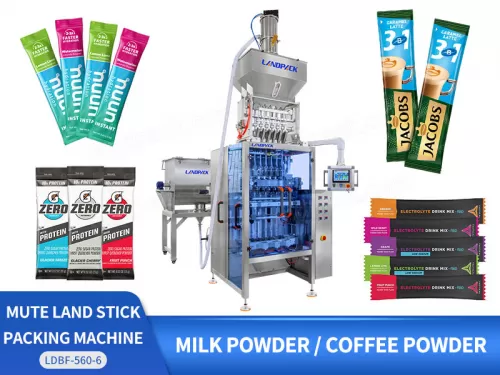

Automatic Multi Lane Powder Stick Packing Machine With Vacuum Feeder

Introduction:

Automatic multi lands powder stick packing machine with vacuum feeder, it is suitable for powder: milk powder, protein powder, tea powder, bakery powder, spices, cocoa powder, coffee powder, medical powder, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic multi lane powder stick packing machine with vacuum feeder is suitable for stick-packing powder, such as coffee powder, 3 in 1 coffee, milk powder, protein powder, tea powder, spice powder, seasoning powder, salt, sugar, etc.

Automatic Multi Lane Powder Stick Packing Machine With Vacuum Feeder

FEATURES

1. Automatic mix of different products.

2. Vacum pump for feeding, less space, easy to clean.

3. 6 tracks stick bag packing machine, high accuracy, and speed.

Automatic Multi Lane Powder Stick Packing Machine With Vacuum Feeder

WORKFLOW

Vacuum pump feeding powder automatically,

Volumetric cups for metering product

Servo motor pulling film

6 tracks sachet packing machine

Pull packing film and sealing

Feed powder into sachet

Cutting and output the finished product

Ribbon date printing

PARAMETER

Automatic Powder Stick Packing Machine
Model	LD-280BF	LD-560BF
Lane number	4-6 Lines	8-12 Lines
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycles/min
Stick Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film width & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular
Air & Powder	0.8Mpa 0.8mm³/min; 3.5kw	0.8Mpa 0.8mm³/min; 5.5kw
Dimension & weight	13859182005mm; 350kg	168513002005mm; 550kg
