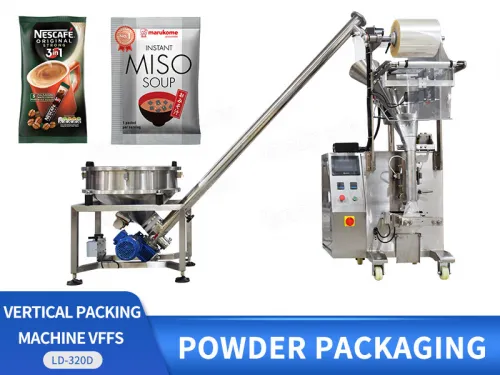

Automatic Sachet Powder Packing Machine Vertical Form Fill Seal Machine

Introduction:

Suitable for packing the fine powder material. Such as coffee powder, spice powder, milk powder, flour, fruits powder, beans powder, seasoning, potato starch, chemical medical powder, etc. It integrates metering, bagging, packing, sealing, date printing.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Sachet Powder Packing Machine Vertical Form Fill Seal Machine

FEATURES

1. High precision structure for simple and easy operating and repairing.

2. Single-chip CPU,step-motor,easy and accurate to set the bag length.

3. Own simple circuitry and outstanding function.

4. Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.

Automatic Sachet Powder Packing Machine Vertical Form Fill Seal Machine

WORKFLOW

Horizontal screw measure

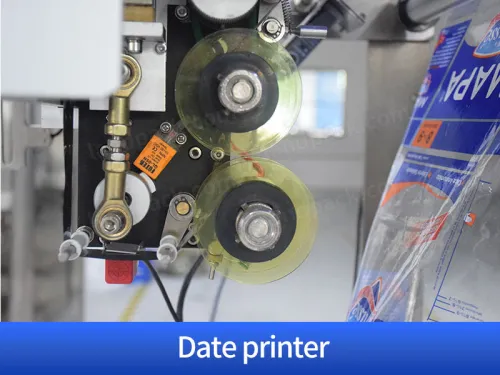

Ribbon code printer

Color mark sensor

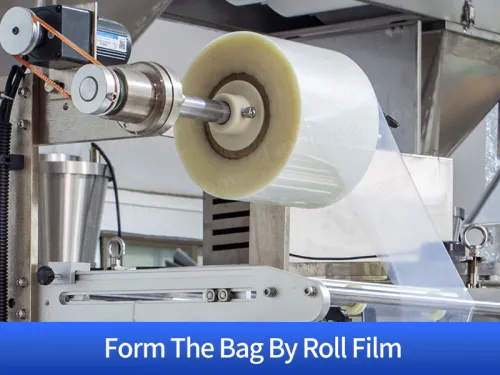

Three-side sealing bag former

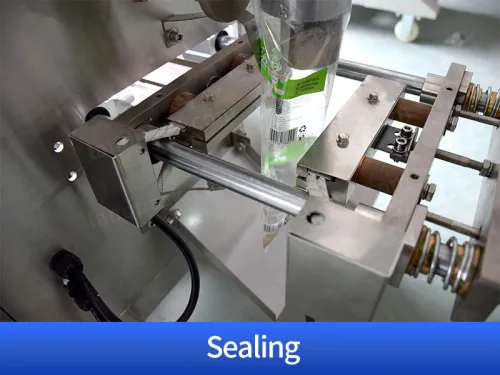

Middle sealing

Cutter

Product Output

PARAMETER

Automatic Powder Vertical Packing Machine
Model	LD-320D	LD-380D
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
