Automatic Guanule Food Canning Packing Line

Application:
Suitable for packaging various granular products, such as pet food, rice, nuts, corn flakes, peanuts, chips, snack, popcorn, dry fruits, candy, melon seeds, pepper, oatmeal, etc. Suitable for all kinds of containers on the market, such as plastic cans, jars, bottles, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for packaging various granular products, such as pet food, rice, nuts, corn flakes, peanuts, chips, snack, popcorn, dry fruits, candy, melon seeds, pepper, oatmeal, etc. Suitable for all kinds of containers on the market, such as plastic cans, jars, bottles, etc.

Automatic Guanule Food Canning Packing Line

FEATURES

1.This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components.

2.It adopts automatic bottle feeding, linear filling machine, can sealing machine, labeling machine and bottle collecting machine to form a fully automated production line;

3.Suitable for all kinds of containers on the market, such as plastic cans, cans, prefabricated bags, etc.

4.The machine frame of the whole line is made of SUS304 material, which is beautiful and durable;

5.Stable operation, low noise, convenient maintenance, fully comply with GMP certification, widely used in medicine, food and other industries;

6.Imported PLC and 7-inch touch screen man-machine interface, easy to operate;

7.Can make plans according to the different requirements of customers to meet customer needs.

Automatic Guanule Food Canning Packing Line

WORKFLOW

Z Shape Bucket Elevator Conveyor

Bottle Arranging Machine

Multi-Heads Weigher

Capping Machine

Collection Table

PARAMETER

Automatic Bottle feeder
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg

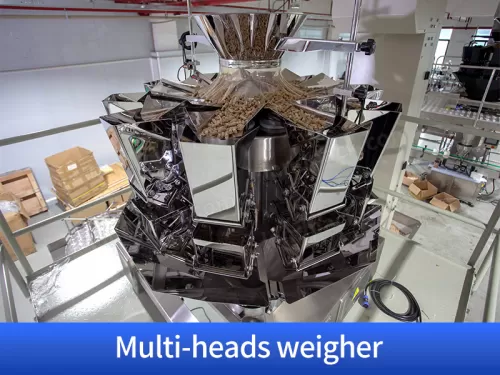

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

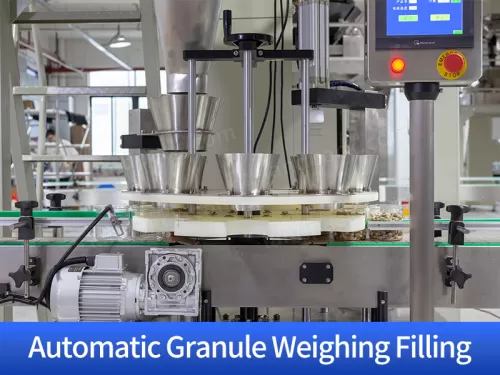

Accuracy weighing and filling
Model	LF-ZP-10
Output	20-30 bottles/min
Bottle diameter	Φ30mm-Φ135mm (customizable)
Bottle height	40mm-200mm (customizable)
Power	750W,220V,50Hz
Weight	200kg

Can Sealing Machine
Number of sealed cans	1
Sealing speed	15-24 bottles/minute
Can sealing height	50-200mm
Applicable bottle diameter	50-126mm
Power	0.55KW
Weight	130KG
Size	4006001450mm
Voltage	220V, 50/60Hz

Automatic plastic lids pressing machine
Seal Can diameter	φ40~φ130mm(can be customized)
Bottle's height	60~300mm(can be customized)
Cap's height	5~15mm
Speed	30-50 Cans/minute (can be customized)
Storage Can cover	about 100pcs
Machine Size	1900x800x1700
Power	220V/380V, 0.68KW
Air Pressure	0.6MPa

Autoamtic Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
