Automatic Multi Heads Weigher Granule Product Filling Canning Sealing Machine Line

Application:
This Line is designed for filling and sealing various granular products, such as pet food, rice, nuts, corn flakes, peanuts, chips, snacks, popcorn, dry fruits, candy, melon seeds, pepper, oatmeal, etc. Suitable for all kinds of containers on the market, such as plastic cans, jars, bottles, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This Line is designed for filling and sealing various granular products, such as pet food, rice, nuts, corn flakes, peanuts, chips, snacks, popcorn, dry fruits, candy, melon seeds, pepper, oatmeal, etc. Suitable for all kinds of containers on the market, such as plastic cans, jars, bottles, etc.

Automatic Multi Heads Weigher Granule Product Filling Canning Sealing Machine Line

FEATURES

1.This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components.

2.It adopts automatic bottle feeding, multi heads weigher filling machine, can sealing machine, labeling machine and bottle collecting machine to form a fully automated production line;

3.With an automatic clearing function, it is more convenient to use.

4.The machine frame of the whole line is made of SUS304 material, which is beautiful and durable;

5.Stable operation, low noise, convenient maintenance, fully comply with GMP certification, widely used in medicine, food and other industries;

6.Imported PLC and 7-inch touch screen man-machine interface, easy to operate;

7.Can make plans according to the different requirements of customers to meet customer needs.

Automatic Multi Heads Weigher Granule Product Filling Canning Sealing Machine Line

WORKFLOW

Empty Bottle Feeder

Granule Weighing Filling

Can Sealing

Finished Product Output

PARAMETER

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

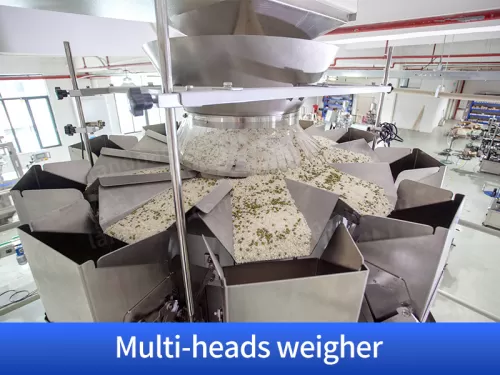

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

			Accuracy weighing and filling
			Model	LF-ZP-10
			Output	20-30 bottles/min
			Bottle diameter	Φ30mm-Φ135mm (customizable)
			Bottle height	40mm-200mm (customizable)
			Power	750W,220V,50Hz
			Weight	200kg

			Can Sealing Machine
			Number of sealed cans	1
			Sealing speed	15-24 bottles/minute
			Can sealing height	50-200mm
			Applicable bottle diameter	50-126mm
			Power	0.55KW
			Weight	130KG
			Size	4006001450mm
			Voltage	220V, 50/60Hz
