High Precision Powder Can Filling Seaming Capping And Labeling Machine Line With Coding Machine

Application:
This powder filling line is used for the automatic filling of various powder products, such as milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This powder filling line is used for the automatic filling of various powder products, such as milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

High Precision Powder Can Filling Seaming Capping And Labeling Machine Line With Coding Machine

FEATURES

1. The filling line is consist of automatic UV cleaning sterilization machine, vibration plate spoons feeder, cap feeder and cap pressing machine, laser printer.

2. The material of cover is stainless steel, Suspension type material hopper, easy to clean without tools.

3. Bilingual display screen control system, stainless steel cabinet. Set up the required data in the screen touch.

4. Servo motor control the auger that the filling accuracy will be more higher, and the filling speed can be controlled more fast and table, so it will have a long life time.

5. The auger can be adjusted easily to meet different kind of filling capacity and size of powder.

High Precision Single Head Powder Filling Capping Labeling Machine Line With Coding Machine

High Precision Powder Can Filling Seaming Capping And Labeling Machine Line With Coding Machine

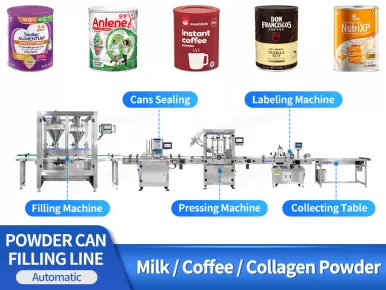

WORKFLOW

Bottle Feeding

UV Sterilization

Filling

Seaming Machine

Laser Printer

Weight Detector

Can Cleaning Machine

Plastic Lids Pressing Machine

PARAMETER

	Automatic UV sterilization UV
	Voltage	220V/50Hz（customized）
	Power	2500W
	Air pressure	0.3-0.5mpa
	Speed	10-50 BPM (can be customized)
	Bottle diameter	76-140mm
	Bottle high	80-200mm
	UV light	7
	Outline dimension	240013002200MM （L×W×H）
	Net weight	350KG

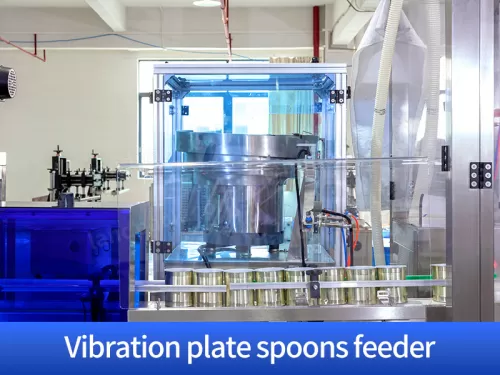

	Vibration plate spoons feeder
	Voltage	220V/50Hz（customized）
	Power	300W
	Speed	10-40 BPM （customized）
	Vibration top diameter	60-80cm
	Spoon size	customized
	Outline dimension	10008001200MM （L×W×H）
	Net weight	150KG

	Automatic powder weighing filling machine
	Model	LD-PAF01
	Filling Range	10-5000g (Customizable)
	Filling Speed	20-40 bottles/min
	Measurement accuracy	±1%
	Power	5 KW
	Working power supply	220V,50Hz
	Working pressure	0.6-0.8MPa
	Weight	500kg
	Size	L11782W3465.09H2523.52(mm)

	Vacuum can seaming machinewith nitrogen flush
	Bottle type	round,square bottles etc need to be customized.
	Bottle diameter	50-120cm(can be customized)
	Bottle height	50-150mm(can be customized)
	Speed	5-8BPM(it depends on product)
	Caps feeding type	ausomtaic lids feeding
	Machine voltage	220V(can be customized)
	Machine size	200010001700mm
	Machine weight	550kg

	Laser printer
	Print range	100*100mm
	Positioning way	Infrared focusing
	Focuslens	focal length 150mm
	Speed	Max10000mm/s(can be customized)
	Laser	fiber laser generator
	Machine voltage	220V(can be customized)
	Machine size	8255451425mm
	Machine weight	60kg

	Automatic empty cans cleaning machine
	Speed	1-40(can be customized)
	Bottle diameter	60-140mm(can be customized)
	Power	2KW 380V
	Weight	350KG
	Machine size	17008001800mm

	Automatic plastic lids pressing machine
	Seal Can diameter	φ40~φ130mm(can be customized)
	Bottle's height	60~300mm(can be customized)
	Cap's height	5~15mm
	Speed	30-50 Cans/minute (can be customized)
	Storage Can cover	about 100pcs
	Machine Size	1900x800x1700
	Power	220V/380V, 0.68KW
	Air Pressure	0.6MPa
