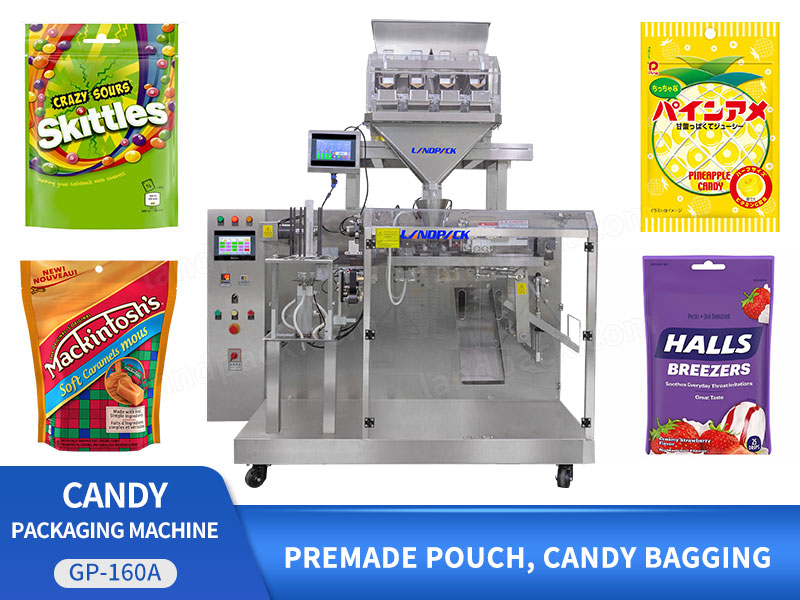

Automatic Horizontal Doypack Candy Premade Pouch Packing Packaging Machine

Application:
it is suitable for various kinds of dry fruit, snacks, popcorn, seeds, raisin, nuts, peanuts, candies, seeds, pet food, coffee beans and such materials in grain or piece.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

it is suitable for various kinds of dry fruit, snacks, popcorn, seeds, raisin, nuts, peanuts, candies, seeds, pet food, coffee beans and such materials in grain or piece.

Automatic Horizontal Doypack Candy Premade Pouch Packing Packaging Machine

FEATURES

1. Automatic feeding product, Speed adjustable.

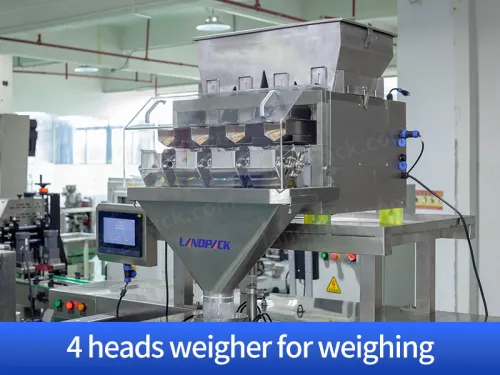

2. High speed and precision four heads weigher dosing system.

3. Customized station can adjust for flat bottom bag and doypack bag.

4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Automatic Horizontal Doypack Candy Premade Pouch Packing Packaging Machine

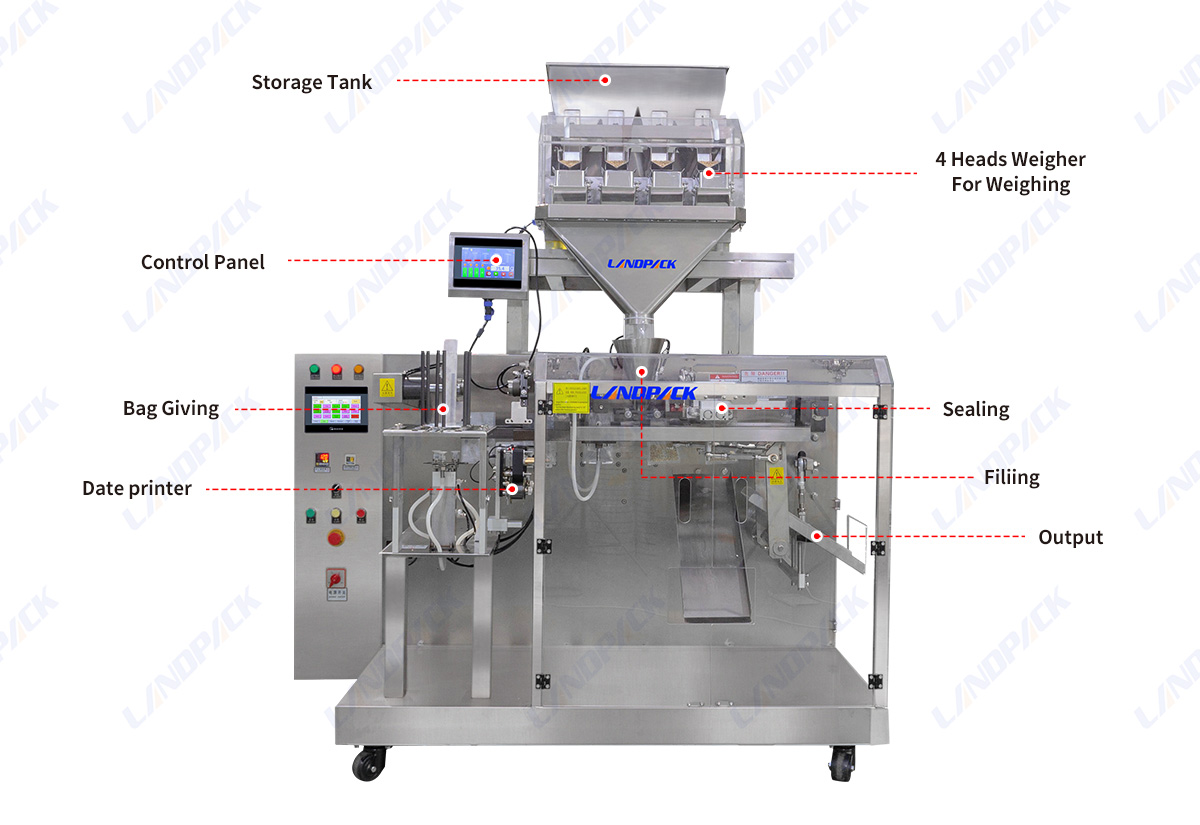

WORKFLOW

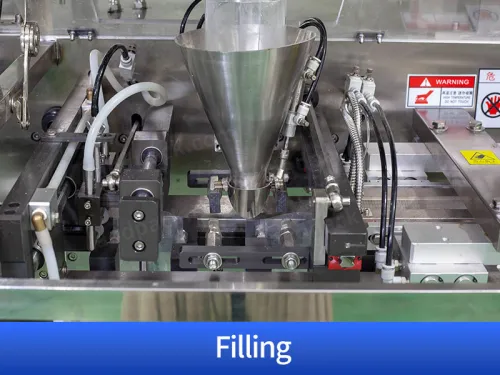

Material Feeding

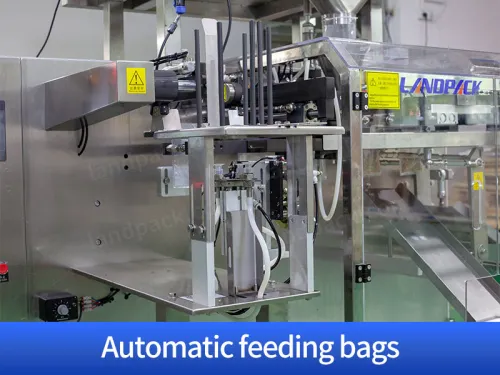

Premade Bag giving

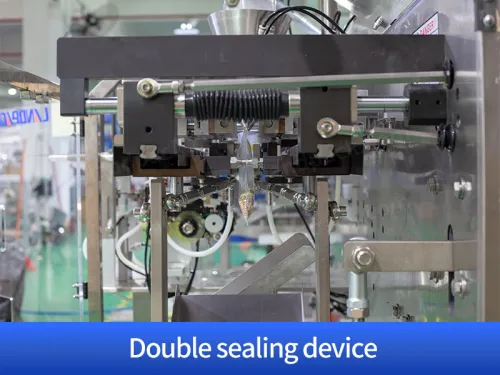

Bag Sealing

Finished Product Output

PARAMETER

Horizontal Premade Pouch Packing Machine
Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW

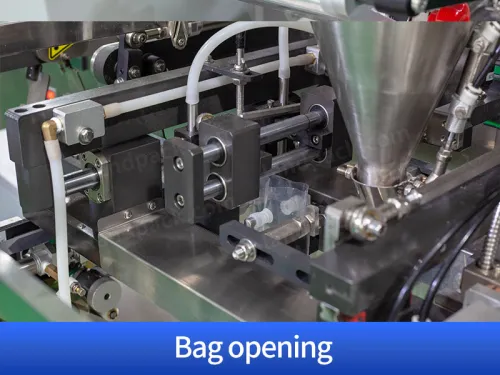

Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling

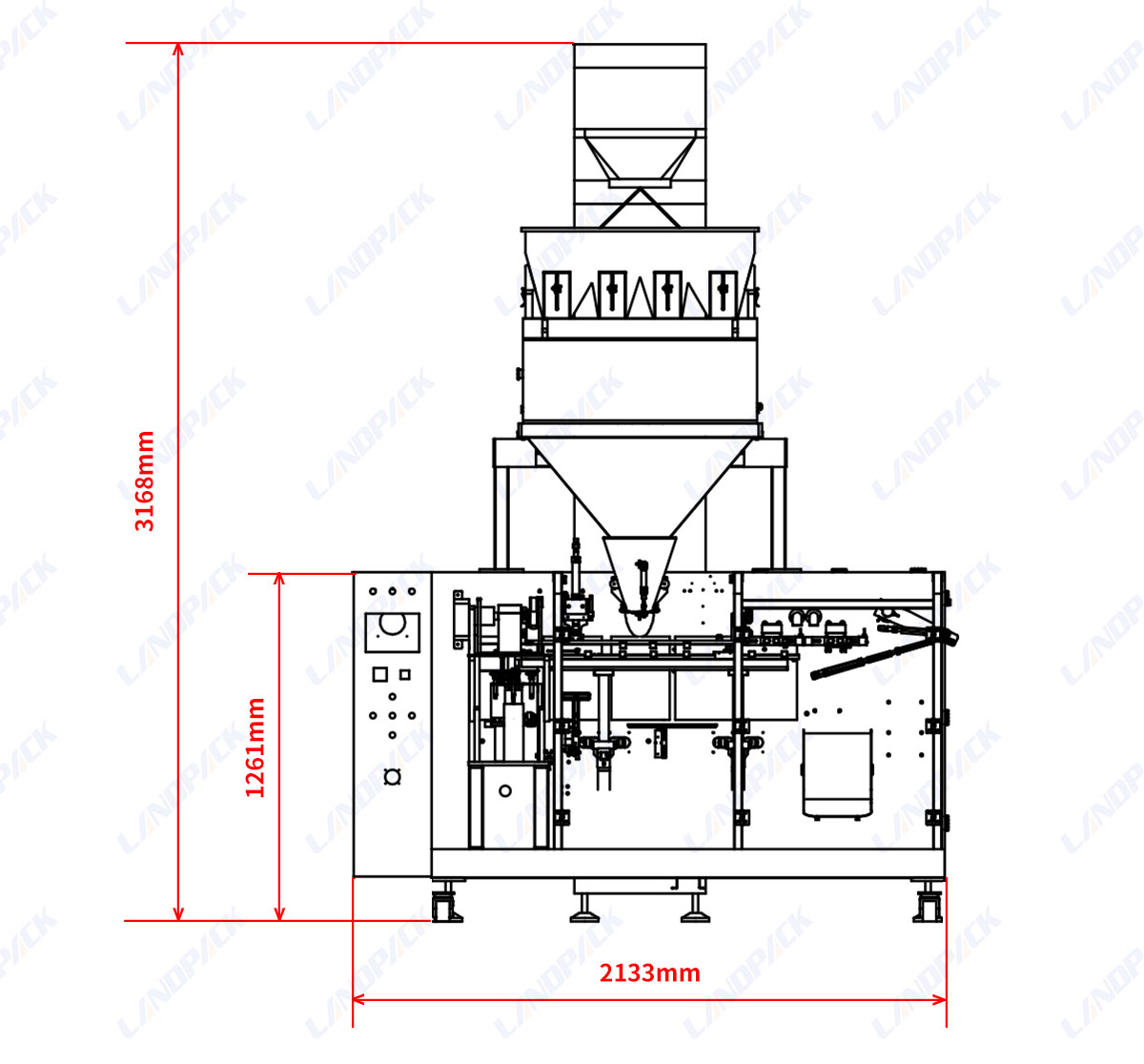

Work Flow					Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
