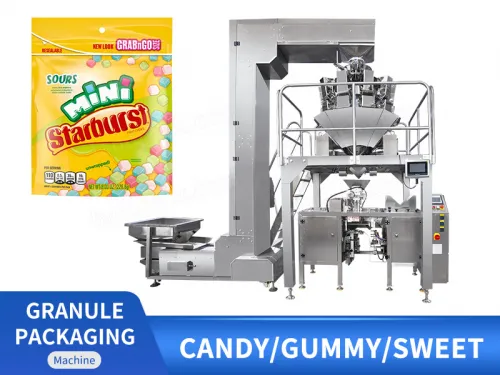

Automatic Mini Doypack Candy Packing Machine Premade Stand Up Pouch Packaging Machine

Application:

It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gussette pouch, standup pouch no-zip-lock. Suitable for various granlue material in premade pouch style, such as candy, beans, nuts, dry fruits, cereal, chocolate, biscuit, peanut, beef jerky, chocolate, chips, popcorn, capsule, seeds, chemicals, sugar, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Mini Doypack Candy Packing Machine Premade Stand Up Pouch Packaging Machine

FEATURES

1. Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;

2. Positioning (anti-dropping) function of hopper;

3. Low maintenance cost / Modular replacement of the parts;

4. Certificate of Conformity.

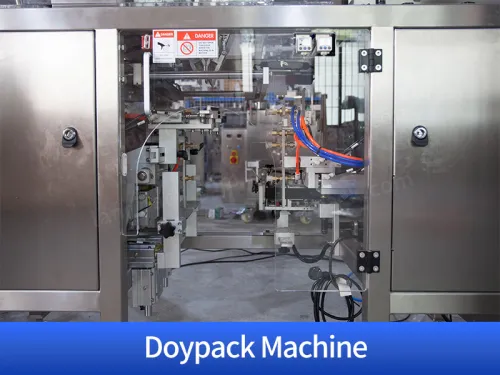

Automatic Mini Doypack Candy Packing Machine Premade Stand Up Pouch Packaging Machine

WORKFLOW

Z-elevator deliver

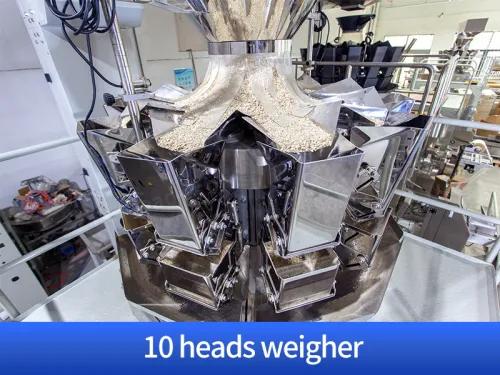

Multi-Head Weigher Measure Weight

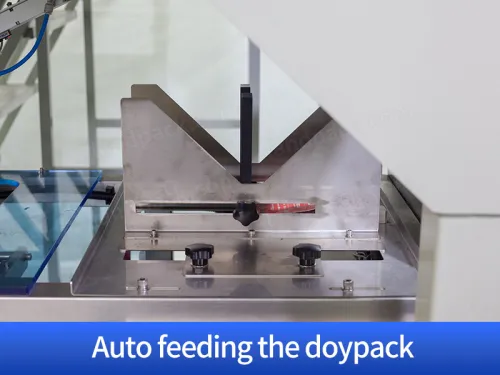

Feeding Bag

Open Bag

Filling material into bag

Sealing bag

Output the finished products

PARAMETER

Automatic Mini Doypack Candy Packing Machine
Type	Premade Stand Up Pouch Doypack Filling Sealing Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase	Gusset Bag, Zipper Bag, box bag
	of functional device）	(Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case
