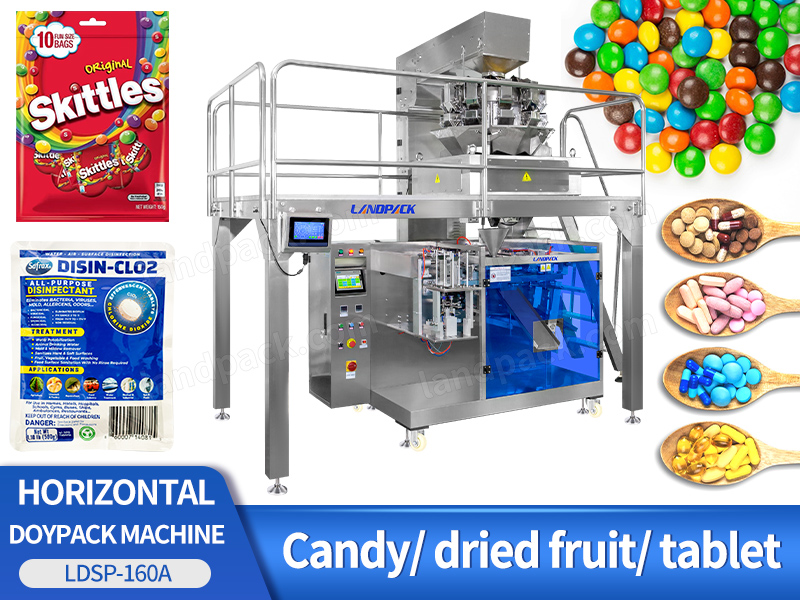

Automatic Premade Pouch Candy Horizontal Doypack Packing Machine

Application:

This system is designed for the automated packaging of grains and solid food items, including nuts, dry fruits, candy, cereal, chocolate, biscuits, peanuts, beans, seeds, capsules, chemicals, sugar, and more. It delivers efficient and accurate packaging for a diverse range of granular and solid materials.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Premade Pouch Candy Horizontal Doypack Packing Machine

FEATURES

1.Intuitive Operation: Equipped with a 7-inch Siemens touchscreen featuring multi-language support for effortless control and parameter adjustments.

2.Exceptional Precision: Utilizes advanced Japanese multi-head weighing technology for accurate dosing, ensuring consistent and reliable packaging.

3.Full Automation: Automates feeding, dosing, bag insertion, and sealing, supporting diverse bag types like stand-up bags, Euro-hole bags, linked bags, and date-marked bags.

4.Flexible Film Compatibility: Works with lamination pouches, PE, aluminum, paper, and various bag styles, including stand-up, zipper, flat (3/4-side seal), and pillow bags, catering to diverse packaging requirements.

5.Broad Industry Use: Ideal for both food and non-food sectors, delivering efficient and adaptable packaging solutions for a wide range of products.

Automatic Premade Pouch Candy Horizontal Doypack Packing Machine

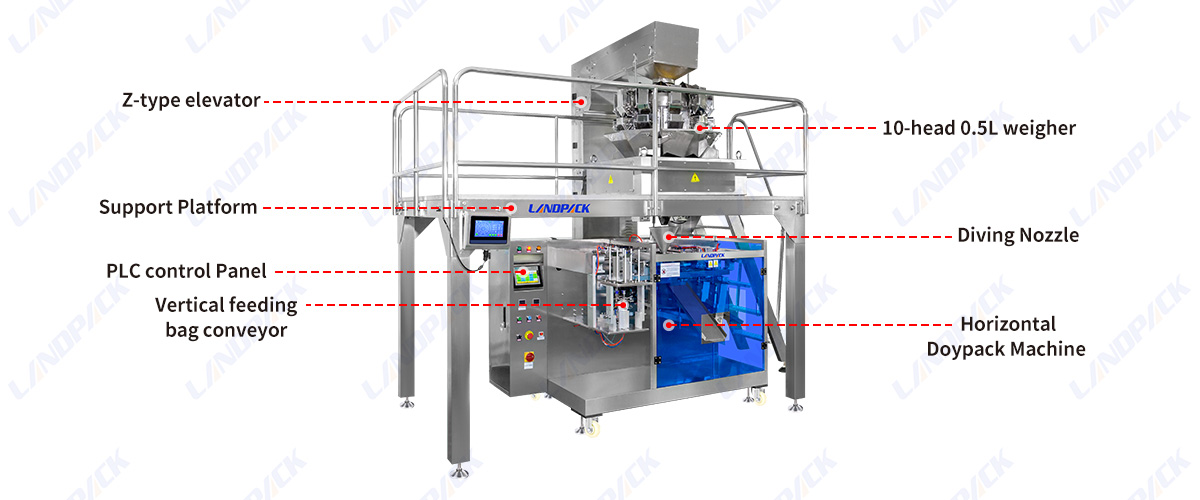

WORKFLOW

Automatic Materials Feeding with Z-type Elevator

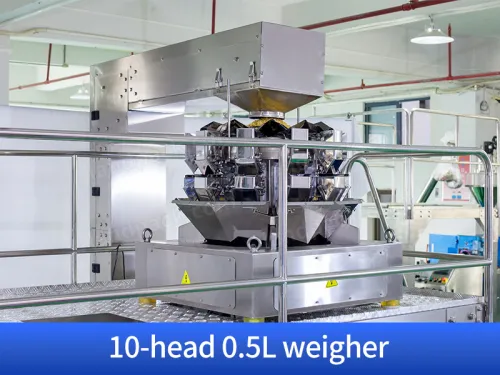

10-Head 0.5L Weigher

Vertical Feeding Bag Conveyor

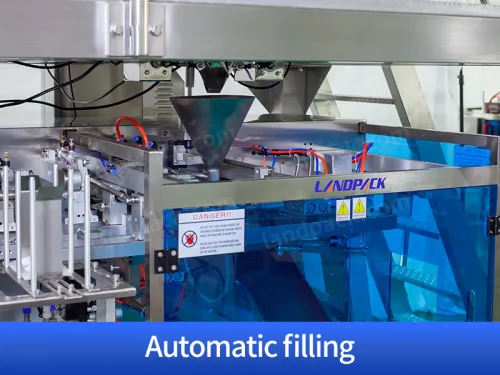

Bag Opening and Filling

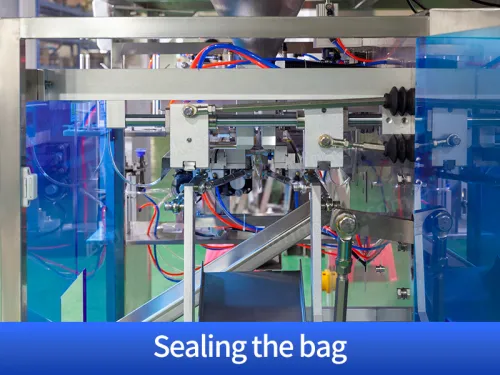

Automatic Sealing

Finished product output

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm (LW)	70-100mm110-230 (LW)	100-210mm/110-320mm (L*W)	100-260mm/110-320mm (L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product

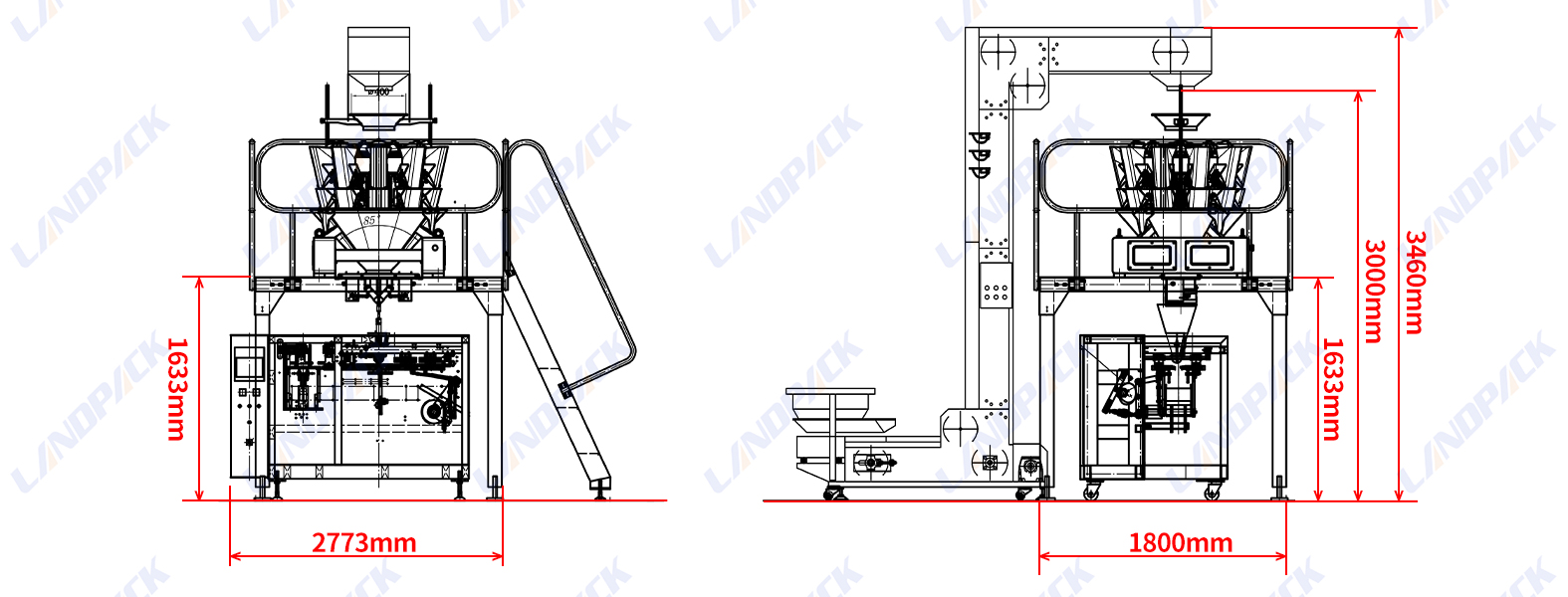

Dimensions	175012851360mm(LWH)		214013661360mm(LWH)	214013661360mm(LWH)
Collocation	Screw metering, screw elevator
