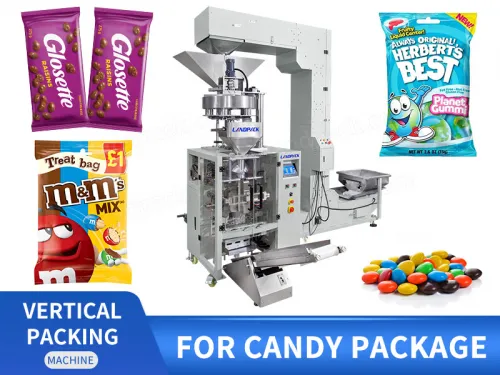

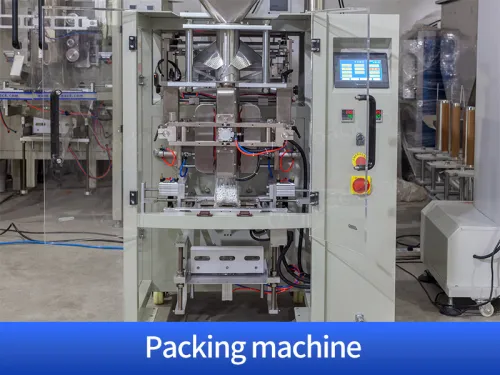

Fully Automatic Vertical Bear Gummy Sugar Candy Pouch Chewing Gum Toffee Candy Packing Packaging Machine

Application:
The vertical packing machine is suitable for packing sundry solid products, such as biscuits, candies jelly, puffy flakes and other food products, it also can pack commodities,hard-wares. plastic parts or other granular powder and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The vertical packing machine is suitable for packing sundry solid products, such as biscuits, candies jelly, puffy flakes and other food products, it also can pack commodities,hard-wares. plastic parts or other granular powder and so on.

Automatic Horizontal Doypack Candy Premade Pouch Packing Packaging Machine

FEATURES

1.Famous brand PLC control system, wide version touch screen, convenient to operate;

2.Servo film pulling system, Pneumatic horizontal sealing.

3.Perfect alarm system to reduce waste;

4.The way of bag making: the machine can make pillow-type bag and standing-bevel bags, punch bag or according to customer’s requirements.

Fully Automatic Vertical Bear Gummy Sugar Candy Pouch Chewing Gum Toffee Candy Packing Packaging Machine

WORKFLOW

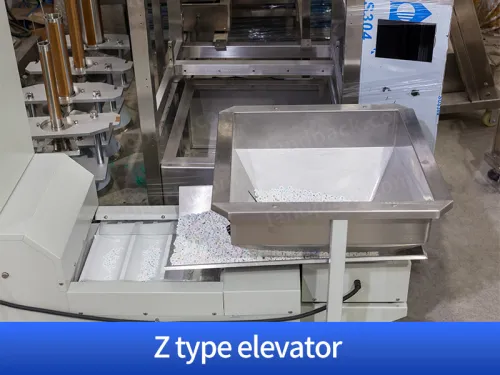

Material Feeding

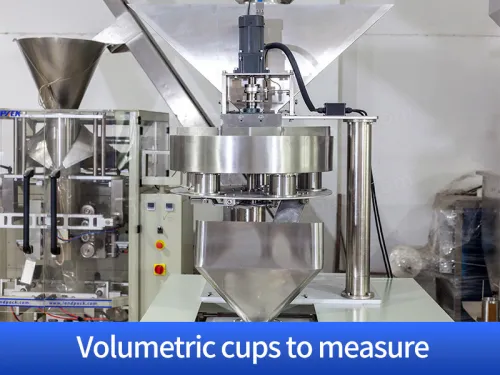

Volumetric Cup Measuring

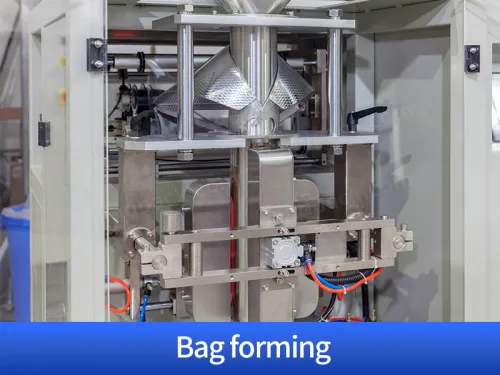

Gusset Bag forming

Candy Filling

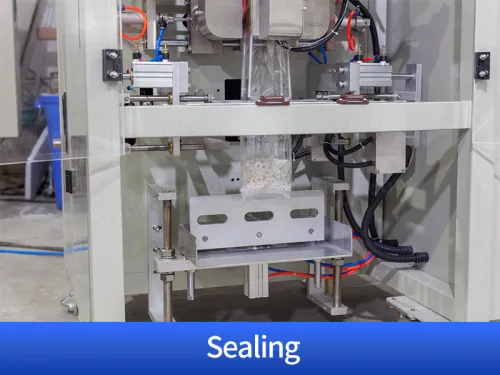

Bag Sealing

Finished Product Output

PARAMETER

Candy Packing Machine
Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
