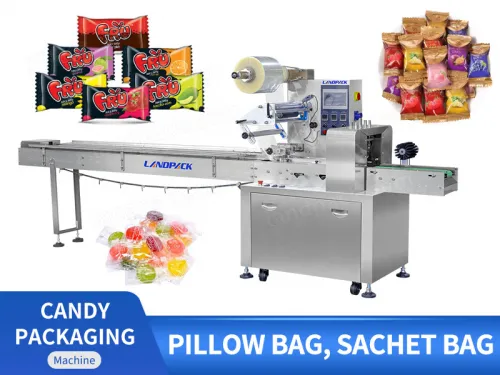

High Quality Automatic Flow Packaging Pack Wrapping Machine For Candy Gummy

Application:
This machine is suitable for packaging regular goods, such as candy, biscuit, pipes,bread, instant noodle,drug,daily appliances, industrial parts,paper box,plates etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This machine is suitable for packaging regular goods, such as candy, biscuit, pipes,bread, instant noodle,drug,daily appliances, industrial parts,paper box,plates etc.

High Quality Automatic Flow Packaging Pack Wrapping Machine For Candy Gummy

FEATURES

1. Dual frequency conversion control, Bag length can be set and cut in one step,saving time and film.

2. Interface features easy and quick setting and operation.

3. The design of the automatic production line is extremely east to be make up the operation line combined with the filling system,weighing filling system or labeling system.

4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

5. Strengthened blade holder makes compact sealingOptional air filling device achieves broad application.

High Quality Automatic Flow Packaging Pack Wrapping Machine For Candy Gummy

WORKFLOW

Material Feeding

Bag forming

Bag Sealing

Finished Product Output

PARAMETER

Candy Packing Machine
Model	LP-350	LP-400	LP-450	LP-600	LP-700
Film Width	Max.350mm	Max.400mm	Max.450mm	Max.600mm	Max.700mm
Bag Length	65-330mm	150-400mm	150-450mm	160-500mm	180-600mm
Bag Width	50-160mm	50-180mm	50-180mm	100-280mm	100-330mm
Products High	Max.60mm	Max.65mm	Max.75mm	Max.110mm	Max.110mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	Max.320mm	Max.320mm
Packing Speed	40-180bag/min	30-150bag/min	30-150bag/min	20-150bag/min	20-130bag/min
Power	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Power	2.6KW	2.8KW	2.8KW	2.8KW	2.8KW
Machine Size	40307701420	40307701420	40308201420	40309701500	403010701500
(LWH)mm	40307701420	40307701420	40308201420	40309701500	403010701500
Machine Weight	About 580kg	About 600kg	About 650kg	About 680kg	About 720kg
Optional Devices	1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,
	4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device,
	7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine
