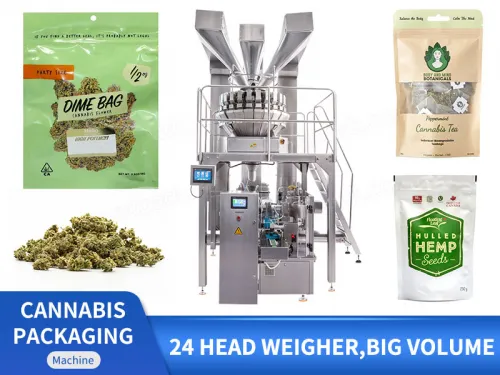

Automatic Mixed Cannabis Rotary Zipper Pouch Doypack Packing Machine

Application:

Suitable for automatic packing of grain and solid food, such as cannabis, dry fruits, dry apples, beef jerky, dry mango, nuts, cashew, popcorn, chocolate, candy, etc. Different kinds of products with stand-up pouches, doypack with zippers, 3-side seal bags, 4-side seal bags, flat bags, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Mixed Cannabis Rotary Zipper Pouch Doypack Packing Machine

FEATURES

1. Three-Material Mixing: Capable of mixing three different materials together.

2. Zipper Opening & Nitrogen Filling: Equipped with a zipper opening and nitrogen filling device to extend product shelf life.

3. Dimple Surface Weigher: Designed with a dimpled surface to prevent materials from sticking to the weighing plate.

Automatic Mixed Cannabis Rotary Zipper Pouch Doypack Packing Machine

WORKFLOW

Z-elevator deliver different materials separately

Multi-Head Weigher Measure Weight

Take the bags

Code printing

Open zipper and bag

Pushing

Nitrogen Filling

Sealing

PARAMETER

		Export Automatic Cannabis Rotary Zipper Pouch Doypack Packing Machine
		Model	LD-8200/LD-8250
		Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
		size	W：70-200/100-250
		Filling range	10-1000g/20-2500g
		Packing speed	40-60bag/min（speed is determined by the product filling quantity）
		Average precision	≤ ±1%
		Total power	2.5KW
		Dimensions	1900mm X 1570mm X 1700mm（LWH）
		Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
		Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
