Fully Automatic Bottle Tin Jar Cannabis Filling Capping Labeling Line

Application:
This granule filling line is suitable for automatic bottling filling of various granular products, such as cannabis, nuts, beans, peanuts, candy, seeds, potato chips, popcorn, almond, dry fruit, pet food, frozen food, jelly, biscuit, chocolate, corn, snack, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This granule filling line is suitable for automatic bottling filling of various granular products, such as cannabis, nuts, beans, peanuts, candy, seeds, potato chips, popcorn, almond, dry fruit, pet food, frozen food, jelly, biscuit, chocolate, corn, snack, etc.

Fully Automatic Bottle Tin Jar Cannabis Filling Capping Labeling Line

FEATURES

1. The whole granule filling line of round bottles and square bottles are shared, with strong compatibility.

2. The conveying line enters the bottle to save labor.

3. Multi-head combined scale metering turntable filling, high combination precision, and turntable lifting speed.

4. Equipped with a UV sterilizer, which can sterilize the inside of the bottle and recover dust before filling, so as to achieve the cleaning effect in the tank.

5. Equipped with nitrogen filling and aluminum foil sealing, product insurance, and ensure food is fresh.

6. Machine body and product touching part are made by stainless steel, completely meets GMP requirements.

Fully Automatic Bottle Tin Jar Granule Filling Capping Labeling Machine Line

Automatic Bottle Tin Jar Granule Filling Capping Labeling Machine Line

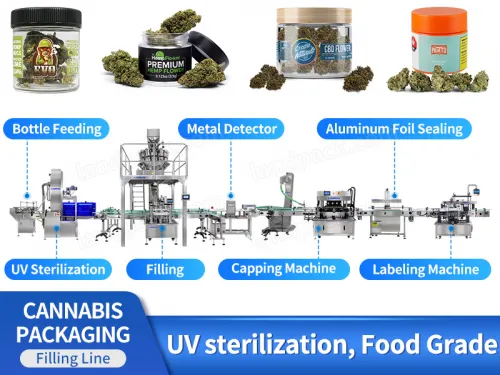

WORKFLOW

Automatic Bottle Conveyor Feeding

Automatic UV Sterilization UV

Automatic Multi-heads Granules Weighing Filling

High Speed Capping

Automatic Aluminum Foil Sealing

Automatic Double Heads Labeling

PARAMETER

	Bottle conveyor feeding device
	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm（Could be customized）
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	40-60bottles/min(（Could be customized）)
	Package Size	123010101260mm
	Gross Weight	141kg

	Automatic UV sterilization UV
	Voltage	380v ，50hz
	Power	1100W
	Bottle size	OD:Φ73-127 H:80-200mm
	Disinfection speed	1-45bottles/min(can be customized)
	Dimension	250015102435mm
	Weight	200kg

Multi- heads granules weighing double heads rotary filling machine
Model	LD-GZJ200M-R(double turntable filling)	LD-GZJ100M-R(Single turntable filling)
Material	304# Stainless steel	304# Stainless steel
Filling diameter	φ40 -φ130mm	φ40 -φ130mm
Applicable height	50-200mm (customized according to Bottle size)	50-200mm (customized according to Bottle size)
Filling speed	30-50 cans per minute	10-20 cans per minute
Air source	0.6-0.8Mpa	0.3-0.5Mpa
Voltage	220V,50HZ	220V,50HZ
Power	2.5KW	1.5KW
N.W./G.W.	200/320KGS	100/220KGS
Size	200010001400mm	20005001400

High speed capping machine
Model	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.5-0.7Mpa
Weight	350kg	300kg
Dimensions	H3120W1544L2122	H3100W1244L2122

Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Automatic double heads labeling machine
Model	LFT-SM-200C(double heads labeling)	LFT-SM-100C(Single heads labeling)
Labeling speed	10-40Bottle/min	5-20Bottles/min
Labeling accuracy	±1mm	±1mm
Label maximum width	200mm（Could be customized）	150mm（Could be customized）
Size of the object being attached	Height≤400mm; Thickness≤100mm（Could be customized）	Height≤400mm; Thickness≤100mm（Could be customized）
Label ID	Φ76.2mm	Φ25.4mm
Label OD	MaxΦ330mm	MaxΦ230mm
Voltage	220V、50HZ	220V、50HZ
Power	3.5KW	2.5KW
Weight	500kg	400kg
Dimension	L3002W1478H1810mm	L2950W1400H1810mm
