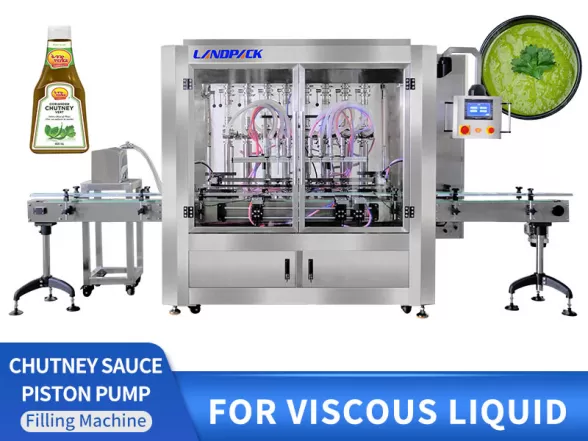

Automatic Chutney Filling Machine 8 Heads Piston Filling Machine

Introduction:

This machine is suitable for filling liquids, pastes, and sauces, such as chutney, soy sauce, chili sauce, ketchup, sryup, olive oil, mayonnaise, wine, fish sauce, honey, juice, coffee, tea, toner, facial cream, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Chutney Filling Machine 8 Heads Piston Filling Machine

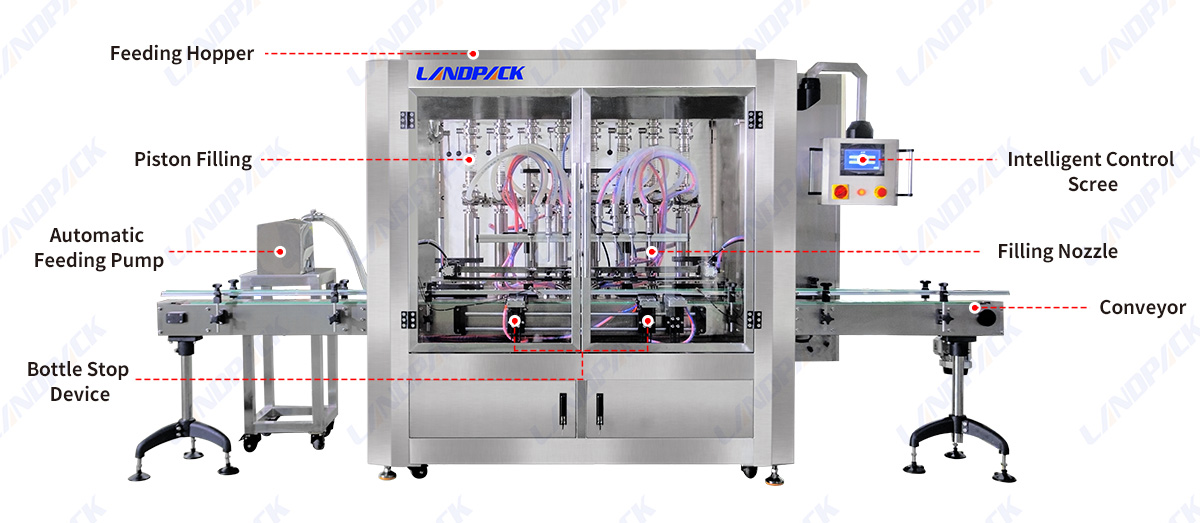

FEATURES

1. The automatic paste filling machine which contact liquid is made of stainless steel 304.

2. This automatic paste filling machine driven by servo motor that ensure filling with high precision and easy adjust for different kinds volume of bottle, like 200ml, 500ml, 1000ml and can put them in same machine.

3. No bottle no filling and no capping.

4. Capping head can easy change to suitable for different cap.

Automatic Chutney Filling Machine 8 Heads Piston Filling Machine

WORKFLOW

Automatic Bottle Chutney Filling

PARAMETER

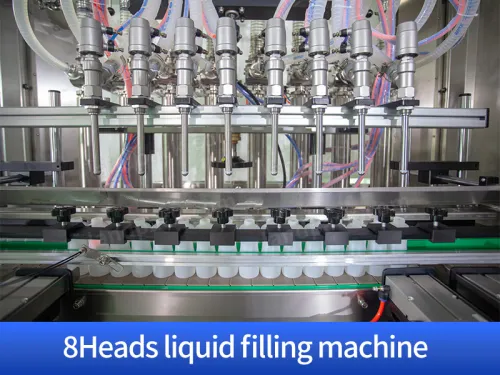

Eight Heads Piston Pump Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
