Applications

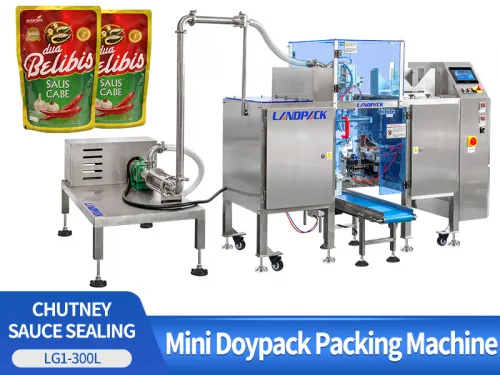

Automatic Premade Bag Doypack Chutney Sauce Paste Filling and Sealing Packaging Machine

Introduction:

This chutney packaging machine is widely used in doypack packaging for various liquids and pastes products such as chutney, soy sauce, vinegar, fruit juice, ketchup, beverages, tomato sauce, chili sauce, bean paste, washing liquid, etc which in good fluidity.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Premade Bag Doypack Chutney Sauce Paste Filling and Sealing Packaging Machine

FEATURES

1.Effortless Operation: Our machine is built with your convenience in mind. It features an intuitive touchscreen interface and an advanced PLC system, making it simple for your team to operate without any hassle.

2.Smart Error Detection: Say goodbye to costly mistakes! The machine automatically identifies pouch-related issues, reducing waste and ensuring consistent, reliable packaging every time.

3.Safety Features: Includes an automatic stop for abnormal air pressure and alarms for heater issues, ensuring safety.

4.Enhanced Safety: Your team’s safety is a priority. The machine stops instantly if it detects abnormal air pressure or a heater disconnection, giving you peace of mind.

5.Flexible Bag Sizing: Need to switch between products? No problem! The adjustable bag width lets you easily customize dimensions to suit a variety of items.

Automatic Liquid Detergent Premade Pouch Mini Doypack Filling Sealing Machine

WORKFLOW

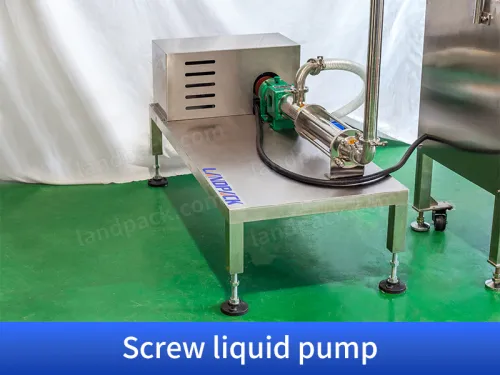

Piston Metering Device

Zip Lock Openning

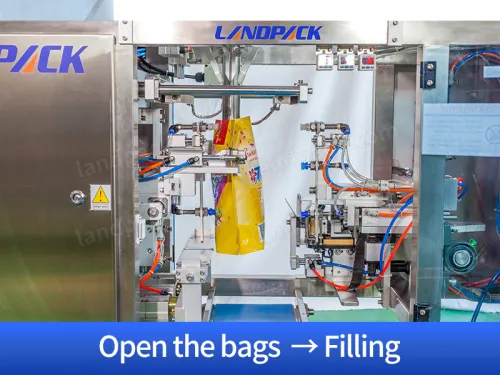

Up/Down Bag Opening

One Heads Filling

Twice Heating Sealing

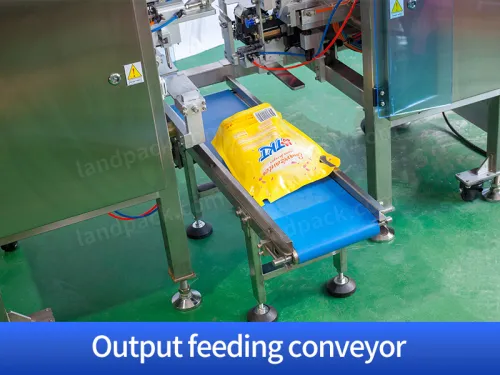

Finished Product Ouput

PARAMETER

Type	Economic Liquid Premade Stand Up Pouch Doypack Filling Sealing Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase	Gusset Bag, Zipper Bag, box bag
	of functional device）	(Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case
