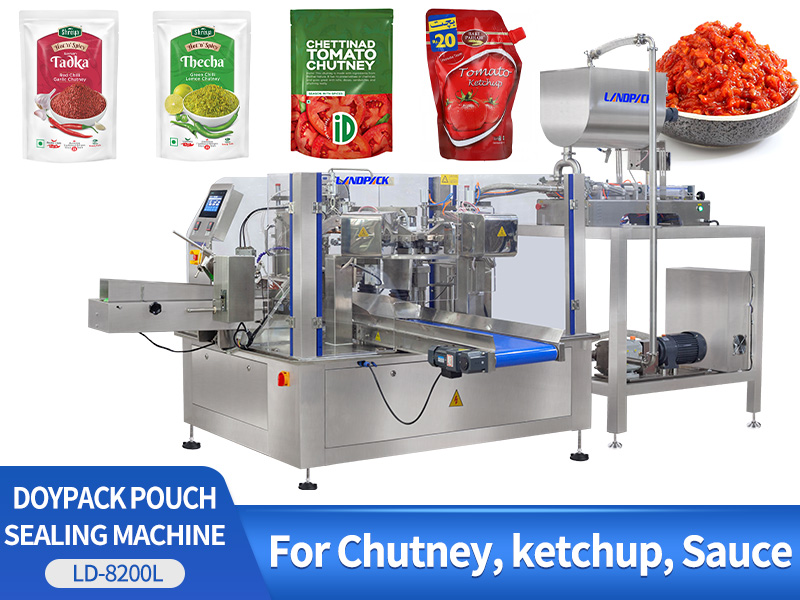

Automatic Thick Sauce Paste Chutney Rotary Pouch Packing Machine

Introduction:

The machine suitable for packing all kinds of liquid, viscous liquid and pastes, such as chutney, hand soap, shower gel, detergent, disinfectant, bleach, hand-washing gel, olive oil, drinking water, milk, soy sauce, juice etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

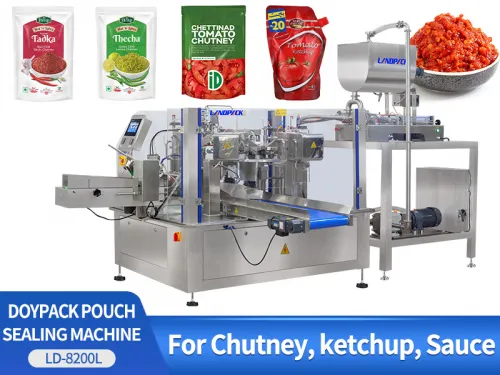

Automatic Thick Sauce Paste Chutney Rotary Pouch Packing Machine

FEATURES

1. Extensive packing bag range, suitable for multi-layer compound plastic prefabrication bag, low waste and good sealing quality.

2 . Quick and easy to change packing size within the permitted range, the given bag device is easy to adjust by hand lever(handle).

3. Equipped with checking device, if the packing bag is not open, the filling device and sealing device do not work to avoid wasting packing bags and material.

4. Frequency control system, packing speed can be adjusted within the range according to the actual situation.

5. PLC with touch screen control system, human-computer interface, easy to learn and operate.

Automatic Liquid Pesticide Rotary Packing Machine Doypack Filling And Sealing Machine

WORKFLOW

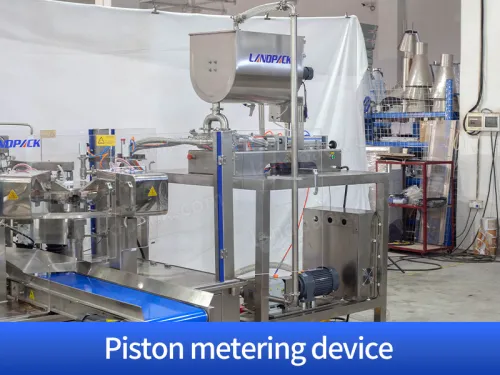

Piston metering device

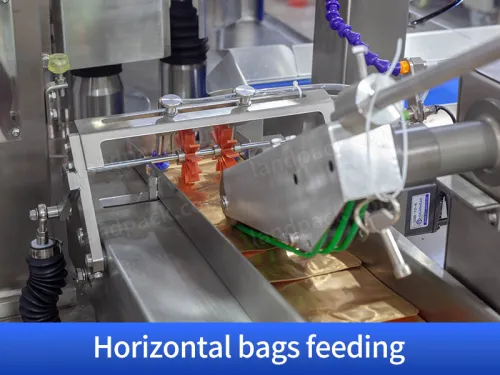

Horizontal bags feeding - date printing

Zip lock openning

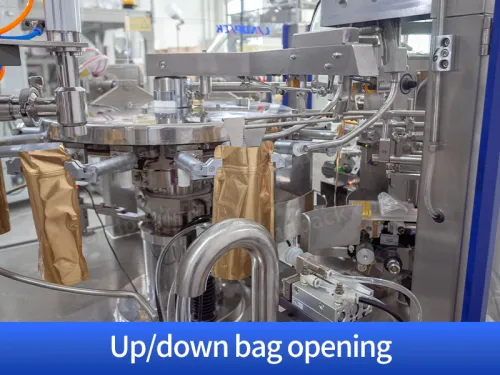

Up/down bag opening

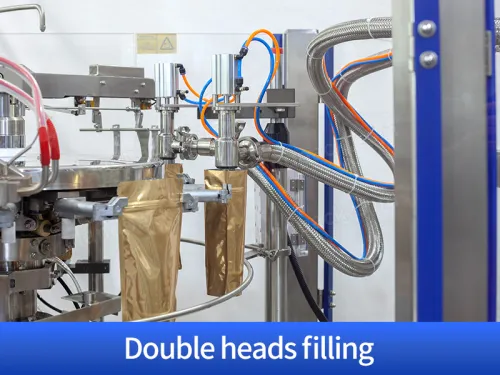

Double heads filling

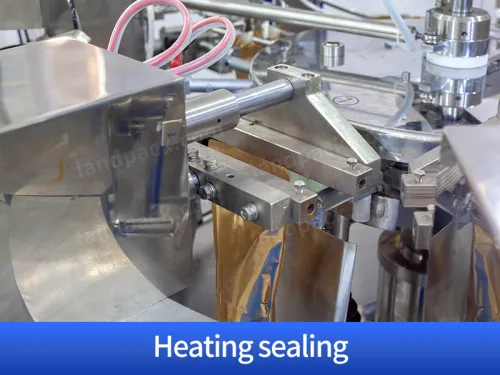

Twice heating sealing

Finished product ouput

PARAMETER

			Rotary Paste Premade Pouch Packing Machine
			Model	LD-8200LS/ 8240LS/ 8300LS
			Bag Size	W: 100-300mm L: 100-450mm
			Filling Volume	10-2500g (Depending on type of products)
			Capacity	25-60 bags/min (The speed depends on type of products and packaging material used)
			Package Accuracy	Error≤±1%
			Compress Air Requirement	≥0.8m³/min supply by user
