Applications

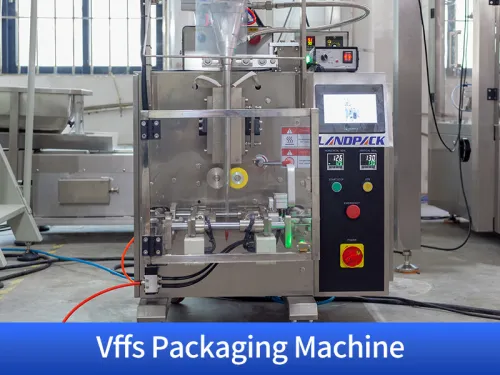

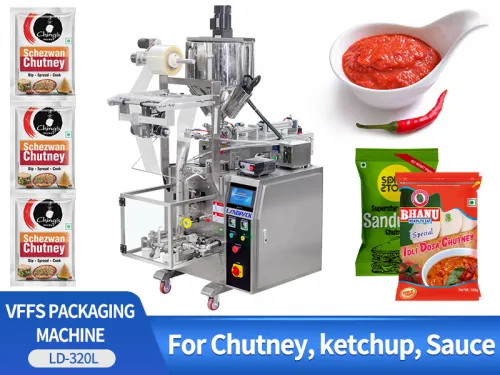

Automatic Vertical Sachet Chutney Packing Machine Sauce Packaging Machine

Introduction:

This machine is suitable for the packaging of liquid and pasty materials in the food, daily necessities, chemical and other industries. Food: chutney, ketchup, tartar sauce, barbecue sauce, chili sauce, honey, condensed milk, soy sauce, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Vertical Sachet Chutney Packing Machine Sauce Packaging Machine

FEATURES

1. Fully Automated Operation – The machine efficiently completes the entire packaging process, including measurement, bag making, filling, sealing, and cutting, reducing manual labor and increasing productivity.

2. Advanced PLC Control System with Touch Screen – Equipped with a high-quality brand PLC and a user-friendly color touch screen, ensuring easy operation and high efficiency.

3. Noiseless Stepper Motor for Stability – The stepper motor enhances working stability while minimizing vibration and noise, creating a smoother and quieter production environment.

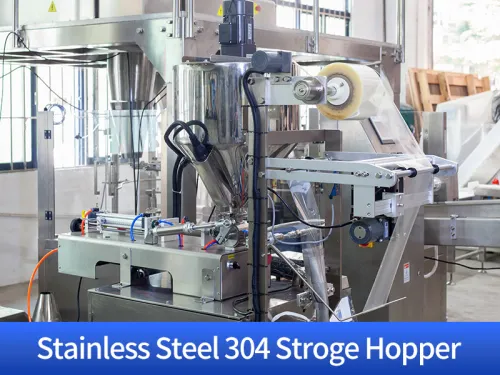

4. Durable Stainless Steel 304 Construction – Made from food-grade stainless steel, ensuring hygiene, easy cleaning, and long-lasting performance.

5. Intelligent Alarm Protection System – Features multiple automatic alarm functions to detect and prevent errors, minimizing material loss and enhancing operational safety.

Multifunction Sauce Sided Seal Sachet Packing Machine

WORKFLOW

Automatic Film Roll Making

Automatic Liquid Filling

Automatic Sealing

PARAMETER

Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70 bags/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
*Machine size(LWH)*	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
