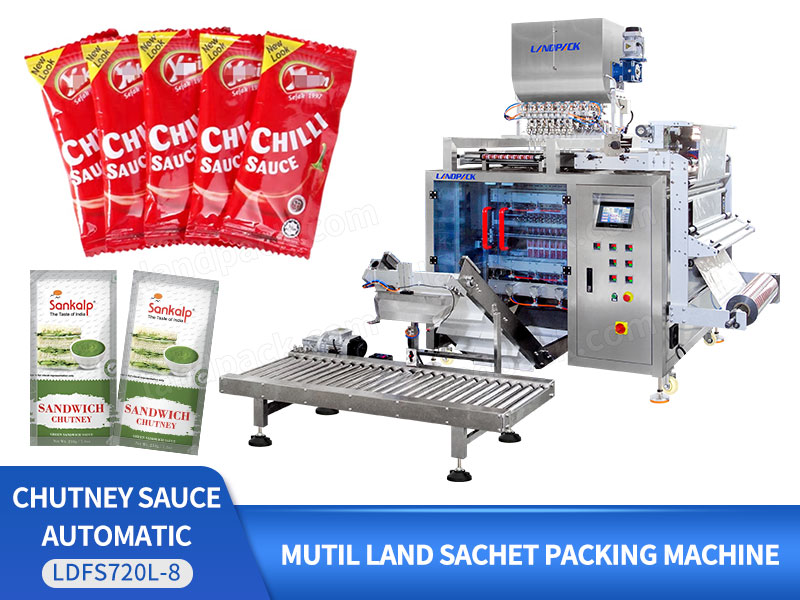

Chutney Multilane Packaging Multi Lane 4 Side Seal Liquid Sachet Packing Machine

Introduction:

This machine is ideal for the automatic packaging of liquids, creams, and pastes across a range of industries, including food, pharmaceuticals, household chemicals, agricultural products, and plastics. It is perfect for products such as chutney, chili sauce, ketchup, seasoning oil, body foam, facial cream, oil, grease, lotion, makeup, pesticides, fertilizers, foliage fertilizer, and more.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Chutney Multilane Packaging Multi Lane 4 Side Seal Liquid Sachet Packing Machine

FEATURES

1.High-Efficiency 8-Lane Packaging System – Designed for the accurate and efficient packaging of chutney sauce into 4-side sealed pouches, utilizing a multi-lane setup for increased output.

2.Smooth Film Unwinding with Air-Shaft Technology – Guarantees consistent and stable film feeding, enhancing the overall packaging quality and operational efficiency.

3.Ribbon Date Printer with Multi-Head Setup – Prints batch and date details on every pouch, ensuring traceability and clear labeling for each production lane.

4.Real-Time Ingredient Monitoring with Level Sensor – Tracks ingredient levels and triggers automatic refilling, preventing downtime and maintaining continuous production flow.

5.Built-in Stirring & Heating Mechanism – Keeps the sauce at optimal consistency by preventing separation and ensuring uniform heating for flawless filling.

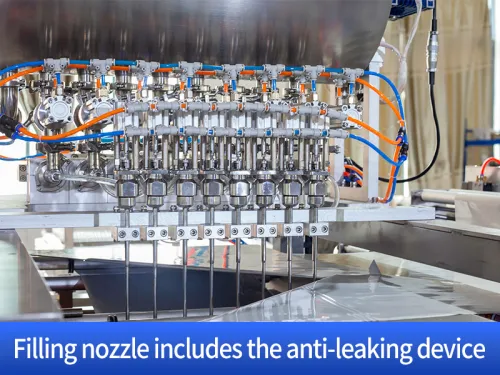

6.Leak-Proof Filling System – The anti-drip nozzle ensures clean, precise filling, minimizing product waste and avoiding contamination.

Chutney Multilane Packaging Multi Lane 4 Side Seal Liquid Sachet Packing Machine

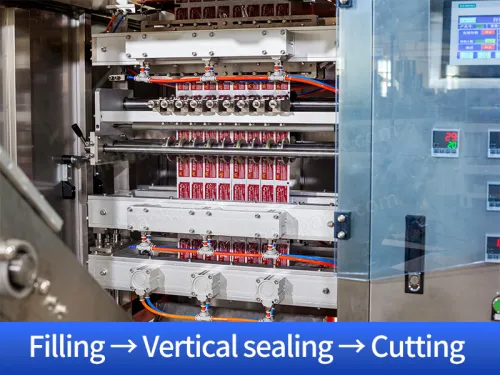

WORKFLOW

Bag Formation

Chutney Filling

Sealing

Cutting

Batch Coding

Counting

Finished Product Output

PARAMETER

Model	LD-480Y	LD-720Y
Track Number	4~6 Track	4~10 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg
