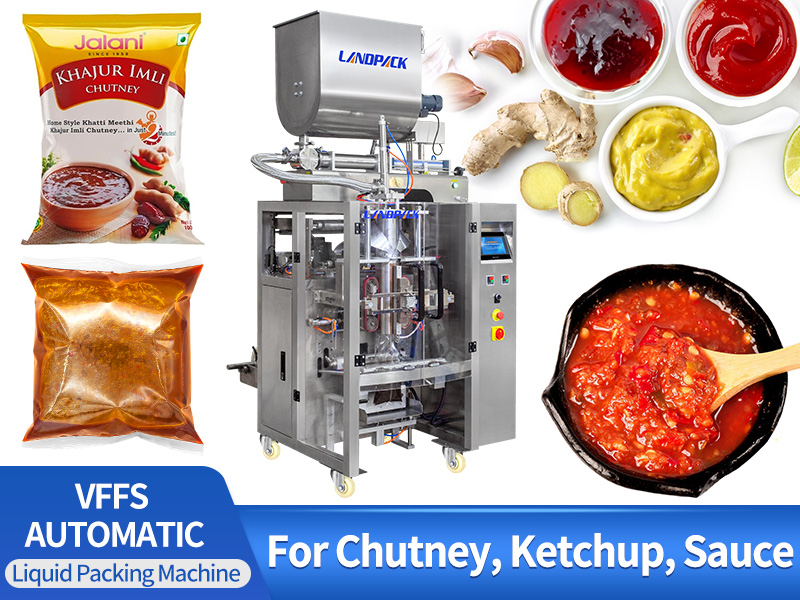

High Speed Vertical Chutney Packaging Machine Stick Sachet Liquid Packaging Equipment

Introduction:

Suitable for automatic packaging of liquid, cream, paste material of foods, medicine, daily used chemical, farm chemical, plastic products, etc. Such as chutney, body foam, facial cream, oil, grease, makeup, pestiside, fertilizer, foliage feritilizer, seasoning oil, chili sauce, ketchup and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Speed Vertical Chutney Packaging Machine Stick Sachet Liquid Packaging Equipment

FEATURES

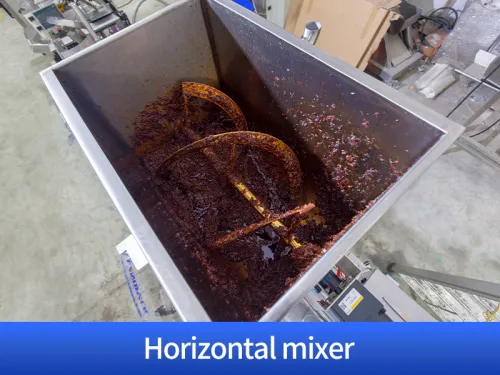

1. Horizontal Mixing for Even Sauce Blending – The horizontal mixer ensures uniform distribution of ingredients, resulting in a more consistent sauce mixture.

2. Heating System to Prevent Blockages – Equipped with a heating device to maintain optimal viscosity and prevent sauce from clogging during the filling process.

3. Anti-Leak Valve for Clean and Precise Filling – The anti-leak valve prevents sauce leakage, ensuring a clean and accurate filling process every time.

Automatic Sauce Bag Vertocal Form Filling Packaging Machine

WORKFLOW

Stirring Device: Used to achieve uniformity in the sauce.

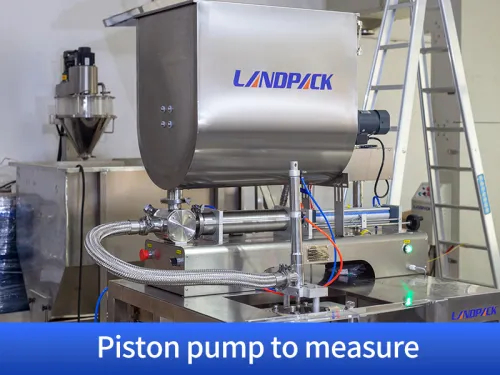

Piston Pump: Precisely measures and dispenses the sauce.

Bag Former: Shapes the bag for packaging.

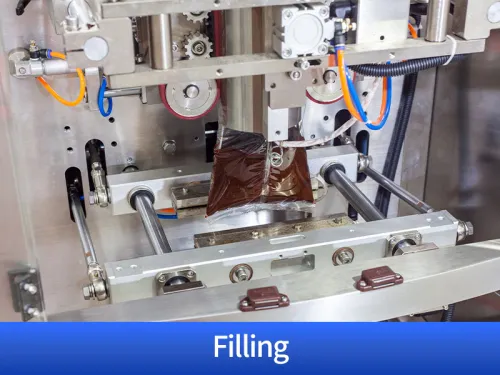

Filling: The sauce is filled into the bag.

Sealing: The bag is securely sealed to maintain freshness.

PARAMETER

Model	LD-420L	LD-520L	LD-720L
Film width	Max.420mm	Max.520mm	150-Max.720mm
Bag length	80-300mm	60-400mm	60-500mm
Bag width	60-200mm	100-250mm	65-350mm
Film roll diameter	Max.600mm	Max.600mm	Max.600mm
Packaging rate	5-60 bags/min	5-40 bags/min	5-30 bags/min
Range of measurement	1000ml	2000ml	5000ml
Film thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Power	220V, 50/60Hz, 3kw	220V, 50/60Hz, 3kw	220V, 50/60Hz, 3.5kw
*Machine size(LWH)*	121710151343mm	148810801490mm	178013502050mm
