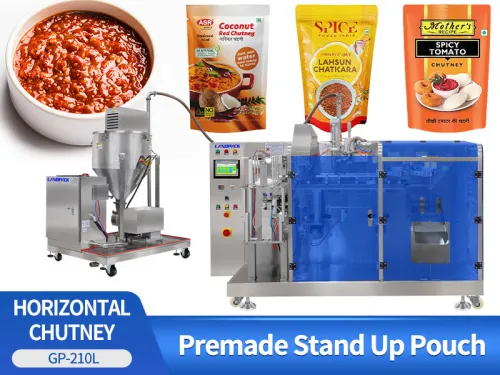

High Viscosity Chutney Horizontal Doypack Filling Packing Machine

Introduction:

It efficiently handles a wide range of viscous and fluid products, including chutney, sauces, yogurt, honey, jam, syrup, molasses, pet food, tuna, milk, laundry detergent, hand soap, cream, juices, and other thick or liquid substances.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This system is designed for packaging pre-made bags, zipper pouches, and liquid-standing formats. It efficiently handles a wide range of viscous and fluid products, including chutney, sauces, yogurt, honey, jam, syrup, molasses, pet food, tuna, milk, laundry detergent, hand soap, cream, juices, and other thick or liquid substances.

High Viscosity Chutney Horizontal Doypack Filling Packing Machine

FEATURES

1. Independent Hopper Control System: Features a separate control unit that allows for the storage of up to 8 different filling volumes, offering quick and easy adjustments for various products.

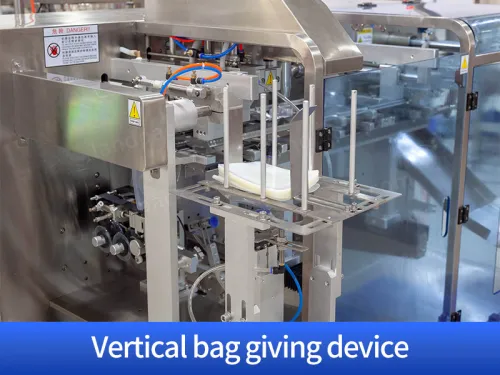

2. Vertical Bag Loading Mechanism: The vertical bag feeder optimizes the filling process, boosting operational efficiency and speeding up production for larger quantities.

3. High-Accuracy Rotor Pump: Equipped with a 5-blade rotor pump, this system ensures precise measurement of thick products like tuna meat, honey, and chocolate cream.

4. Large Capacity Heating and Stirring Hopper: The 100L hopper is equipped with heating and stirring functions, simplifying maintenance and cleaning.

5. Advanced PLC Control with Touch Screen: The system uses a Siemens PLC combined with a touch screen interface for smooth and intuitive operation.

6. Custom Leak-Proof Nozzle: Designed to prevent leakage, the special nozzle guarantees accurate and clean filling.

7. Double Seal Technology: The machine incorporates a dual-sealing feature, ensuring each package is tightly sealed and visually appealing.

High Viscosity Chutney Horizontal Doypack Filling Packing Machine

WORKFLOW

Pouch Loading

Pouch Picking

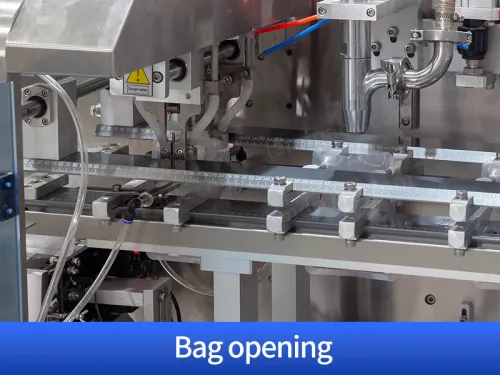

Pouch Opening

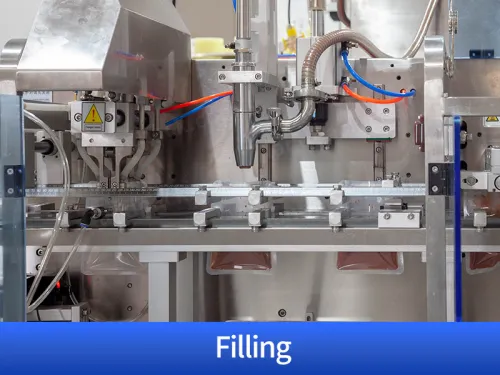

Automatic Chutney Filling

Pouch Sealing

Product Out

PARAMETER

Automatic Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering, screw elevator
