Applications

Automatic 2 Heads Coffee Powder Rotary Can Filling Seaming Line Machine

Introduction:

This powder filling line is suitable for coffee powder, milk powder, protein powder, health powder, medical powder, nutrition powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, solid medicament, powdery additive, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 2 Heads Coffee Powder Rotary Can Filling Seaming Line Machine

FEATURES

1. Double Auger Screw Measuring Turntable: Handles high production capacity of up to 40-50 bpm.

2. Fully Automatic Filling Machine Line: Compatible with various can or jar capacities.

3. PLC and Servo Motor Control: Provides high precision and speed.

4. Photoelectric Sensor: Detects can present; no can mean no filling, sealing, or capping.

Automatic 2 Heads Coffee Powder Rotary Can Filling Seaming Line Machine

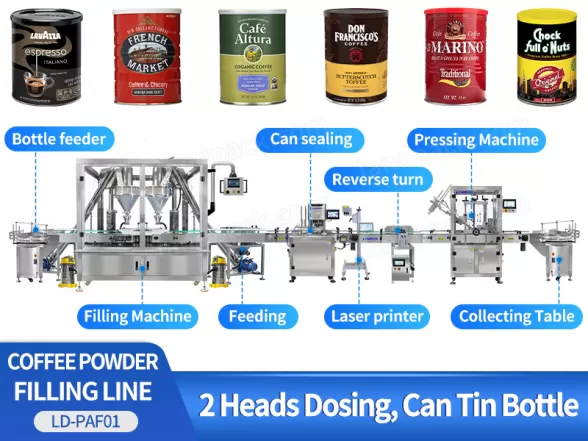

WORKFLOW

Auger screws conveying feeder

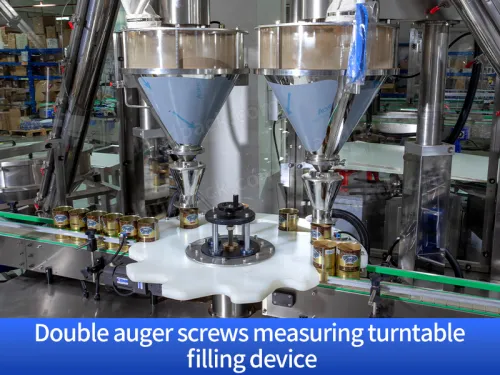

Double auger screws measuring turntable filling device

Vacuum dust cleaner

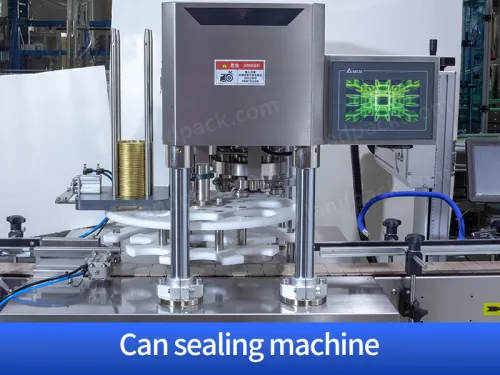

Can sealing machine

Laser printer, exact date printing

Reverse turn mechanism

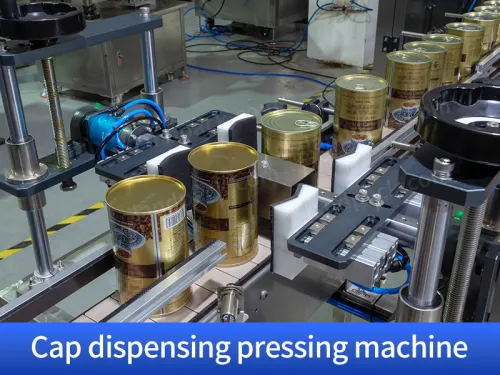

Cap dispensing pressing machine

PARAMETER

	Automatic Powder Screw Filling
	Model	LD-PAF880
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm (Could be customized)
	Suitable Bottle Diameter	40-120mm
	Suitable Bottle Height	30-200mm
	Working Speed	40-50 bottles/min (Could be customized)
	Package Size	123012101260mm
	Gross Weight	181kg

	Automatic Can Sealing Machine
	Voltage	220V/50Hz (customized)
	Power	0.55KW
	Air pressure	0.3-0.5mpa
	Speed	10-25 BPM (can be customized)
	Bottle diameter	50-126mm
	Bottle high	50-200mm
	Outline dimension	240013002200MM (LWH)
	Net weight	130KG

	Laser Coding Machine
	Print range	100*100mm
	Speed	Max10000mm/s (can be customized)
	Laser	Fiber laser generator
	Machine size	8255451425mm
	Machine voltage	220V (can be customized)
	Weight	80kg

	Automatic Plastic Lids Pressing Machine
	Attribute	Description or Value
	Seal Can Diameter	Ф40-Ф130mm (can be customized)
	Bottle's Height	60-300mm (can be customized)
	Cap's Height	5-15mm
	Speed	30-50 Cans/minute (can be customized)
	Storage Can Cover	About 100pcs
