Automatic Coffee Powder Weighing Filling Capping Bottling Machine Line with Spoon Feeder

Introduction:

This powder filling line is can automatic weighing filling capping labeling powder into the bottle tin can and other container. suitable for various particles and powders, such as coffee powder, milk powder, protein powder, flour, grains, scented tea, coffee bean, rice, popcorn, snacks, nuts, seeds, puffed food, dried fruit, pet food and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Coffee Powder Weighing Filling Capping Bottling Machine Line with Spoon Feeder

FEATURES

1. Automatic feeding, weighing, filling,feeding spoon, collecting, save labor cost, improve efficiency;

2. It can adjust different type cans and different weight;

3. Stable working and simple operation.

WORKFLOW:

1. Automatic feeding empty bottle;

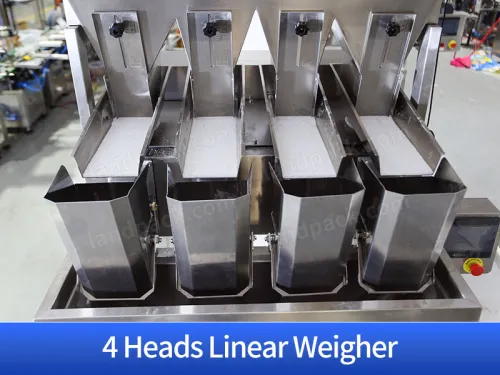

2. 4 heads weigher for weighing and filling automatically.;

3. Automatic feeding spoon;

4. Automatic feeding caps and automatical capping machine;

5. Finished cans collection.

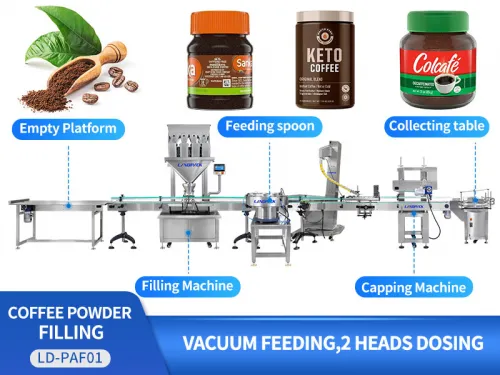

Automatic Coffee Powder Weighing Filling Capping Bottling Machine Line with Spoon Feeder

WORKFLOW

Collecting Table

Automatic Linear Scale Filling

Automatic Vibration Plate Spoons Feeder

High Speed Capping

Automatic Bottle Conveyor Feeding

PARAMETER

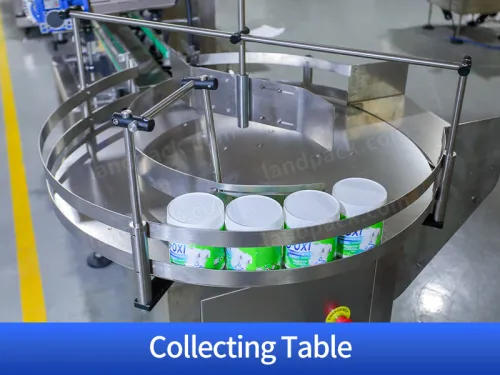

Collecting Table
Capacity	30-50Bottle
Material	Stainless Steel 304
Dimension	3002000100mm
Weight	200KG

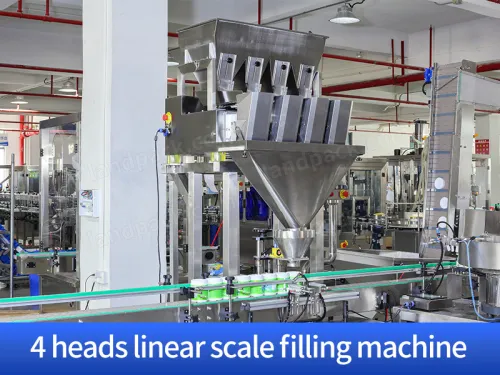

Linear scale filling machine
Model	LD-AF01
Filling arrange	20-2000g
Filling speed	15-25 bottle per minute
Conveyor Length	2m
Dimension	H2000W1000H2000mm
Hopper Volume	3000ml
Material settings	20
Most Material kinds	4
Power	AC220V 50/60HZ

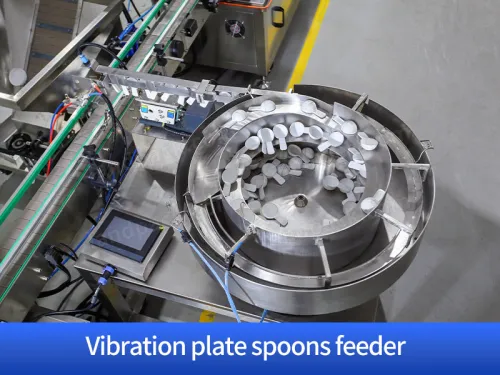

Vibration plate spoons feeder
Voltage	220V/50Hz（customized）
Power	300W
Speed	10-40 BPM （customized）
Vibration top diameter	60-80cm
Spoon size	customized
Outline dimension	10008001200MM （L×W×H）
Net weight	150KG

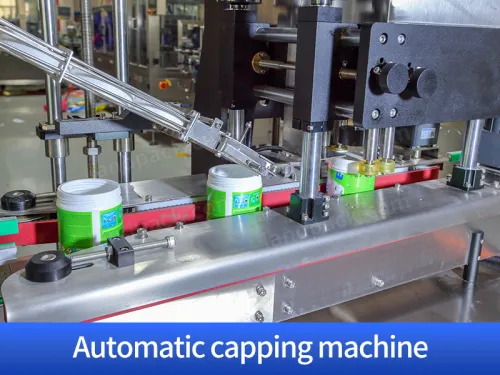

High speed capping machine
Model	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.5-0.7Mpa
Weight	350kg	300kg
Dimensions	H3120W1544L2122	H3100W1244L2122

Bottle conveyor feeding device
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm（Could be customized）
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60bottles/min(（Could be customized）)
Package Size	123010101260mm（Could be customized）
Gross Weight	141kg
