Fully Automatic Coffee Powder Instant Coffee Bottle Jar Filling Capping Labeling Line

Introduction:

This powder filling line is suitable for coffee powder, milk powder, protein powder, health powder, medical powder, nutrition powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, solid medicament, powdery additive, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic Coffee Powder Instant Coffee Bottle Jar Filling Capping Labeling Line

FEATURES

1.Automatic two-head Auger type metering/filling system works with the automatic capping machine.

2.Filling with weighing and rejrct, which can improve the accuracy of filling weight and is suitable for high-value products

3.Conveyor is mounted a precision splitter to perform the intermittent movement for bottle/can to achieve the accurate positioning function.

4.Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.

5.Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there's no bottle, and when bottle jammed occurs, the machine (system) will also stop automatically.

6.10 sets of memory modules for memorizing different kinds of products and filling weights.

7.HMI touch screen for operational control.

8.Full automatic solution, to realize feeding, weighing, filling,servo capping,foil sealing, labeling.

9.Available to connect with material supply system at pre-section for auto linking connection.

10.Servo capping machine, adjustable torque, can be screwed tighter.

Automatic Dry Powder Bottle Filling Capping Sealing And Labeling Machine Line

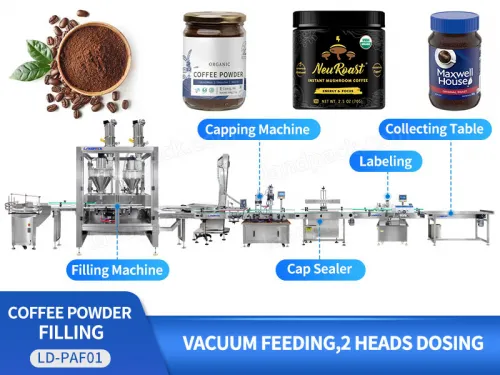

WORKFLOW

Auto-feeding empty bottles

Vacuum Feeding Machine

2 Heads Powder Filling Machine

Automatic Weight Checker and Rejrct Funtion

Autoamtic Cap Feeder

Servo Capping Machine

Automatic Aluminum Foil Sealing Machine

Labeling Machine

PARAMETER

			Bottle conveyor feeding device
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(（Could be customized）)
			Package Size	123010101260mm（Could be customized）
			Gross Weight	141kg

Automatic powder weighing filling machine
Model	LFP-01（Single Head Powder Filling）	LFP-01（Single Head Powder Filling）	LFPD-50-30（Double Head Powder Filling）
Filling Weight	10-5000g(Replace screw specifications)	10-5000g(Replace screw specifications)	100-2000g
Bottle diameter	Φ30-Φ140mm(Could be customized)	Φ30-Φ140mm(Could be customized)	Φ60-Φ135mm
Bottle Height	50mm-200mm(Could be customized)	50mm-200mm(Could be customized)	601-260mm
Capacity	10-20Bottles/min	20-40Bottles/min	10-25bottles/min
Measure accuracy	≤500g,≤±1%；≥500g,≤±0.5%	≤500g,≤±1%；≥500g,≤±0.5%	100-1000g,≤±2g；≥1000g,≤±5g
Power	2.5KW	5KW	4.5KW
Hopper Capacity	50L	50L	50L，30L
Power	220V,50HZ	220V,50HZ	220V,50HZ
Voltage	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Weight	350kg	550kg	500kg

Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

Autoamtic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
