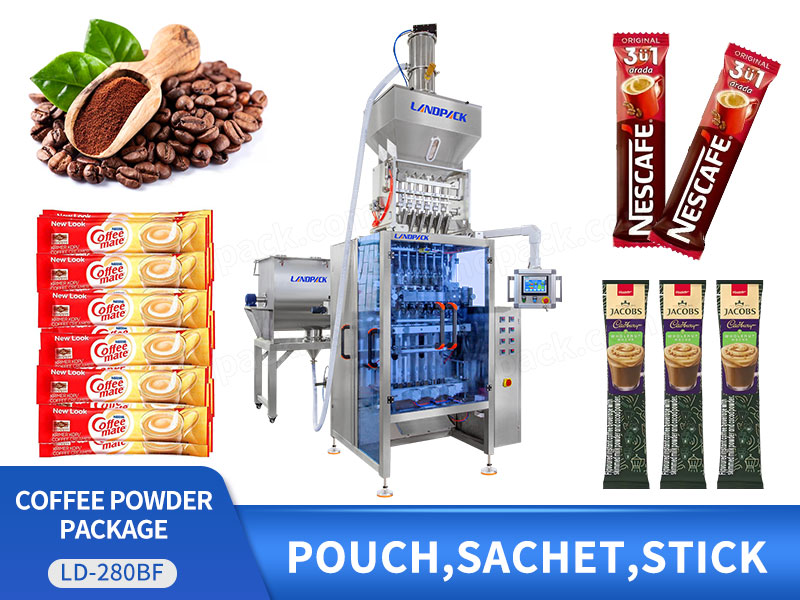

Multi Track Lane Coffee Stick 3 in 1 Instant Coffee Packing Packaging Machine

Introduction:
This multilane stick packing machine, it is suitable for many kinds of powder products, such as 3 in 1 coffee powder, chili powder, seasoning powder, milk tea powder, pharmaceutical powder, herb powder, dry powder, nutrition powder, flour, milk powder, glucose, medical powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This multilane stick packing machine, it is suitable for many kinds of powder products, such as 3 in 1 coffee powder, chili powder, seasoning powder, milk tea powder, pharmaceutical powder, herb powder, dry powder, nutrition powder, flour, milk powder, glucose, medical powder, etc.

Multi Track Lane Coffee Stick 3 in 1 Instant Coffee Packing Packaging Machine

FEATURES

1. Sealing the bags well without any waste film, because of multiple rolls to pull the film for running smoothly, the cutter made of high hard stainless steel, it seal the bag with clear texture , no film stick on the sealing device.

2. The fillet bag is with the easy to tear mark place, so the customers open the bag easier and convenient.

3. Low maintenance cost : The machine is controlled by the timing belt , Independent temperature control table for each heating pipes, which easy to find and solve the problem.

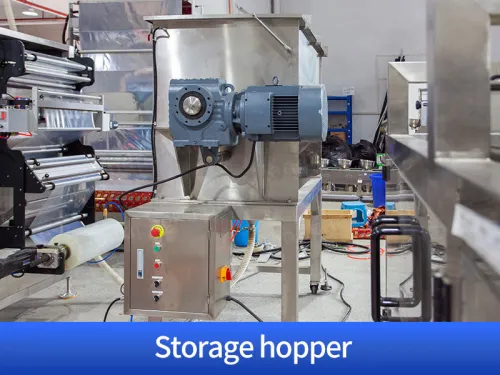

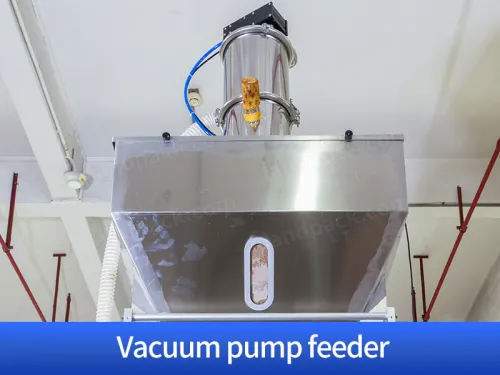

4. Powder vacuum feeding machine to transport the powder from the storage hopper to the measurement device automatically.

5. Materials due to changes in weight and material level of error correction can be automatically tracked.

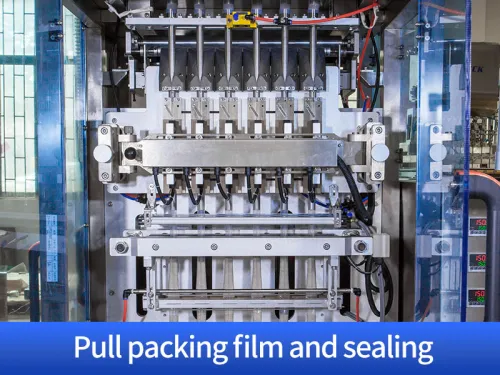

6. The machine would pull the flim, print the code by laser , form the bag, measure and fill the powder into bag, sealing and output the finished products automatically. No need worker to operate such function, durning the machine working.

Multi Track Lane Coffee Stick 3 in 1 Instant Coffee Packing Packaging Machine

WORKFLOW

Coffee Feeding

Coffee powder bag making

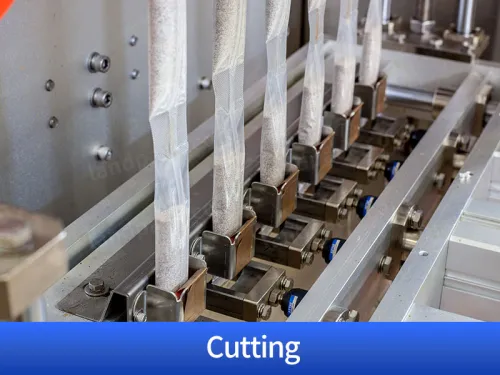

Bag Cutting

Finished Product Output

PARAMETER

Coffee Packing Machine
Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg
