Automatic Cosmetic Creams Lotions Tube Filling Sealing Packing Machine Line

Introduction:

This filling line is suitable for filling medicine, daily chemical, food, chemical, cosmetics and other industries, such as toothpaste, cosmetic cream, lotion, ointment, honey, adhesive, AB glue, skin cream, hair dye, and other liquid or paste-like materials filling and sealing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Cosmetic Creams Lotions Tube Filling Sealing Packing Machine Line

FEATURES

1.The tube filling sealing machine is suitable for aluminum and plastic tubes, with multiple uses and simple adjustment.

2.The tube filling sealing machine has a fast speed and uses water cooling for sealing, beautiful effect.

3.Weight selection and removal of non-conforming products.

4.Automatic cartoning machine and cellophane paper film packing machine,finished product is beautiful.

Automatic Cosmetic Creams Lotions Tube Filling Sealing Packing Machine Line

WORKFLOW

Tube Orientation Checking

Filling

Tube Heat Sealing

Tube Date Printing

Tube Tail Cutting

Tube Filling Into Carton

Shrink Wrapping

PARAMETER

	Tube Filling And Sealing Machine
	Model	LFF-ZW-08
	Tube material	Aluminum / Metal tube
	Tube diameter	φ15—φ70
	Tube length	60—280（customizable）
	Filling volume	10—480ml/pcs（adjustable）
	Filling accuracy	≤±1%
	Product capacity	1800—4000 pcs/h（adjustable）
	Working pressure	0.55—0.65Mpa
	Motor power	2KW (380V/220V 50Hz/60Hz, three phase)
	Working Position	10Automatic Aluminum Tube Filling And Sealing Machine with Cover Pcs

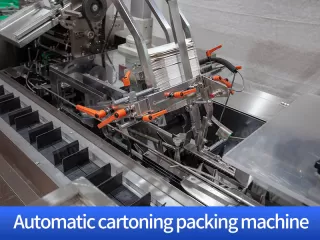

	Automatic cartoning packing machine
	Box max size	L195W120H70mm
	Box forming way	insert forming
	Speed	60-75 box per minute
	Touch screen	Siemens PLC
	Machine material	ss201

	Automatic BOPP cellophane paper shrink wrapping machine
	Machine material	SS201
	Film material:BOPP film	max roll film diameter ≤350mm
	Film width	120-500mm
	Box size	L60-400 W50-250 H30-110mm(different size need to change the mold,price not include extra mold )
	Speed	5-8 pieces per minute
