Applications

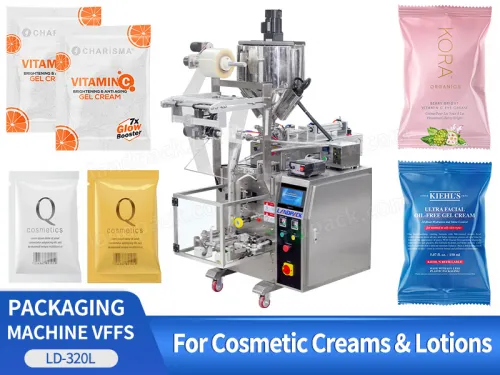

Automatic Cosmetic Creams Vffs Pouch Bag Liquid Packing Packaging Machine

Introduction:

Suitable For Packing For All Kinds Of Liquid Material Such As Cosmetic Creams, Water, Honey, Juice, Tomato Paste, Ketchup, Sauce, Oil, Etc. Various Bag Types Are Available, E.G. Back-Sealing Bag, 3 Sides Seal Bag, 4 Sides Seal Bag, Stick Bag, Linking Bags,Etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Cosmetic Creams Vffs Pouch Bag Liquid Packing Packaging Machine

FEATURES

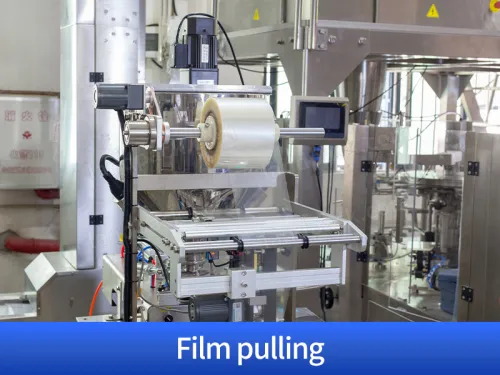

1. The multi-union roll film pulling system ensures smoother film operation.

2. The 7-inch touch screen allows for easy use and supports multiple languages.

3. The imported PLC system guarantees stable performance and straightforward parameter adjustments.

4. The memory function saves ten parameter sets for quick product transitions.

5. The separate PID temperature controller is designed to handle various packing materials.

Multifunction Liquid Sauce Sided Seal Sachet Packing Machine

WORKFLOW

Automatic Film Roll Making

Automatic Liquid Filling

Automatic Sealing

PARAMETER

Vertical Vffs Packing Machine
Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
