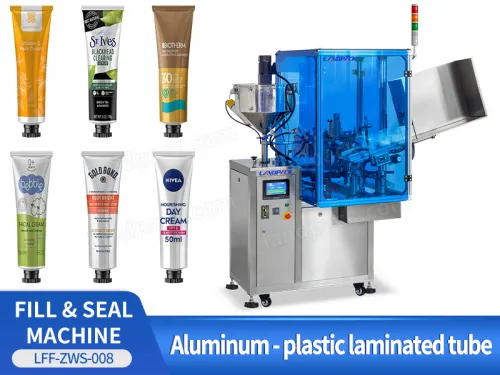

Automatic Cosmetic Lotion Aluminium Tube Filling And Sealing Machine With Dust Cover

Introduction:

The automatic aluminum tube filling machine is suitable for cosmetic, ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste materials. The outrigger mechanism of the machine is made of aluminum alloy and stainless steel.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

The automatic aluminum tube filling machine is suitable for cosmetic, ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste materials. The outrigger mechanism of the machine is made of aluminum alloy and stainless steel.

Automatic Cosmetic Lotion Aluminium Tube Filling And Sealing Machine With Dust CoverAutomatic Cosmetic Lotion Aluminium Tube Filling And Sealing Machine With Dust Cover

FEATURES

1. Compact design and auto tube feed. Driving part fully-closed.

2. Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.

3. Tube washing and feeding conducted pneumatically, accurate and reliable.

4. Auto picketage affected by photoelectric inductance.

5. Easy adjustment and dismantling

6. With easy and quick adjustment, it is suitable for using multiple kinds of soft tubes for filling.

7. The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to CMP for medicine manufacture.

8. With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed. Overload protection provided.

Automatic Cosmetic Lotion Aluminium Tube Filling And Sealing Machine With Dust CoverAutomatic Cosmetic Lotion Aluminium Tube Filling And Sealing Machine With Dust Cover

WORKFLOW

01

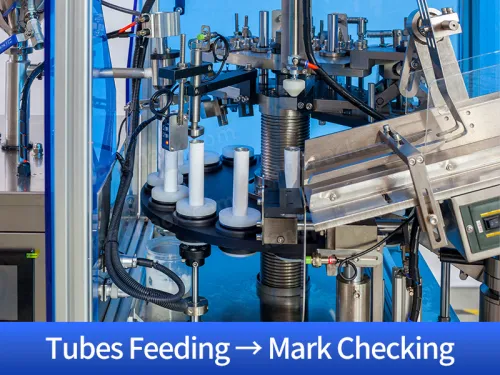

Autom tube hopper to feed tube one by one

02

Fixing tube tightly by pusher

03

Poistioning the tube with correct direction

04

Filling by piston pump

05

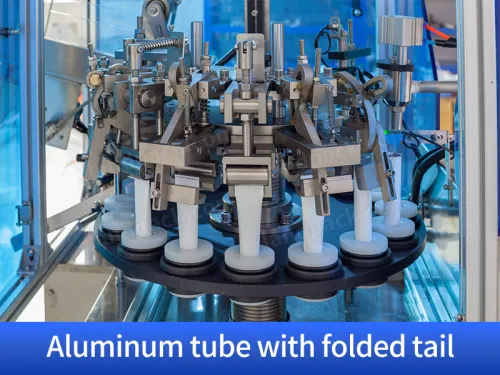

Pressing & Folding station

06

Coding

07

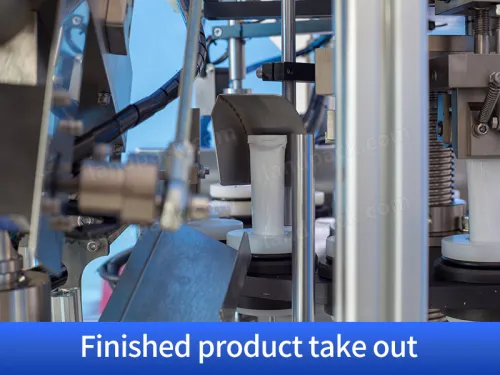

Product Out

PARAMETER

Automatic Cosmetic Lotion Aluminium Tube Filling And Sealing Machine With Dust CoverAutomatic Cosmetic Lotion Aluminium Tube Filling And Sealing Machine With Dust Cover
Model
LFF-ZWS-008
Tube materialAluminum / Metal tube
Tube diameter
φ15—φ70
Tube length50—180(customizable)
Filling volume
40—60ml/pcs(adjustable)
Filling accuracy≤±1%
Product capacity
3600—43600 pcs/h(adjustable)
Working pressure
0.55—0.65Mpa
Motor power
2KW (380V/220V 50Hz/60Hz, three phase)
Working Position
10Automatic Aluminum Tube Filling And Sealing Machine with Cover Pcs
