Automatic Cosmetic Lotion Piston Filling And Capping Machine Line With Shrink Wrapping Machine

Introduction:

This machine is used to fill various liquid, viscous liquid or thick liquid products, like cosmetic, lotion, shampoo, hand sanitizer, jam, potato sauce, body lotion, syrup, cooking oil, lube oil, beverage, body lotion and liquid fertilizer etc as long as it can flow.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Cosmetic Lotion Piston Filling And Capping Machine Line With Shrink Wrapping Machine

FEATURES

1. According to the needs of different configurations of automatic equipment assembly;

2. All the machine structures are selected and designed according to the food hygiene standards;

3. The inner wall of the container in contact with the material is polished;

4. The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as juice, edible oil, sauce, daily necessities, medicine, etc;

5. Complete set, the whole line is fully automatic, saving labor;

6. Piston-type measuring cylinder, servo drive, suitable for large particles of thick liquid filling.

Automatic Cosmetic Lotion Piston Filling And Capping Machine Line With Shrink Wrapping Machine

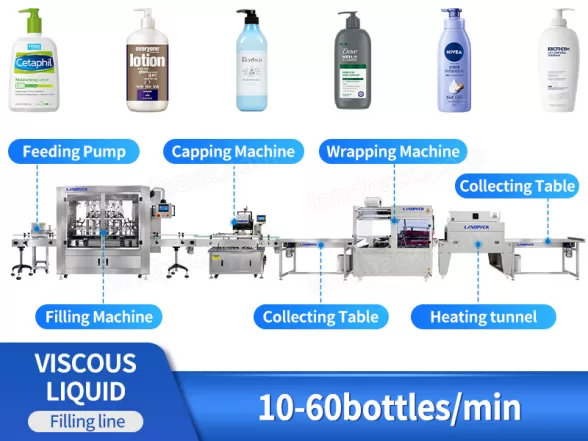

WORKFLOW

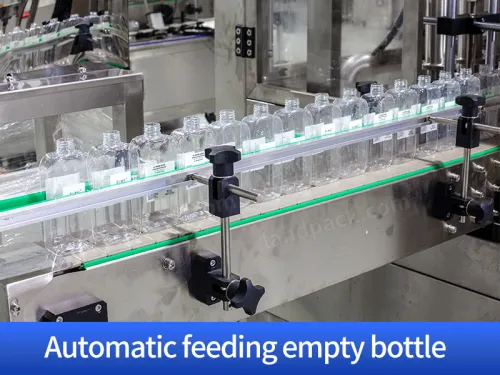

Automatic Feeding Empty Bottle

Bottle Liquid Filling

Automatic Bottle Capping

Automatic Shrink Film Wrapping

Heating Tunne

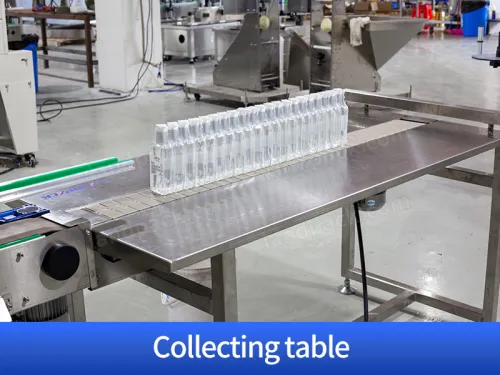

Collecting Bottle

PARAMETER

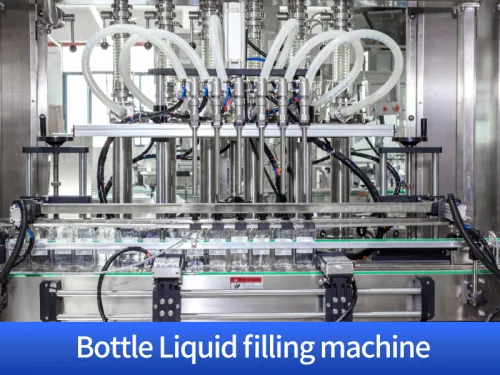

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

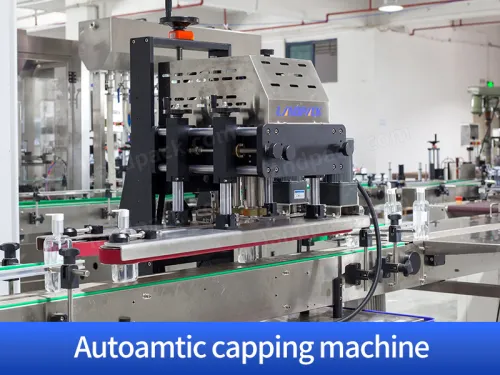

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

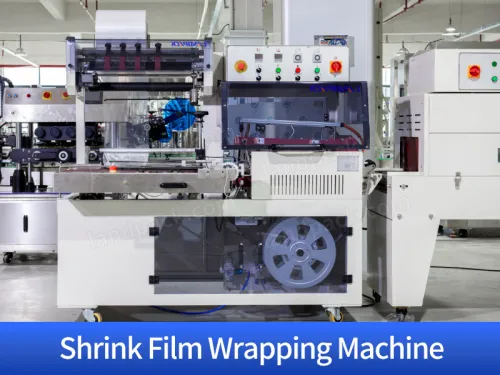

			Shrink Wrapping Machine
			Sealing Type	Continuous Sealing
			Installed Power	220V/ 60HZ
			Packing Capacity	Max. 40 Packs per Minute (Depends on Product Size)
			Sealing Height/ Packing Width	220MM/ 500MM
			Air Pressure	0.5MPA (5 BAR)
			Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
			Sealing Machine Dimensions	2600 X 1450 X 1680 MM

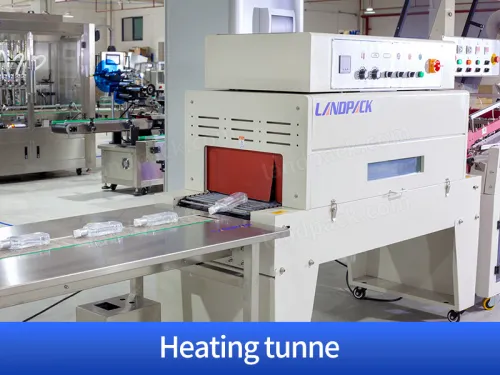

			Shrink Heat Tunnel
			Oven Size	1500MM (L), Entrance 600(W) X 300(H) MM
			Conveyor	Chains with Rotating Silicon Coated Rods
			Tunnel Machine Dimensions	1800 X 980 X 1560 MM
			Weight (Net/ Gross)	1000KGS/ 1100KGS (For Reference Only, Including Sealer and Tunnel)
