Cosmetic Creams & Lotions Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Cosmetic Creams & Lotions Packing Filling Machine / Line > Automatic Horizontal Premade Pouch Spout Bag Doypack Cosmetic Lotion Pouch Packing Machine

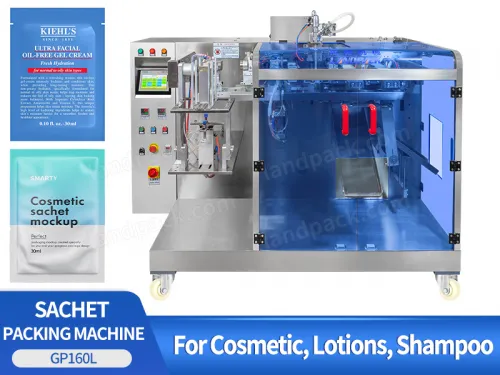

Automatic Horizontal Premade Pouch Spout Bag Doypack Cosmetic Lotion Pouch Packing Machine

Introduction:

It is suitable for liquid materials such as cosmetic lotion, milk, honey, ketchup, tomato sauce, salad dressing, laundry detergent, sauce, rice vinegar, beverages, peanut butter, jam, paste, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

It is suitable for liquid materials such as cosmetic lotion, milk, honey, ketchup, tomato sauce, salad dressing, laundry detergent, sauce, rice vinegar, beverages, peanut butter, jam, paste, etc.

Automatic Horizontal Premade Pouch Spout Bag Doypack Cosmetic Lotion Pouch Packing Machine

FEATURES

1. Adopted PLC simens brand intelligent design easy operate.

2. Speed 15-30 bags per minute can meet end customers' start and middle-class requirements.

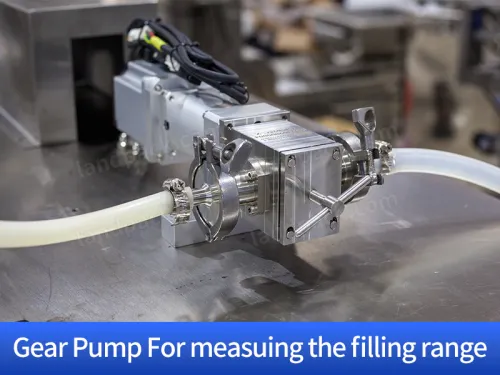

3. Gear pump for measuring contact part SS316.

4. Full frame SS304 high hygiene easy clean.

Automatic Horizontal Premade Pouch Spout Bag Doypack Cosmetic Lotion Pouch Packing Machine

WORKFLOW

01

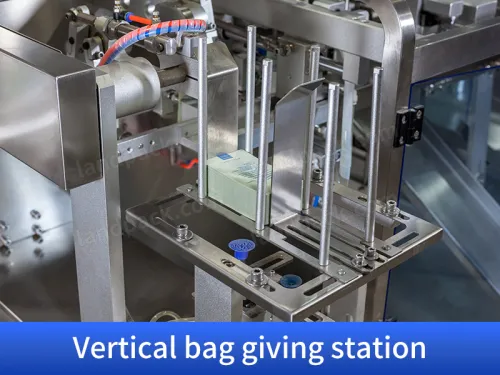

Pouch Loading

02

Pouch Picking

03

Pouch Opening

04

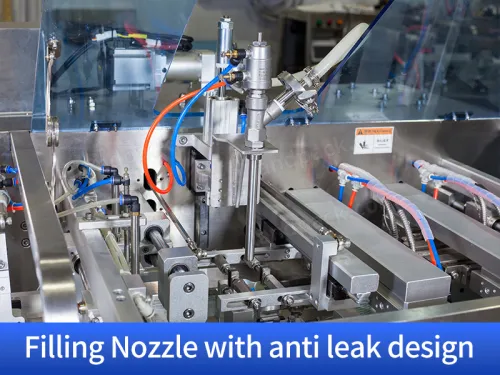

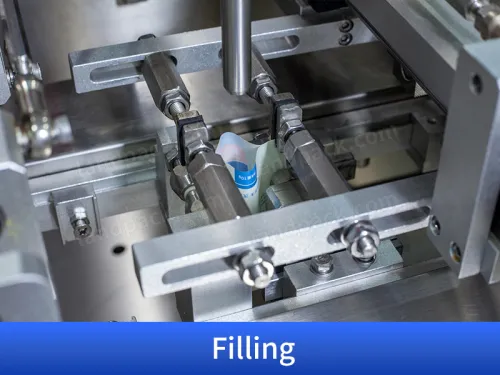

Liquid Filling

05

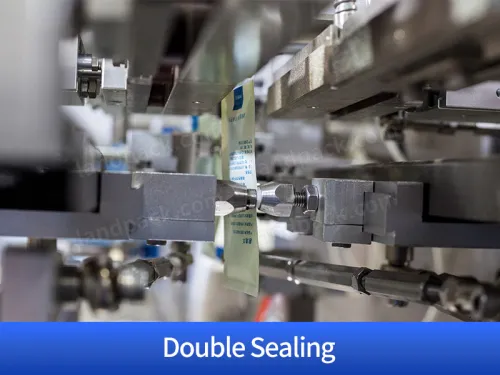

Pouch Sealing

PARAMETER

Automatic Horizontal Premade Pouch Spout Bag Doypack Cosmetic Lotion Pouch Packing MachineHorizontal Premade Pouch Packing Machine
TypeLDSP-160LDSP-160YLDSP-210LDSP-260
Bag Type3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.


Bag Size110-230mm*80-160mm(L*W)70-100mm*110-230(L*W)100-210mm/110-320mm(L*W)100-260mm/110-320mm(L*W)
Filling Range10g-100g10g-100g10g-1kg10g-3kg
Packing Speed20-45bags/min(speed is determined 25-50bags/min(speed is determined 20-50bags/min (speed is determined20-50bags/min (speed is determined

by the product filling quantity)by the product filling quantity)by the product filling quantity)by the product filling quantity)
Machine weight800KG800KG900KG1000KG
Total Power2.0KW2.0KW2.0KW2.0KW
Work Flow1.Giving bag     2. Pick up the bag(coding)     3.Open the bag up and down     4.Filling



5.Heating sealing     6.Output of product


Dimensions1750mm X 1285mm X 1360mm(L*W*H)
2140mm X 1366mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)
CollocationScrew metering,screw elevator


Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
