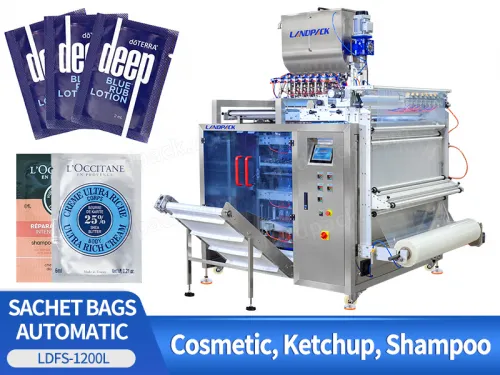

Automatic Multi Lane Lotion Cosmetic Cream Sided Sealing Bag Filling Packing Machine

Introduction:

The multi-lane cosmetic lotion liquid filling and packing machine is ideal for various liquid materials, including cosmetic creams, lotions, mayonnaise, ketchup, tomato sauce, syrups, peanut butter, shampoos, pizza sauces, honey, pastes, oils, hand sanitizers, and laundry detergents.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Multi Lane Lotion Cosmetic Cream Sided Sealing Bag Filling Packing Machine

FEATURES

1. This is the largest multi-lane packing machine, accommodating a maximum roll film width of 1200mm.

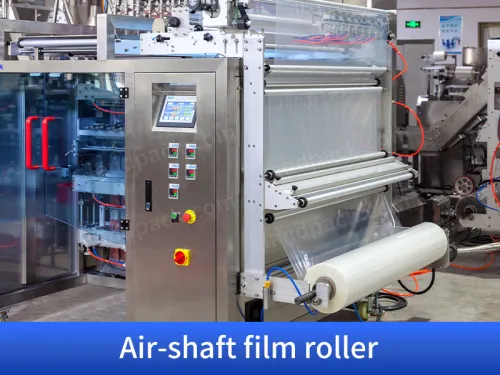

2. The air-shaft film roller allows for easy replacement of the film roller.

3. A multi-head ribbon date printer is included to print date information on each lane.

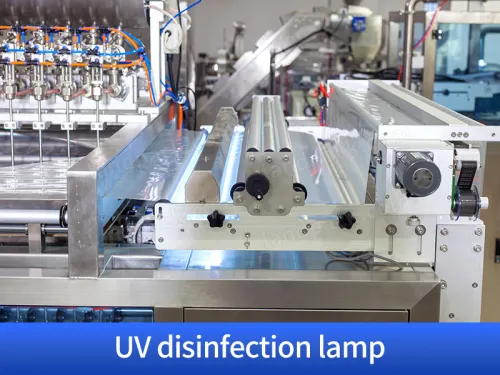

4. A UV disinfection lamp ensures the packaging film's hygiene.

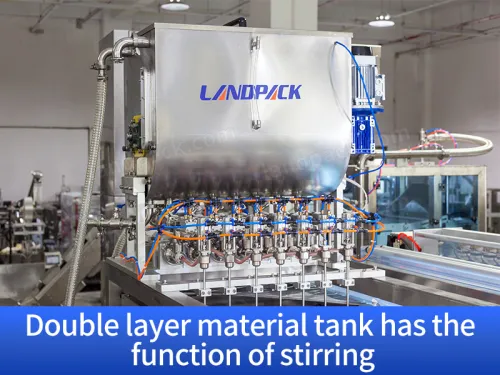

5. The double-layer material tank features stirring and heating functions for improved sauce fluidity.

Automatic Multi Lane Lotion Cosmetic Cream Sided Sealing Bag Filling Packing Machine

WORKFLOW

Bag Formation

Liquid Filling

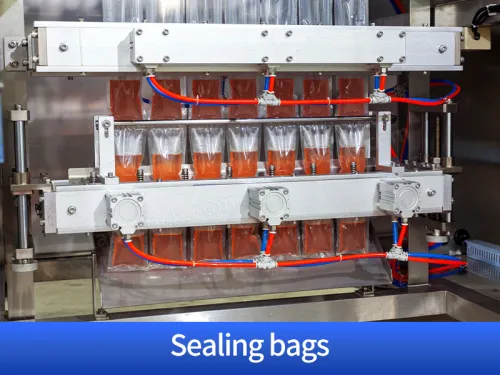

Sealing

Cutting

Batch Coding

Counting

Finished Product Output

PARAMETER

Automatic Liquid Sachet Packing Machine
Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1. Piston pump; 2. Peristaltic Pump
Capacity	Max.40 cycles/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8mm³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
