Automatic Detergent Mixing Filling Capping And Labeling Line Wtih Heat Shrink Wrapping Machine

Application:

It is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as liquid detergent, liquid soap, dish wash, juice, sauce, daily necessities, medicine, mobility liquid, shampoo, honey, olive oil, glass water, hand sanitizer, shower gel, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Detergent Mixing Filling Capping And Labeling Line Wtih Heat Shrink Wrapping Machine

FEATURES

1. 4T mixing tank, automatic loading material to filling line after filling.

2. Six heads gear pump filling machine suitable for filling medium and low viscosity liquid,easier to clean than piston.

3. Capping machine suitable for a variety of cover type.easy to adjust.

4. Automatic double sides labeling machine suitable for labeling one side,two sides and round side in one machine

5. Automatic sleeve bottles and shrink, save labor.

6. Wrapping film packing machine ,easy to transport.

Automatic Detergent Mixing Filling Capping And Labeling Line Wtih Heat Shrink Wrapping Machine

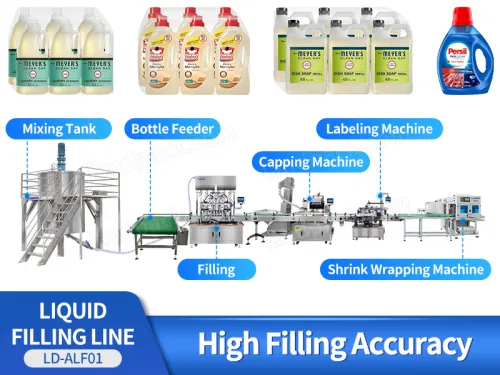

WORKFLOW

Automatic Mixing And Heating

Automatic Bottle Feeder

Automatic Bottle Liquid Filling

Automatic Capping

Automatic Labeling

Shrink Wrapping

PARAMETER

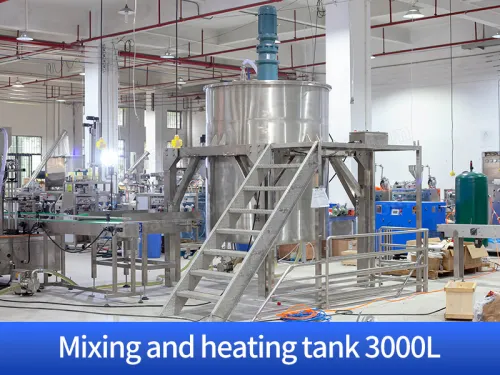

			Mixing and heating tank 3000L
			Material	SS 304
			Heating type	electric heating
			Tank diamter	1500mm
			Tank capacity	3000L

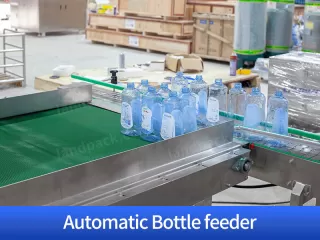

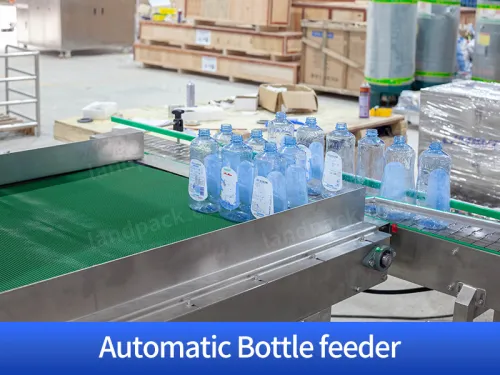

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

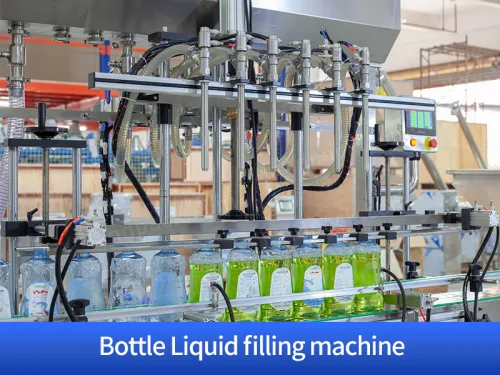

Bottle Liquid filling machine
Model	LFZ-06	LFZ-08
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<20-35 bottles/min	<30-40 bottles/min
Measurement Accuracy	±1%	±1%
Power	2.5KW	3.5KW
Voltage	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa
Weight	650kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)

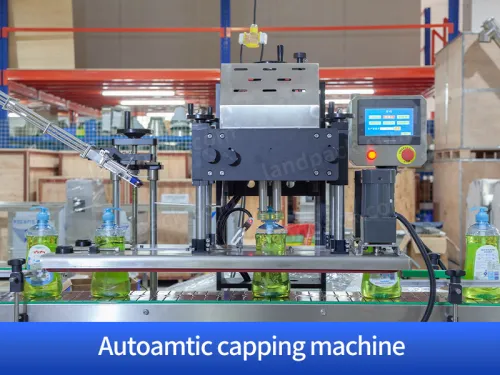

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

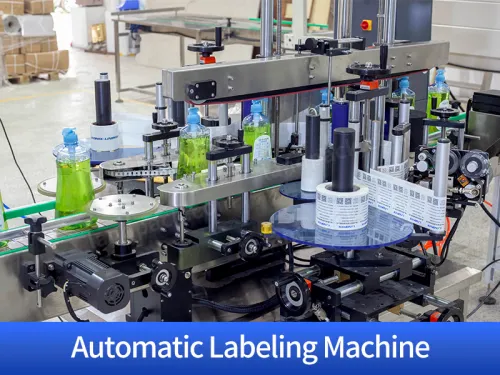

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

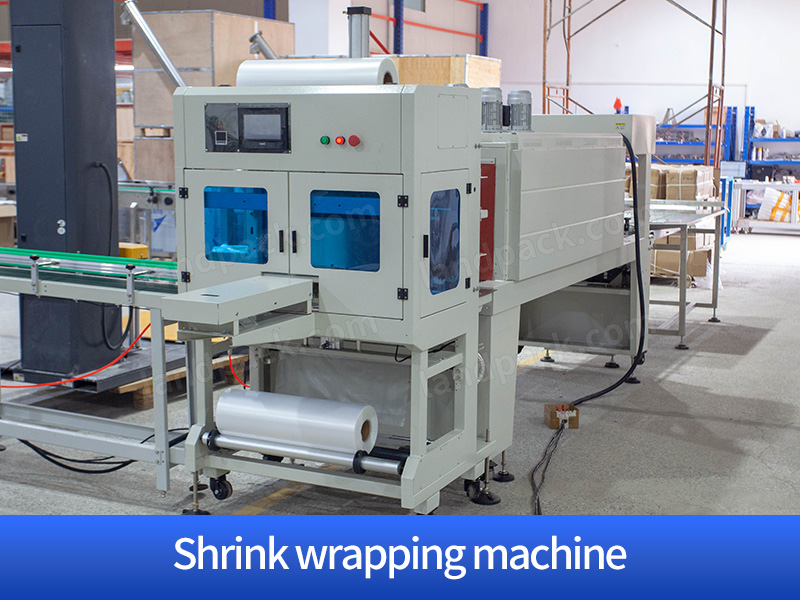

			shrink wrapping machine
			Voltage	Sleeve machine220V can be customized,shrinik machine must 380V
			Power	1.3KW/18KW
			Sleeve machine packing size	Max 420330330mm min 2506060mm
			Packing speed	0-6 pieces per minute
			Tunnel size	1500600400mm
			Tunnel out dimension	25008501520
			Sleeve out dimension	1500600402mm
