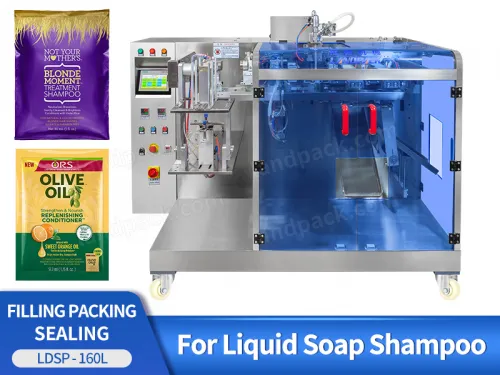

Automatic Liquid Detergent Gear Pump Horizontal Premade Pouch Doypack Filling Sealing Machine

Introduction:

This liquid premade pouch packing machine is designed to handle a wide variety of liquid products and is compatible with different types of premade pouches. It is ideal for packaging liquids such as laundry detergent, honey, milk, oils, ketchup, pastes, sauces, fruit juices, chili sauce, sunflower oil, tomato sauce, and more.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Detergent Gear Pump Horizontal Premade Pouch Doypack Filling Sealing Machine

FEATURES

1. Equipped with Siemens brand PLC for intelligent design, ensuring easy operation.

2. With a speed of 15-30 bags per minute, it meets the needs of both entry-level and mid-range production requirements.

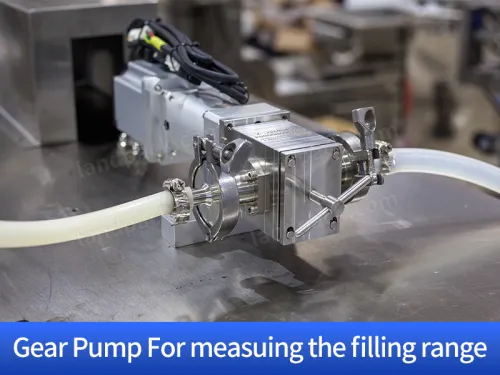

3. Uses a gear pump for precise measurement, with all contact parts made from SS316 stainless steel.

4. Constructed with a full SS304 stainless steel frame, providing high hygiene standards and easy cleaning.

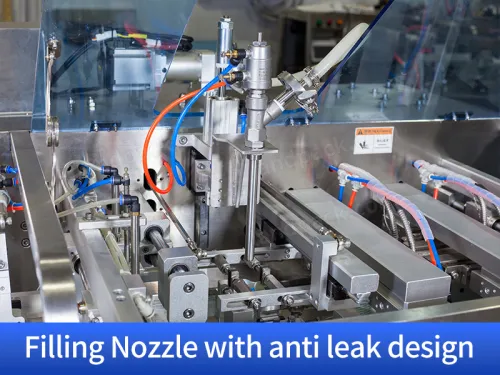

5. Filling nozzle features an anti-leak design to prevent spills.

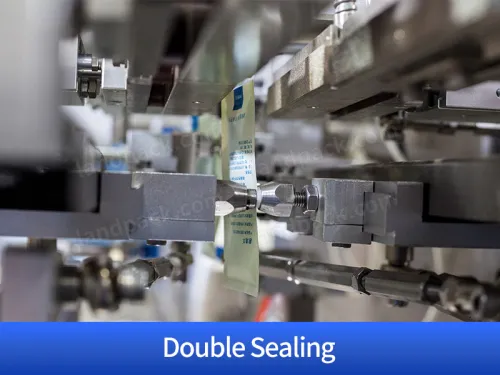

6. Dual sealing mechanism ensures a tight and secure seal.

Automatic Liquid Detergent Gear Pump Horizontal Premade Pouch Doypack Filling Sealing Machine

WORKFLOW

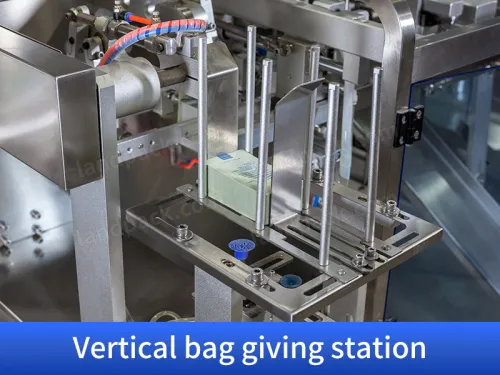

Bag Feeding

Bag Opening

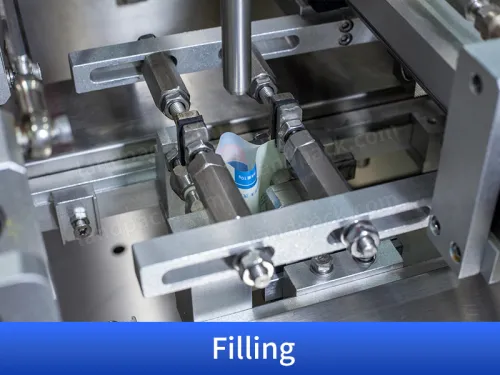

Filling

Sealing

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
