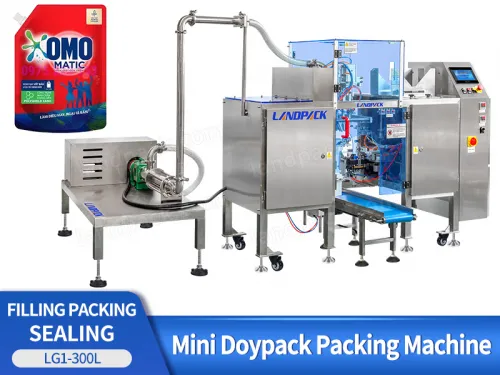

Automatic Liquid Detergent Premade Pouch Mini Doypack Filling Sealing Machine

Introduction:

This doypack filling and sealing machine is suitable for liquid filling product such as detergent liquid, chutney, bean paste, instant noodle sauce, ketchup, paste, honey, cream, milk, butter, water, oil, vinegar, liquid seasoning, shampoo, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Liquid Detergent Premade Pouch Mini Doypack Filling Sealing Machine

FEATURES

1.Ease of Operation: Simple to use with minimal manual intervention.

2.Automatic Error Checking: Detects errors like no pouch, pouch not open, no filling, or no sealing, reducing wastage.

3.Safety Features: Includes an automatic stop for abnormal air pressure and alarms for heater issues, ensuring safety.

4.Adjustable Bag Width: Customizable for different packaging sizes.

5.Glass Safety Door: Stops the machine when the door is opened to protect the operator.

6.Low Material Loss: Minimizes waste while delivering high-quality sealing for better product presentation.

Automatic Liquid Detergent Premade Pouch Mini Doypack Filling Sealing Machine

WORKFLOW

Piston Metering Device

Zip Lock Openning

Up/Down Bag Opening

One Heads Filling

Twice Heating Sealing

Finished Product Ouput

PARAMETER

Type	Economic Liquid Premade Stand Up Pouch Doypack Filling Sealing Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase	Gusset Bag, Zipper Bag, box bag
	of functional device）	(Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case
