Detergent Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Detergent Packing Filling Machine / Line > Automatic Liquid Detergent Rotary Packing Machine Premade Stand Up Pouch Packing Machine

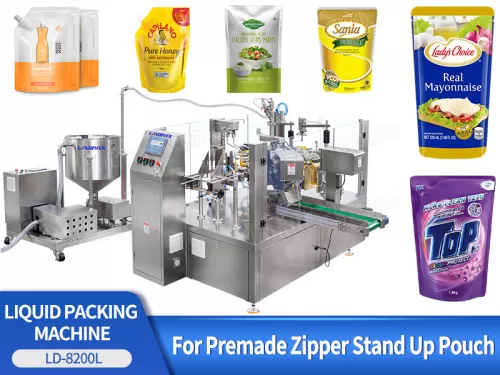

Automatic Liquid Detergent Rotary Packing Machine Premade Stand Up Pouch Packing Machine

Introduction:

Landpack automatic liquid rotary packing machine premade stand up pouch packing machine, it is suitable for all kinds of liquid packing , such as liqiud detergent, shampoo, sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Landpack automatic liquid rotary packing machine premade stand up pouch packing machine, it is suitable for all kinds of liquid packing , such as liqiud detergent, shampoo, sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.

Automatic Liquid Detergent Rotary Packing Machine Premade Stand Up Pouch Packing Machine

FEATURES

1. Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)

2. Easy to operate: PLC and color panel, fault indication on the panel.

3. Easy to adjust: Only about 10 minutes to change different pouches.

4. Frequency control: Speed can be adjusted by frequency conversion within the range.

5. Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.

6. No pouch/incorrect pouch opening-no fill-no seal, machine alarm.

7. Machine alarm and stop when the inadequate air pressure.

8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.

10. Imported engineering plastic bearings, no need to oil, no contamination.

11. Oil-free vacuum pump, avoid the pollution of the production environmental.

Automatic Liquid Detergent Rotary Packing Machine Premade Stand Up Pouch Packing Machine

WORKFLOW

01

Autoamtic Bags Feeding

02

Bag Open

03

Automatic Filling

04

Automatic Sealing

PARAMETER

Automatic Liquid Detergent Rotary Packing Machine Premade Stand Up Pouch Packing MachineModelLD-8200D/ 8240D/ 8300D
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
sizeW: 100-300mm L: 100-450mm
Filling range5-2500g (Depending on type of products)
Packing speed25-60 bags/min (The speed depends on type of products and packaging material used)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
