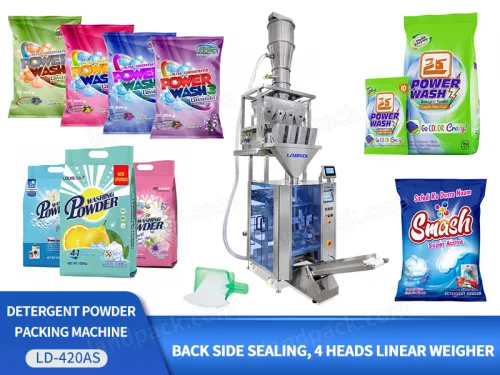

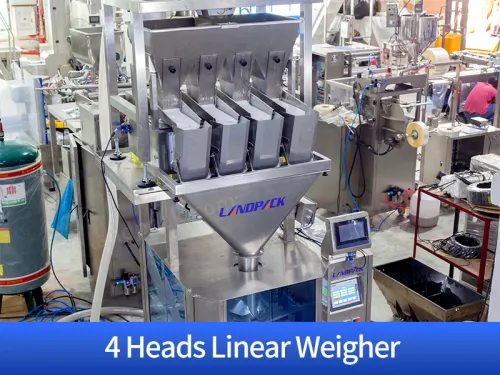

Automatic 4 Heads Linear Weigher Packing Machine For Laundry Detergent Powder Washing Soap Powder

Introduction:

This machine is a new generation of intelligent weighing and packaging machine, suitable for the packaging of powder products that require precise weighing.Such as washing powders, laundry soap powder, detergent powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 4 Heads Linear Weigher Packing Machine For Laundry Detergent Powder Washing Soap Powder

FEATURES

1. English and Chinese screen display, support multi-language customization. the operation is easy and simple.

2. PLC computer control system, screw rotary measuring, more stable performance, can be adjusted any parameters not need stop machine.

3. It can stock ten group parameters, simple to change variety.

4. Adopting servo motor drawing film, the position is more accurately.

5. Independent temperature control system, precision can reach ±1℃.

Automatic 4 Heads Linear Weigher Packing Machine For Laundry Detergent Powder Washing Soap Powder

WORKFLOW

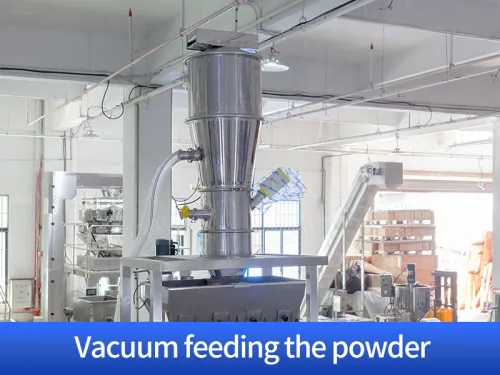

Powder Feeding

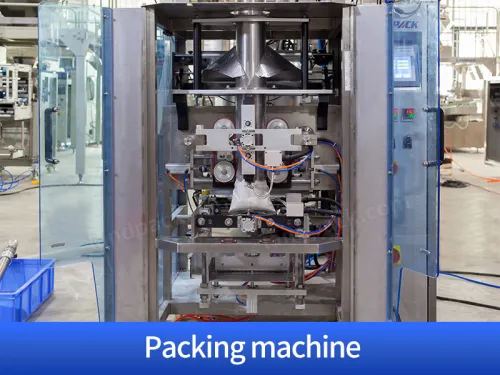

Roll film bag making

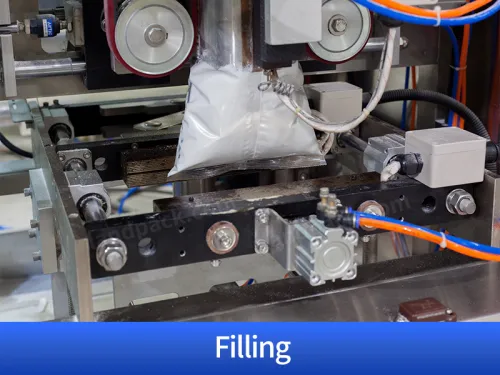

Automatic Filling

Automatic Sealing

PARAMETER

Automatic 4 Heads Linear Weigher Packing Machine For Laundry Detergent Powder Washing Soap Powder
Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
