Introduction:
This machine is ideal for the precise packaging of powdered and micro-powdered materials, including detergent powder, flour, milk powder, pesticides, veterinary medicine, food seasonings, desiccant, enzymes, dyes, chemical agents, additives, and more.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
This machine is ideal for the precise packaging of powdered and micro-powdered materials, including detergent powder, flour, milk powder, pesticides, veterinary medicine, food seasonings, desiccant, enzymes, dyes, chemical agents, additives, and more. It ensures efficient and accurate packaging for a wide range of applications.
FEATURES
1.Fully Automated Process: Handles all stages from feeding, filling, measuring, and bag making to bagging, sealing, date printing, and finished product output.
2.High-Precision Servo System: Equipped with a servo film conveying system, offering a measurement accuracy of ±0.5g, with PLC control, advanced positioning, photoelectric tracking, and digital temperature control for optimal performance.
3.Simplified Operation: Designed to enhance user experience with easy-to-use controls, it speeds up production to 80 packs per minute, boosts efficiency, reduces labor costs, and elevates the quality of packaging.
4.Versatile Packaging Materials: Compatible with a wide range of heat-sealing materials, including PE, PE/aluminum plating, PET/PE, and PP.
5.Intuitive Touch Screen: Features a high-sensitivity touch interface with the ability to store 8 sets of parameters and supports multiple languages for diverse user needs.
WORKFLOW

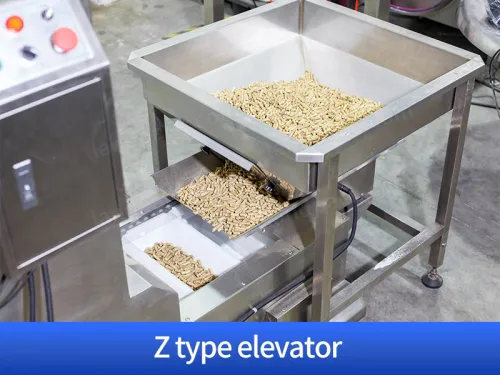

Powder Feeding
Roll film bag making
Automatic Filling

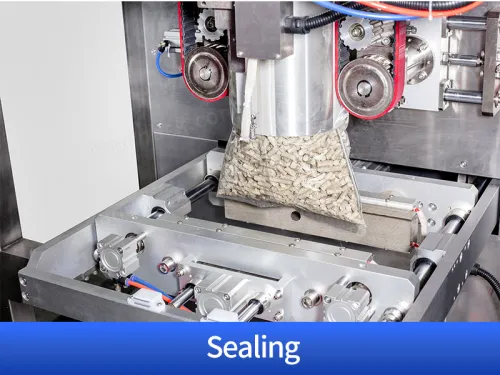

Automatic Sealing
PARAMETER

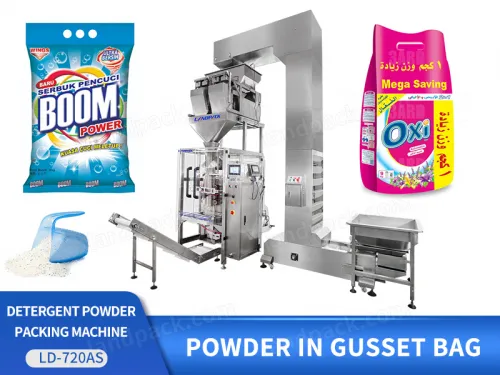

Detergent Powder Pouch Packing Machine | |||||
Model | LD-420 | LD-520 | LD-720 | LD-900 | |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | |
Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L |
