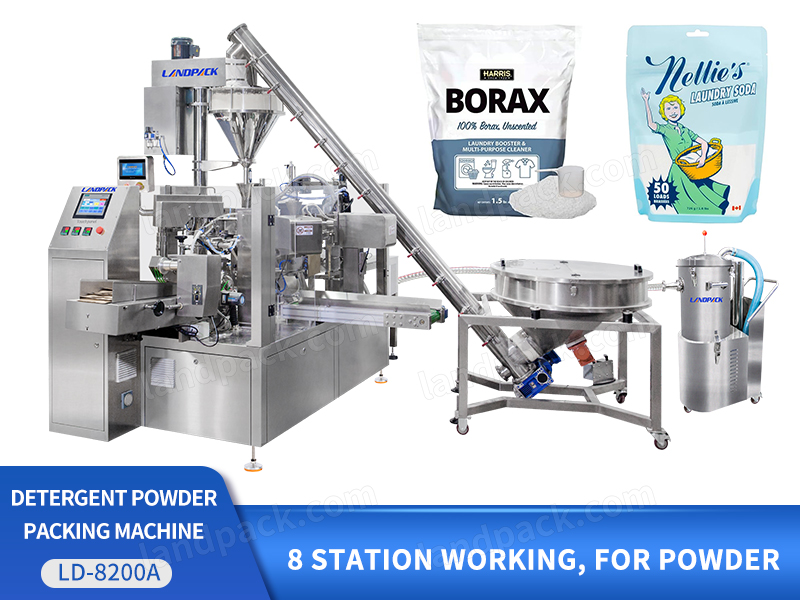

Automatic Detergent Powder Doypack Filling Sealing Machine

Introduction:

Ideal for packing fine dry powder materials, including detergent powder, milk powder, coffee powder, cocoa powder, chili powder, laundry powder, coconut powder, corn flour, fruit powder, collagen protein powder, and spices powder. This machine combines metering, bagging, packing, sealing, date printing, and counting into a seamless and efficient process.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Detergent Powder Doypack Filling Sealing Machine

FEATURES

1.Multi-Language Support: Features an English and Chinese display, with the option for customized language settings, ensuring user-friendly operation.

2.Advanced PLC Control System: Provides stable and reliable performance with the flexibility to adjust settings without stopping the machine.

3.Parameter Memory Function: Capable of storing up to 10 sets of parameters, making it easy to switch between different product varieties.

4.Precise Temperature Control: Equipped with an independent temperature control system that maintains accuracy within ±1°C.

5.Complete Packaging Process: Automatically handles weighing, filling, packing, sealing, and printing of dates, offering a fully integrated solution.

6.Low Noise Operation: Designed to operate quietly, reducing noise pollution during production for a more comfortable working environment.

7.User-Friendly Interface: Simplified touch screen control, making adjustments and settings intuitive and hassle-free.

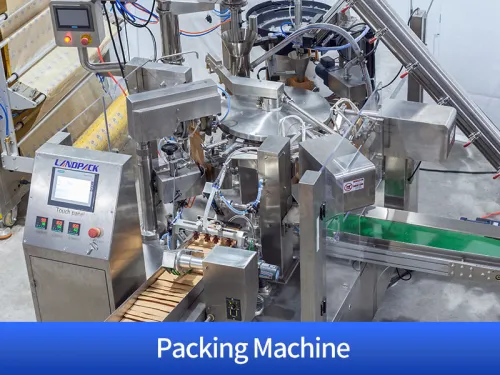

Automatic Detergent Powder Doypack Filling Sealing Machine

WORKFLOW

Powder Screw Feeder

Feeding the Premade Pouch

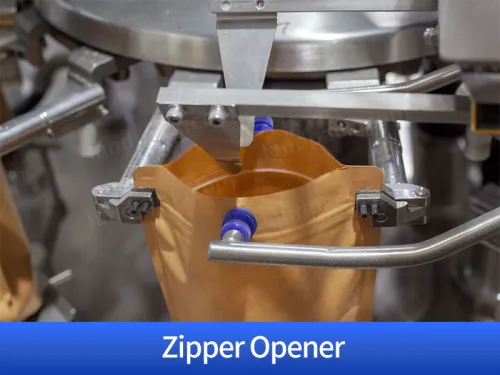

Opening the Premade Pouch

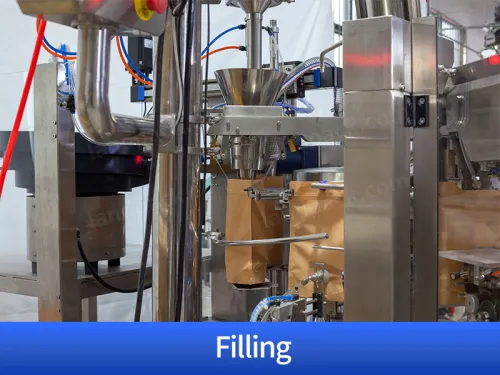

Automatic Filling

Automatic Spoon

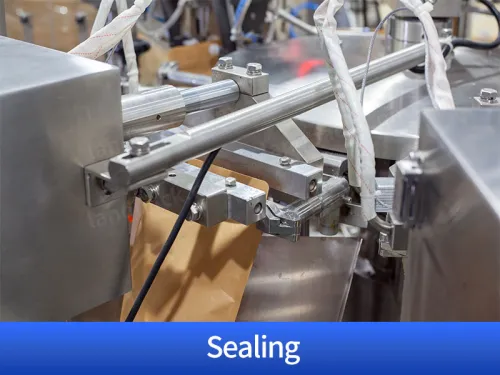

Automatic Premade Pouch Sealling

Finish Product Outing

PARAMETER

	Automatic Powder Doypack Packing Machine
	Model	LD-8200
	Bag Size	L: 120~550 mm
	Bag Size	W: 80~400 mm
	Filling Range	10~3000g
	Packing Speed	30~50 bags/min
	Air Consmption	≤ 0.6m³/min
	Machine Voltage	220V/380V , 50/60Hz
	Total Power	2.8 KW
	Machine Size	245018801900 mm
	Machine Weight	750 KG
