Applications

Full Automatic Premade Doypack Stand Up Pouch Detergent Powder Filling And Packaging Machine

Introduction:

Ideal for packaging various powders, such as chemical powder, washing powder, detergent powder, vegetable powder, spice powder, and tea powder. Delivers accurate and efficient packing solutions for a wide range of industries.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Full Automatic Premade Doypack Stand Up Pouch Detergent Powder Filling And Packaging Machine

FEATURES

1. Ideal for large-sized bags, featuring automatic metering, filling, and sealing functions.

2. The advanced bag-feeding system ensures a high bag dispensing rate.

3. The cutting-edge design guarantees stable equipment operation, reducing defects and extending the machine's lifespan.

4. High-quality components are used to maintain long-term machine stability.

5. Utilizes pre-made bags with excellent packaging graphics, superior vacuum sealing, and enhanced sealing quality, significantly improving the product's overall quality and appeal.

Full Automatic Premade Doypack Stand Up Pouch Detergent Powder Filling And Packaging Machine

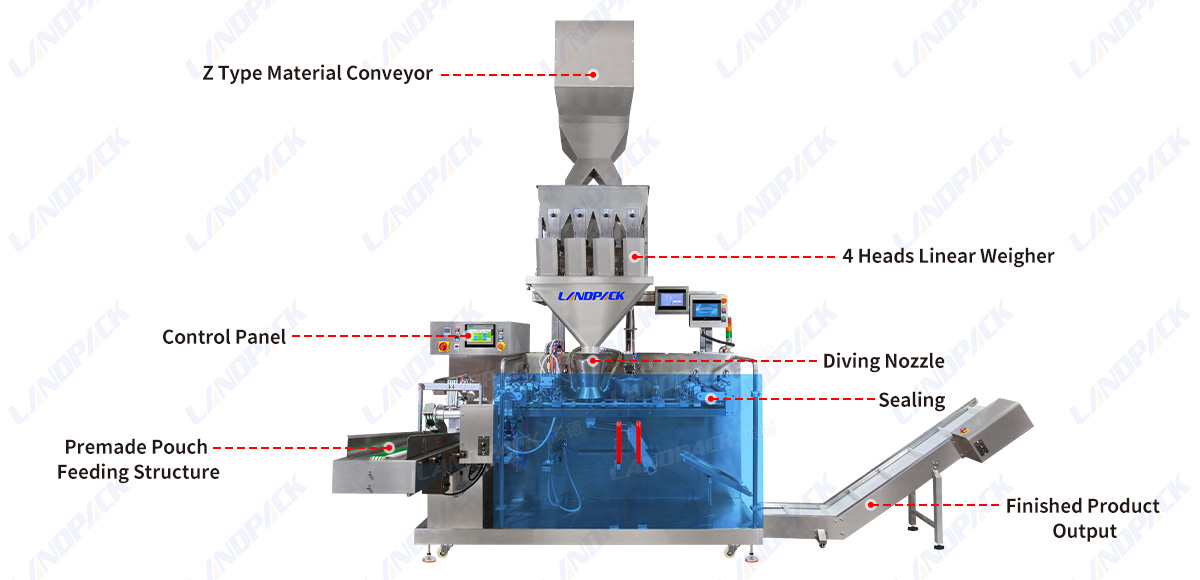

WORKFLOW

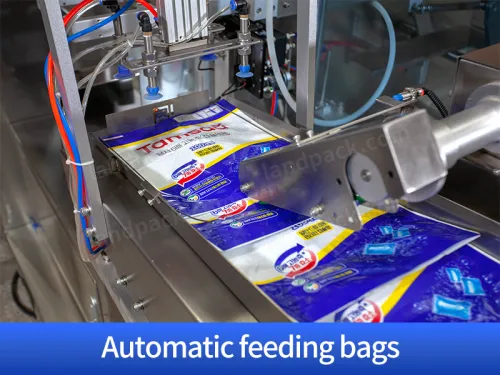

Feeding the zipper doypacks

Picking the bags and coding

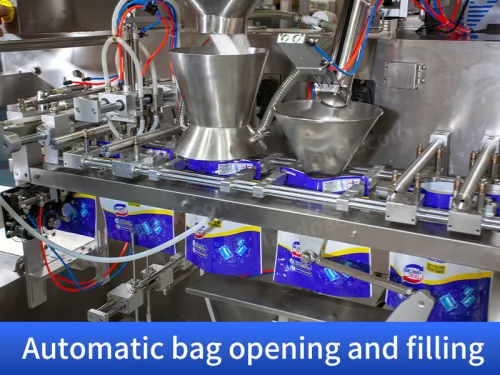

Opening the zip bags

Auger screws filling with dust cleaning

Arranging

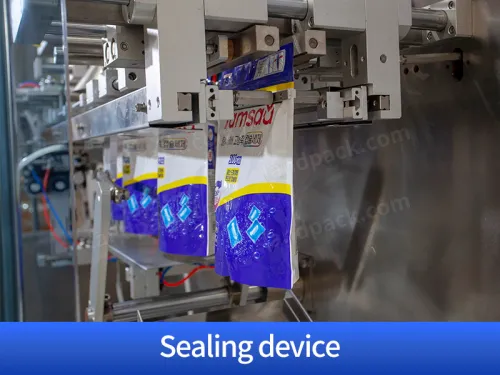

Sealing

PARAMETER

Automatic Powder Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
