Applications

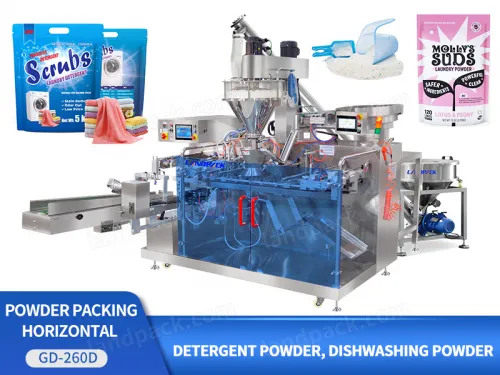

Multi-function Bleaching Powder Laundry Detergent Powder Washing Powder Doypack Packing Machine

Introduction:

This machine is designed for doypack,with functions of making hanging hole, special shape or zipper. It is suitable for detergent powder, sugar, salt, seeds, glucose, rice and small granular materials.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Multi-function Bleaching Powder Laundry Detergent Powder Washing Powder Doypack Packing Machine

FEATURES

1. Versatile Metering Devices: Capable of packaging a wide range of materials, including powders, liquids, granules, sauces, and more.

2. Multiple Bag Types: Easy to switch between different bag styles for greater flexibility.

3. User-Friendly Design: Simple structure, ensuring ease of operation and minimal training.

4. Automatic alarming function and stop when the inadequate air pressure.

5. Effective Sealing: Offers both hot and cold sealing options for smooth, reliable seals.

6. Optional Features: Includes options for hang hole cutting and top spout addition for added customization.

Automatic Milk Powder Horizontal Premade Zipper Stand Up Gusset Pouch Packing Machine

WORKFLOW

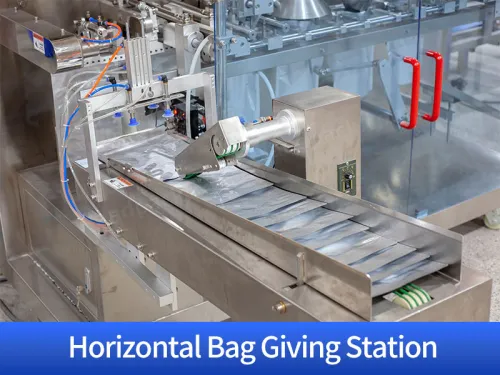

Feeding the zipper doypacks

Picking the bags and coding

Opening the zip bags

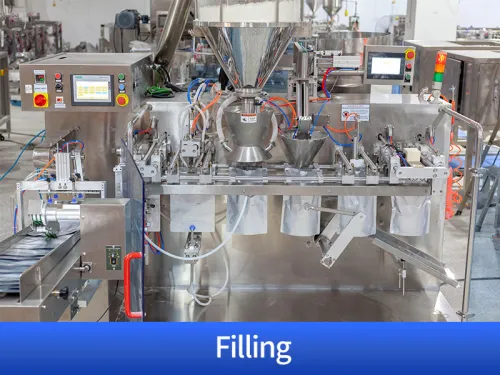

Auger screws filling with dust cleaning

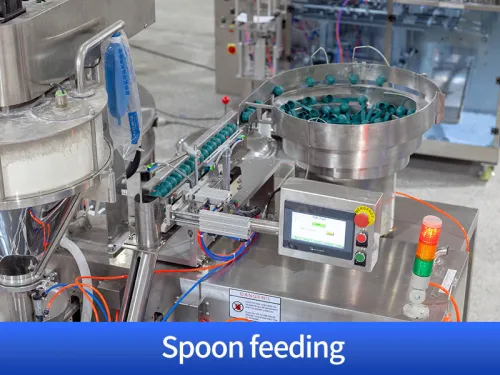

Spoon feeding

Arranging

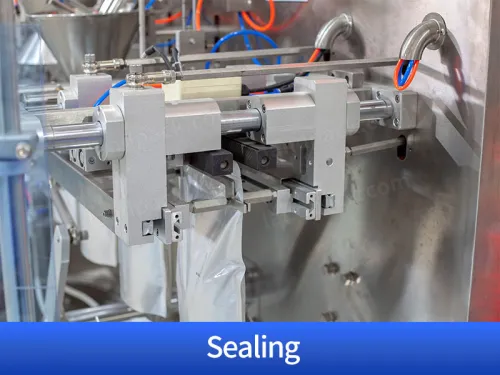

Sealing

PARAMETER

Automatic Powder Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
