Applications

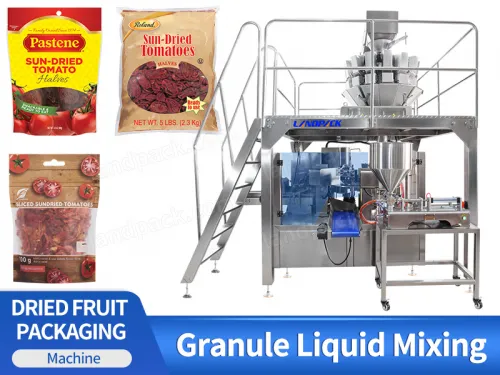

Automatic Rotary Premade Pouch Dried Fruit Granule Liquid Mixing Filling Packing Machine

Application:

This machine is suitable for packaging various granular materials in food, daily chemical, agriculture and other industries, such as: sugar, salt, MSG, dried fruits, coffee beans, nuts, beans, seeds, grains, potato chips, candy, onion rings, frozen food, pet food, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Rotary Premade Pouch Dried Fruit Granule Liquid Mixing Filling Packing Machine

FEATURES

1. The machine can automatically complete a series of processes including bag taking, bag opening, coding, measuring, filling, sealing, and finished product output.

2. Equipped with servo control, according to the change of packaging speed, it can automatically adjust the parameters of bag delivery and suction bag, without manual debugging, and the machine runs stably.

3. High degree of Automation: In the process of weighing and packaging ,it realizes unmanned and automatic alarm for faults.

4. Intelligent Temperature Control System: Maintain the stability of the seal ,the packaging quality is guaranteed.

5. Low Packaging Loss: The use of prefabricated packaging bags, sealing quality is good, high-grade products.

6. The whole machine is made of SUS304 stainless steel, and the surface is frosted, which has better anti-corrosion and anti-oil performance, and improves the service life of the machine.

Automatic Rotary Premade Pouch Dried Fruit Granule Liquid Mixing Filling Packing Machine

WORKFLOW

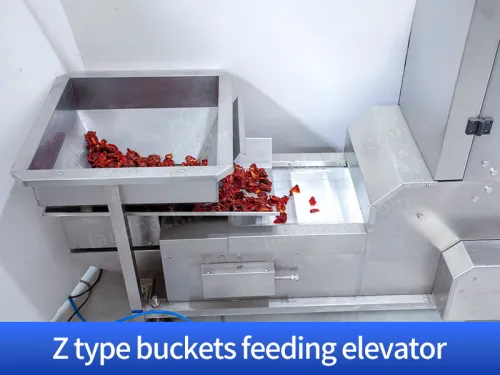

Z Type Buckets Feeding

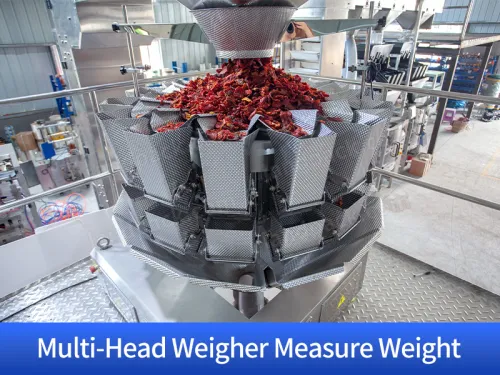

Multi Heads Weigher

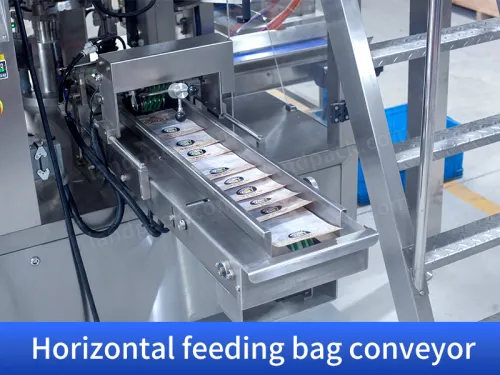

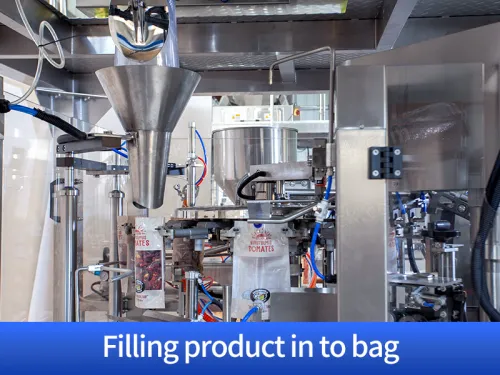

Pouch Picking Opening Filling

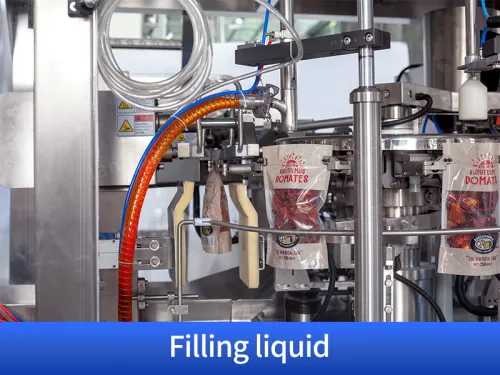

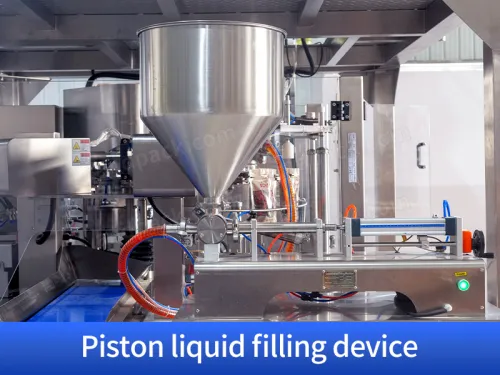

Liquid Filling

Output

PARAMETER

			Automatic Doypack Packing machine
			Model	LD-8200/LD-8250
			Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
			Size	W: 70-200/100-250mm
			Filling range	10-1000g/20-2500g
			Packing speed	40-60bags/min（speed is determined by the product filling quantity）
			Average precision	≤ ±1%
			Total Power	2.5 KW
			Dimensions	1900mm1570mm1700mm（LWH）
			Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
			Main standard parts	1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperaturecontroller 8. Vacuum pump 9. Inverter 10. Output system
