Dried Fruit Packing Machine / Line

Home > Applications > Granule Packing Filling Machines / Line > Dried Fruit Packing Machine / Line > Automatic Vertical Dried Fruit Pouch VFFS Packing Machine With Measuring Cup

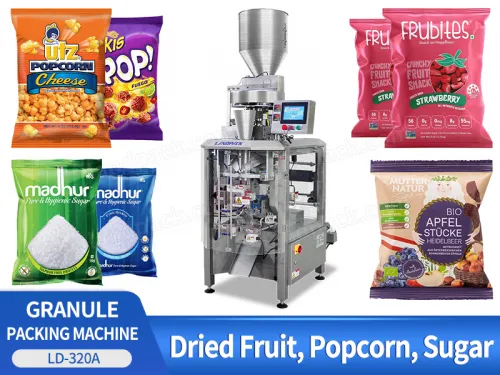

Automatic Vertical Dried Fruit Pouch VFFS Packing Machine With Measuring Cup

Application:

Suitable for various granlue material in pillow pouch style, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Suitable for various granlue material in pillow pouch style, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Automatic Vertical Dried Fruit Pouch VFFS Packing Machine With Measuring Cup

FEATURES

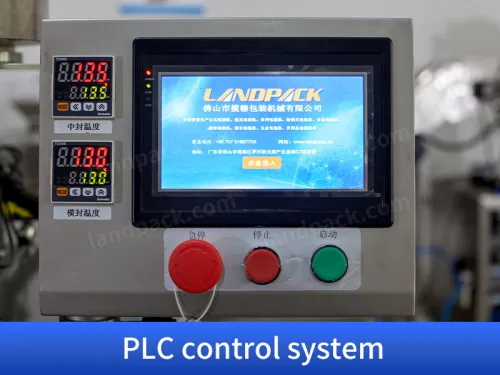

1. Computerized touch screen, easy to adjust and operation, and easy to change products, with the exception appearance system,easily and rapidly to repair;

2. Could automatically to finish making bags, sealing, printing, and optional functions;

3. Design with alarming for clipping material, door unclosed, rolled film in wrong position, no print tape, no rolled film, etc;

4. The advanced design ensures that it is very convenient for adjustment, operation, and maintenance when different profession use it;

Automatic Vertical Dried Fruit Pouch VFFS Packing Machine With Measuring Cup

WORKFLOW

01

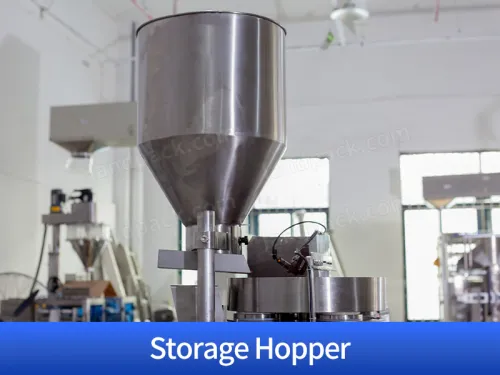

Storage Hopper

02

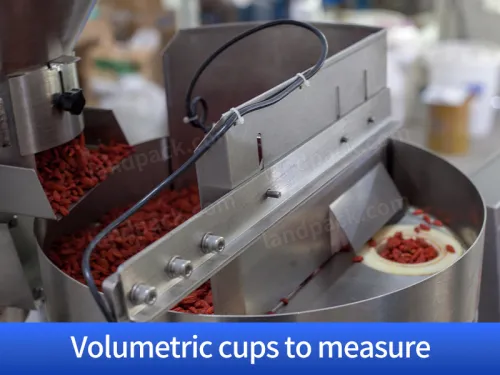

Volumetric Cup Measuring

03

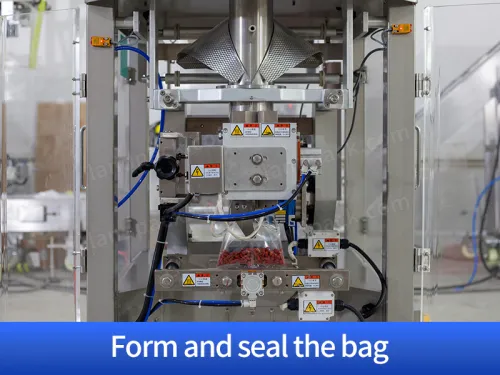

Bag Form Fill Seal

04

Finished Product Output

PARAMETER

Automatic Vertical Dried Fruit Pouch VFFS Packing Machine With Measuring CupVertical Packing Machine
Model LD-320LD-380
Film width 120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film roll Max.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness 0.04-0.07mm
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)970*680*1950mm1100*800*2150mm
Machine weight About 300kgAbout 450kg
