Applications

Automatic Vertical Packing Dry Fruit Mixed Nuts Sachet Packing Machine System

Application:

Landpack automatic weighing packing machine requirement for high precision measurement and fragile packaging bulk objects, such as: dry fruit, puffed food, snack food, crispy rice, fruit cold, candy, candy, pistachio, apple slices, dumplings, rice balls, chocolate, hardware items, medicines, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Vertical Packing Dry Fruit Mixed Nuts Sachet Packing Machine System

FEATURES

1.Full-automatic weigh-form-fill-seal type, efficient and simple to use.

2.Use famous brand electric and penumatic components,stable and long life circle.

3.Use superior mechanical components, reduce the wear outless.

4.Easy to install film, auto correcting the excursion of the film.

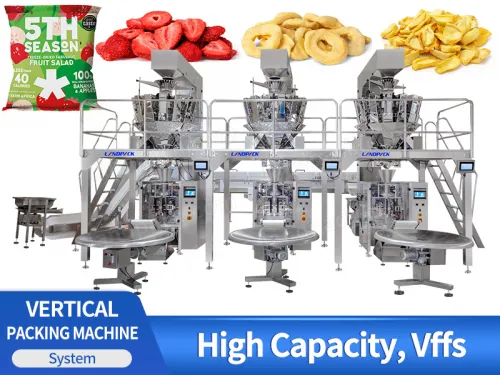

Automatic Vertical Packing Dry Fruit Mixed Nuts Sachet Packing Machine System

WORKFLOW

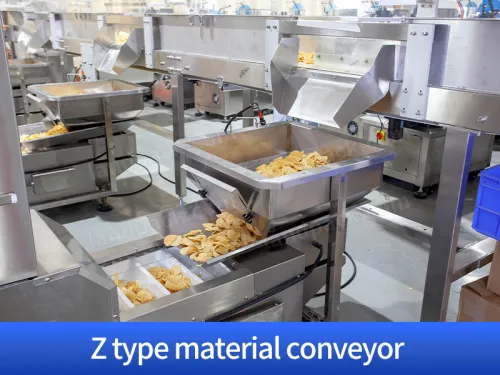

Z-Type Material Conveyor

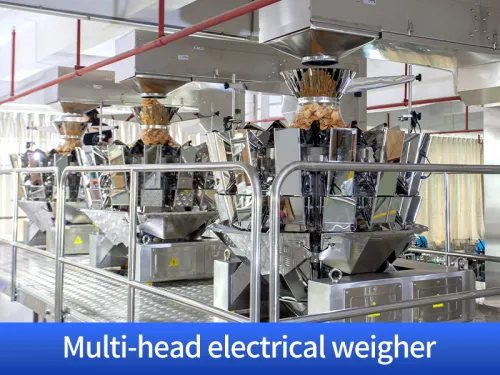

Multi-heads weigher

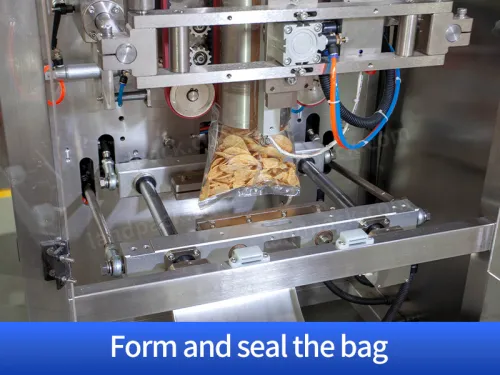

Bag Form Fill Seal

Finished Product Output

PARAMETER

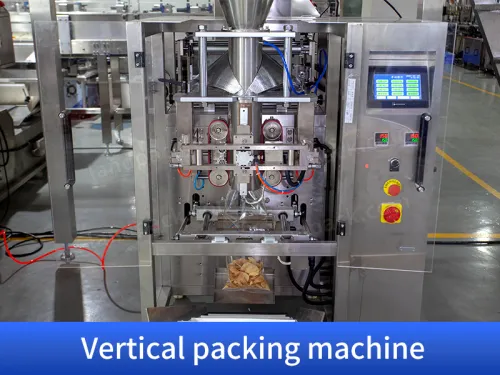

Automatic Vertical Packing System
Model	LD-420C	LD-520C	LD-720C
Film Width	Max.420mm	Max.520mm	Max.720mm
Bag Length	80-300mm	80-350mm	100-500mm
Bag Width	60-200mm	100-250mm	180-350mm
Roll Diameter	Max.320mm	Max.320mm	Max.320mm
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Measuring Range	150-1500ml	2000ml	4000ml
Packing Speed	5-60bag/min	5-60bag/min	5-55bag/min
Power	220V 50/60Hz 2KW	220V 50/60Hz 3KW	220V 50/60Hz 3KW
Machine Size(LWH)	121710151343mm	148810801490mm	178013502050mm
Machine Weight	About 650kg	About 680kg	About 750kg
Option Device	1.Date Printing, 2.Hole Punching Device(Pinhole, Round hole, the butterfly hole) 3.Air-filling Device, 4.Tear Notch Device
Option Device
